• Model NO.：EBW
• Working Style：Centrifugal
• Disc Diameter：180mm
• Variable Speed：With Variable Speed
• Application Industry：Offset Printing Ink, Inks, Paints, Dope
• Grinding Medium：Pure Zirconia Ball
• Usage：Industrial
• Product Type：Liquid and Powder
• Bearing：NSK
• Motor：Siemens
• Feeding Pump：Diaphragm Pump Ingersoll Rand
• Shaft Sealing：German Burgmann Mechanical Seal, Bear Pressure Hig
• O-Ring：DuPont
• Transport Package：Wooden Case
• Specification：EBW-5------EBW-1000
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：200-2000L

Basic Info.

Model NO. EBW Working Style Centrifugal Disc Diameter 180mm Variable Speed With Variable Speed Application Industry Offset Printing Ink, Inks, Paints, Dope Grinding Medium Pure Zirconia Ball Usage Industrial Product Type Liquid and Powder Bearing NSK Motor Siemens Feeding Pump Diaphragm Pump Ingersoll Rand Shaft Sealing German Burgmann Mechanical Seal, Bear Pressure Hig O-Ring DuPont Transport Package Wooden Case Specification EBW-5------EBW-1000 Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 200-2000L

Product Description

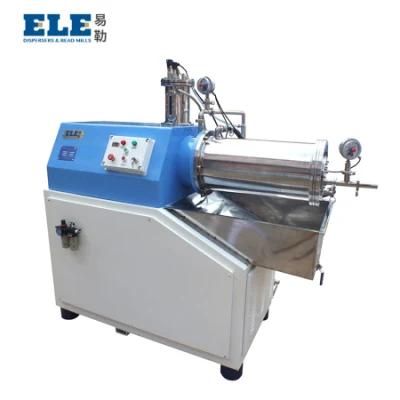

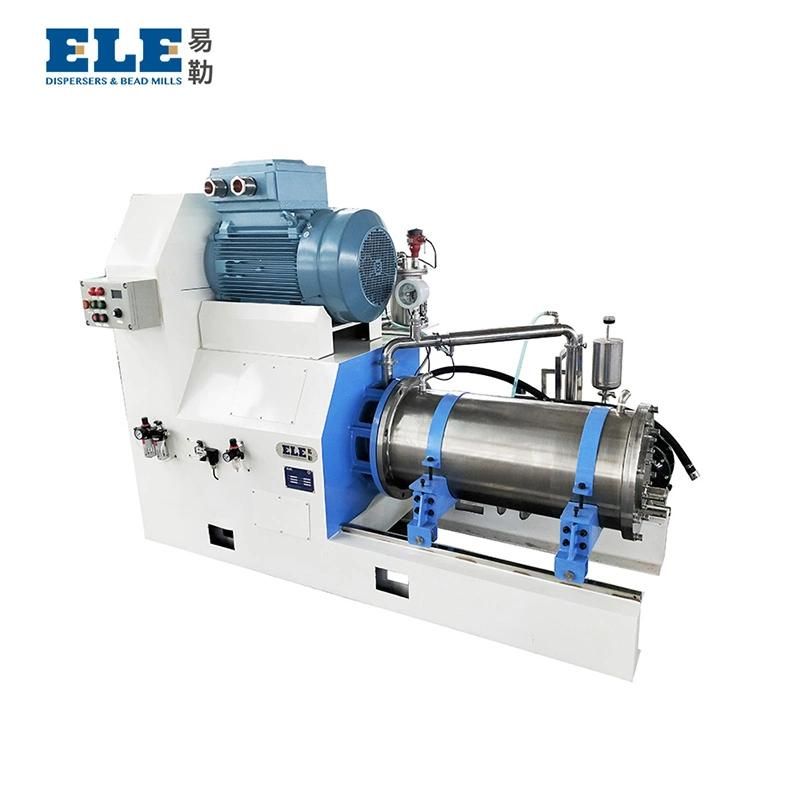

Disc type horizontal bead mill

 Model:EBW Series

Introduction:

1. ELE horizontal pearl mill cooperates with Switzerland technology, with advanced structure, high efficiency, nanometer and micron final fineness. It is widely used in the industry production of paint, color paste, printing ink, papermaking, adhesive, drugs, chemical industry etc.
2. It adopts specially wear-resisting materials, prolonging service life, and well adopted to different viscosity of materials.

Features:

1. ELE horizontal pearl mill cooperates with Switzerland technology, with advanced structure, high efficiency, nanometer and micron final fineness. It is widely used in the industry production of paint, color paste, printing ink, papermaking, adhesive, drugs, chemical industry etc.
2. It adopts specially wear-resisting materials, prolonging service life, and well adopted to different viscosity of materials

Specification:

Model	Chamber volume(L)	power (KW)	Flow(L/H)	Dimension(mm)	Weight(kgs)
EBW-5	5	7.5	50-200	1200×900×1550	400
EBW-20	20	22	100-300	1850×1050×1750	900
EBW-30	30	30	200-500	2100×1100×1900	1200
EBW-50	50	45	300-800	2300×1350×1700	1800
EBW-100	100	55	500-1500	2500×1400×1800	2500
EBW-200	200	90	1000-2500	4500×1550×1900	3500
EBW-300	300	132	2000-4000	4500×1600×2300	7600
EBW-500	500	160	3000-8000	4500×1600×2500	8200
EBW-1000	1000	350	4000-15000	5500×1800×3200	12500

Advantages :
Special Feeding System:
Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer tank

Discharging System: New technology of Discharge method
Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads

Special Mechanical Seal & Bearing Housing:

1. Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;
2. Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.

Cooling system:

1. High efficiency large area spiral ribbon type jacket water circulation chamber wall cooling
2. Feeding pipe wi th jacket for cooling
3. End cover corrugated cooling
4. Cooling Tank for Mechanical Seal

Application:
Coating: Water-based coating, Solvent-based coating, Decorative Coating, Latex paint;
Paint: Car Paint, Finish paint, Wood paint, Industrial paint;
Ink: Gravure Printing ink, Flexographic ink, Offset printing ink, Silk screen ink, UV light solid ink, Digital inkjet ink etc;
Pigment: Dye, Color painted pigment, Pen liquid,Watercolor;
Electronic Materials: Battery diaphragm alumina, Lithium iron phosphate, Ceramic slurry, Flame retardant;
Food Industry: Chocolate Syrup, Paste etc;
Pesticide: Pesticide suspension, EC, EW, ME;
Daily Chemical Industry: Cosmetics, Liquid soap, Shower gel, Liquid detergent etc;
Biological Medicine: Algae cell fragmentation, Micro-biological functional materials;
Nano Materials: metal oxide, Magnetic Materials, Paper industry, Optoelectronic industry.

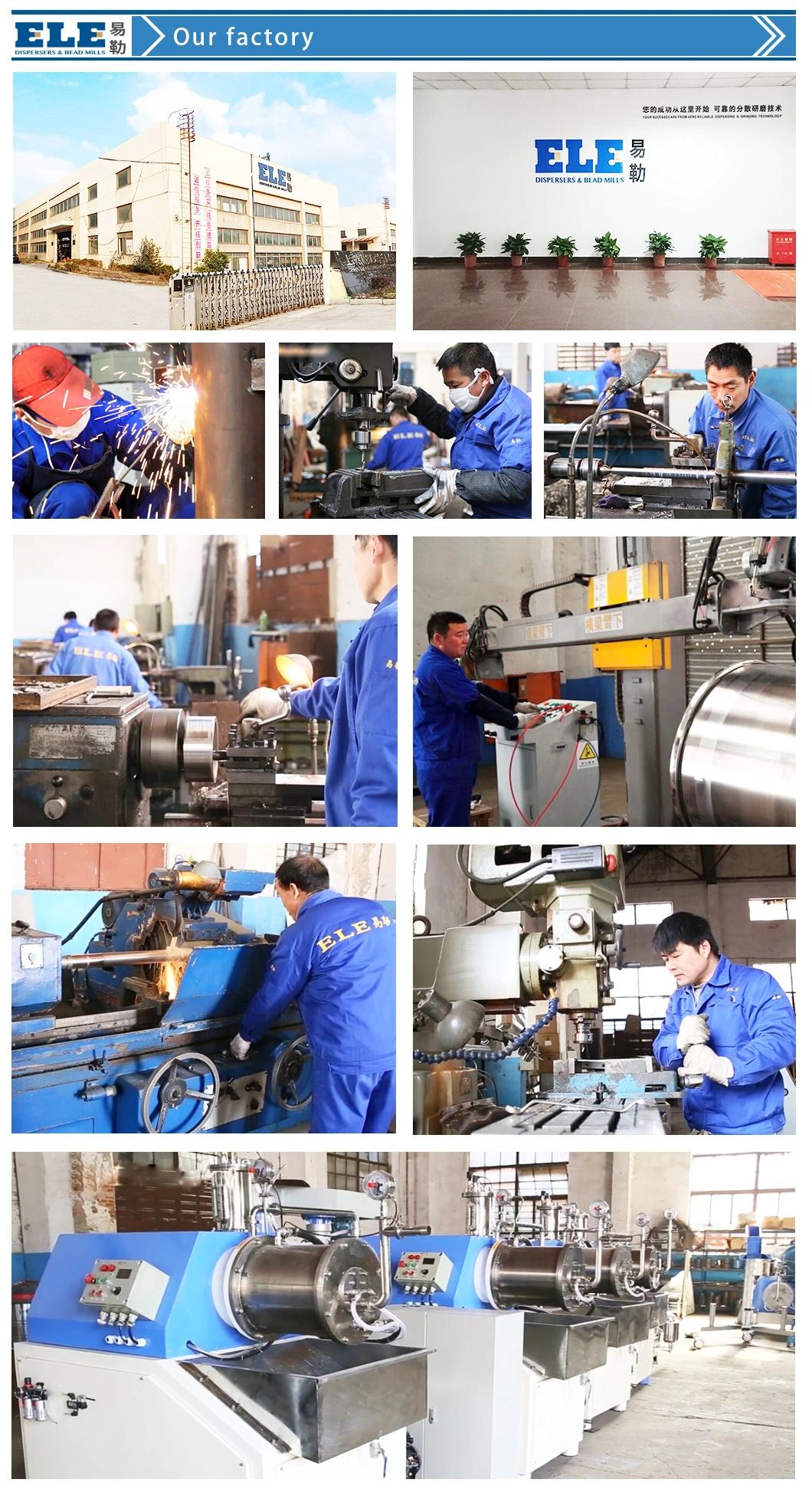

Professional technical supports & Processing Machines :
Our engineers are around 20years rich experience in this area, professional skills and stable processing.
We have lathes, grinder, drilling machine, boring machine, polishing machine, milling machine…etc.



MAINTENANCE & SERVICES
1.Before order, customer can take materials to ourvlab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;
2.We provide you opeatian manual by chinese or English;
3.We offer you Videos for equipment installation and maintenance in both English and Chinese;
4.With three years of spare parts inventory to ensure normal use and make you to be in trouble free;
5.Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;
6.After delivery, our professional engineer will offer on-site guidance debugging free of charge, according to different characteristic of materials, to set up the operational parameters of the mill and ensure optimal grinding quality & equipment running status;
7.After the warranty period, we provide maintenance and maintenance service, only charge
the cost;
8.Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service

Package & Delivery:




Exhibitions:

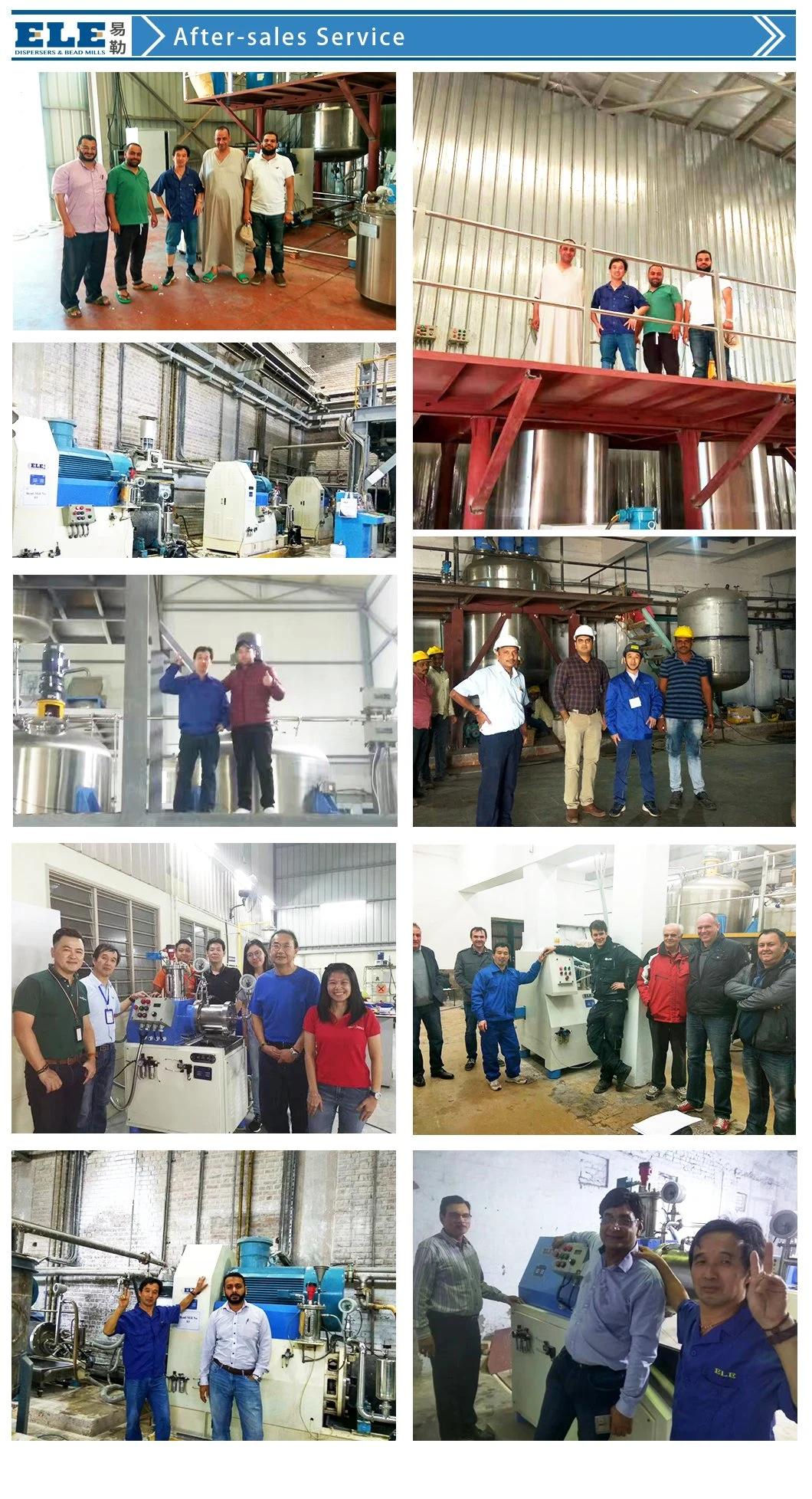

After-sales Service:
