0.7mm Stroke Air Lapping Grinder

Dongguan Kaibao Precision Machinery Co., Ltd.
  • Type:Air Lapping File
  • Power Source:Pneumatic
  • Application:Remove Burrs
  • Disc(Wheel) Type:File
  • Working Style:Reciprocating
  • Variable Speed:With Variable Speed

Base Info

  • Model NO.:TLL-07
  • Model No.:Tll-07
  • Stroke:0.7mm
  • Speed:28,000rpm
  • Weight:0.18kg
  • Length:196mm
  • Air Pressure Supply:0.63MPa
  • Air Cons:120nl,Min
  • Transport Package:Standard Package
  • Specification:CE, SGS, ISO
  • Origin:China
  • HS Code:8467110000
  • Production Capacity:200, 000PCS,Month


Basic Info.

Model NO. TLL-07 Model No. Tll-07 Stroke 0.7mm Speed 28,000rpm Weight 0.18kg Length 196mm Air Pressure Supply 0.63MPa Air Cons 120nl/Min Transport Package Standard Package Specification CE, SGS, ISO Origin China HS Code 8467110000 Production Capacity 200, 000PCS/Month

Product Description

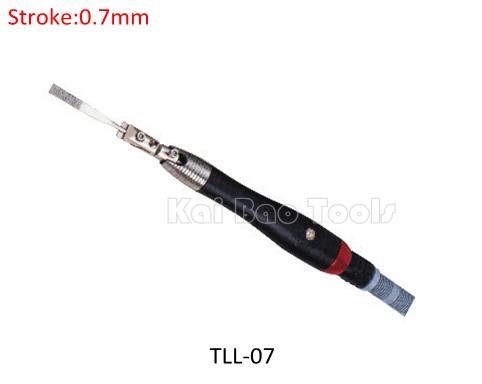

0.7mm Stroke Air Lapping Grinder
0.7mm Stroke Air Lapping Grinder0.7mm Stroke Air Lapping Grinder

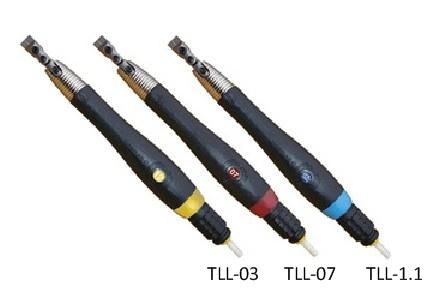

Model No.Free SpeedCollet SizeStrokeWeightLength
TLL-0.356,000 rpmScrew0.3mm0.18kg196mm
TLL-0.728,000 rpmScrew0.7mm0.18kg196mm
TLL-1.119,000 rpmScrew1.1mm0.18kg196mm

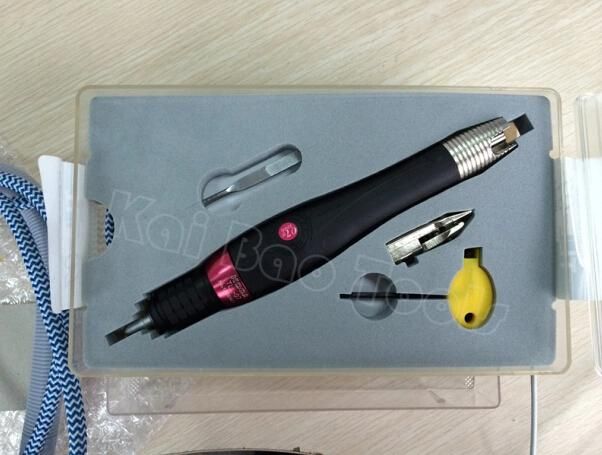

Packing of TLL-0.7
1) TTL-07:1pc
2) Wrench:1pc
3) Collet:2pcs
4) Diamond file:1pc
5) Over hose:1pc (0.4 meters)
6) Air Hose:1pc (1.2 meters)
7) Hose band:2pcs
