• Model NO.：chemshun pulley lagging ceramics
• Vickers Hardness (Hv5)：1000
• Fracture Toughness：3-4 MPa.M1,2
• Water Absorption：<0.01%
• Maximum Operation Temperature：1450 ºC
• Transport Package：Boxes+Pallets
• Specification：25x15x3mm
• Trademark：Chemshun
• Origin：China
• HS Code：69091200
• Production Capacity：5000 Tons,Year

Ceramic lining pieces size17.5*17.5*5mm19.95*19.95*4.5*0.6 with dimples17.5*17.5*4mm20*30*5 with 18 pieces dimples17.5*17.5*3mm20*20*4 with 13 pieces dimples20*20*4/5/6mm20*20*8mm with 8 pieces dimples20820*12/13mm 25*25*4mm Note: more customized size available

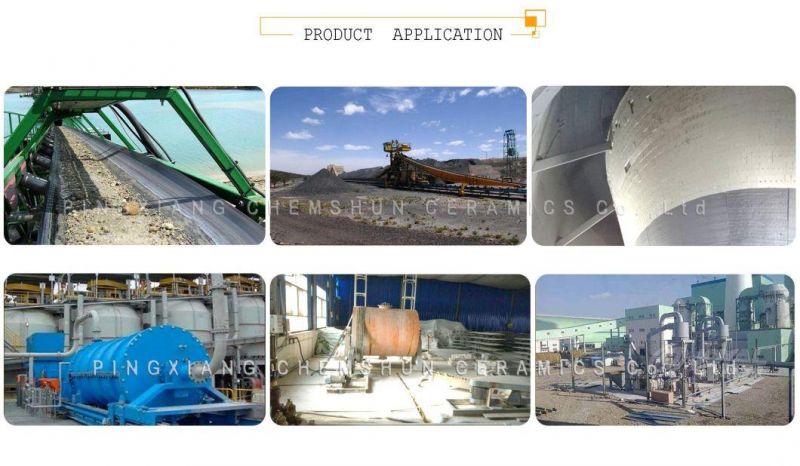

<<<<   Application industry:

--- Used to be a part of ceramic rubber plate for anti-wear and anti-impact lining.
--- Used as component of pulley lagging
--- Used as tile mats widely lining in conveying engineering to protect the belts in mining, power plant, steel plant and agriculture,etc

<<<< Aluminum oxide ceramic mosaic tile technical data:


S.No.	Attributes	Unit	CHEMSHUN 92 I	CHEMSHUN92 II
1	Alumina Content	%	92	92
2	Density	g/cc	≥3.60	≥3.60
3	Color	-	White	White
4	Water Absorption	%	<0.01	<0.01
5	Flexural Strength	Mpa	270	300
6	Moh's Density	Grade	9	9
7	Rock Well Hardness	HRA	80	85
8	Vickers Hardness(HV5)	Kg/mm2	1000	1150
9	Fracture Toughness (Min)	MPa.m1/2	3-4	3-4
10	Compressive strength	Mpa	850	850
11	Thermal Expansion Coefficient (25-1000ºC)	1x10-6/ºC	8.0	7.6
12	Maximum operation temperature	ºC	1450	1450
