• Model NO.：TVB(A)240
• Working Style：Shaking
• Disc Diameter：Customer
• Variable Speed：With Variable Speed
• Capacity：240 Liter
• Size：1880X880X920 mm
• PU Thickness：16mm
• PU Material：Dow Chemicals
• Weight：450 Kg
• Motor Power：1.1 X 2kw
• Dosing Pump：Andose
• Speed Control：Bosch Rexroth Variable Speed Converter
• Sound Cover：Airtec
• Transport Package：Wooden Box
• Specification：240L
• Trademark：Inovatec
• Origin：Huzhou, China
• HS Code：84639000
• Production Capacity：3000

Basic Info.

Model NO. TVB(A)240 Working Style Shaking Disc Diameter Customer Variable Speed With Variable Speed Capacity 240 Liter Size 1880X880X920 mm PU Thickness 16mm PU Material Dow Chemicals Weight 450 Kg Motor Power 1.1 X 2kw Dosing Pump Andose Speed Control Bosch Rexroth Variable Speed Converter Sound Cover Airtec Transport Package Wooden Box Specification 240L Trademark Inovatec Origin Huzhou, China HS Code 84639000 Production Capacity 3000

Product Description

Medres Vibracios Berendezesek Azert Kulonlegesek Mert Medres Kamrajuknak

Catalog Download
https://inovatecmachinery.en.made-in-china.com/Product-Catalogs/

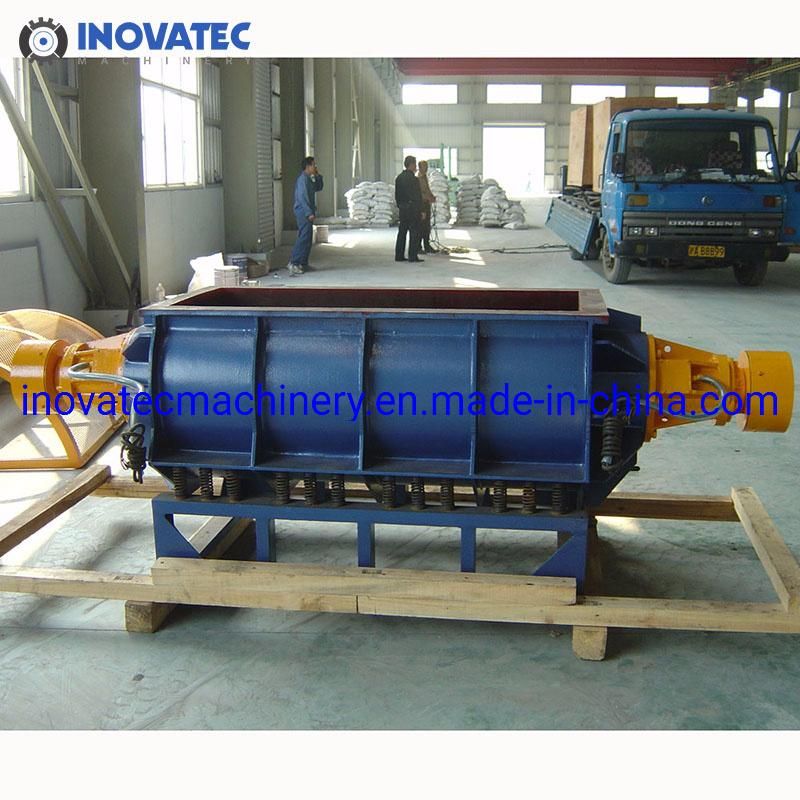

Trough Vibratory Tub Product Description:

Trough Vibratory Tub also called as rectangular vibratory finishing machines. TVB(A) series vibratory tubs are perfect for large and heavy parts vibratory tumbling, for example, ceramic coated headers, exhaust pipes, engine housing. In some applications, it also called Ceramic Polishing Machine.

This curved wall offers strengthened tumbling performance and reduces process time. In addition, the featured lining well suited for ball burnishing process. TVB(A) model features heavy gauge all welded steel construction.




Application includes: tumble deburring plastic , tumble finishing , barrel finishing

Trough Vibratory Tub Feature:

• Digital process timer
• Low profile design
• Wide opening for big size parts
• Stress relieved and enhanced with blasting
• Default manual parts media separation
• Extended separation deck
• Wear resistant PU lining from Dow Chemicals

Trough Vibratory Tub Optional setting:

• Optional Items
• Sound Cover
• Compound Dosing Pump
• Pneumatic flap control
• Variable Frequency Drives
• Control box standing on the floor or hang on the wall

Trough Vibratory Tub Technical Drawing:






Technical Data:

Trough Vibratory Tub	TVB(A)240	TVB(A)500	TVB(A)750
Total volume(L)	240	500	750
Max overall dimension LXWXH (mm)	1880×880×920	2870×880×920	3354×880×920
Chamber length  C (mm)	690	1310	2000
Chamber height  B (mm)	625	625	625
Chamber diameter  A (mm)	670	670	670
Feeding entry width  W (mm)	524	524	524
PU Lining thickness(mm)	16	16	16
Power(km)	1.1×2	2.2×2	2.2×2
Weight(kg)	450	1000	1600

Product info:


A medres berendezesek azert kulonlegesek, mert a medres kamrajuknak koszonhetoenkulonbozo formajues hosszu elemek munkalhatoak meg, amelyek meretuknel fogva nem fernek el a dobbal rendelkezo gepekben. A berendezes zsirtalanitashoz, sorjazashoz es durva illetve finom csiszolashoz egyarant hasznalhato.  A mukodes alapjat az ellensulyos motor altal generalt mechanikus rezgesek kepezik. A vibralo mozgasu munkakamra interakcioba hozza az elemeket a toltott tartalommal.  Jellemzojukbol kifolyolag ezek a gepek a durva megmunkalashoz alkalmasak, foleg nagy surlodasu keramia segedanyagokkal hasznalva.Az eredmeny egy egyseges, eles szelektol es sarkoktol mentes struktura. A medres vibracios berendezesek, melyeket „sorjazogepeknek is neveznek”, kepesek nehany perc alatt eltavolitani az elem felesleges reszeit. Ugyanakkor a felulet simitasa nem tobb, mint nehany oraig tart.  A medres berendezesek  hatekonyan eltavolitjak a sorjakat es tompitjak azeleket, megszuntetik a felulet kozeli retegeket - az oxidalt reszeket lezeres vagas utan vagy a felszinen osszegyult zsiradekot. Mindenekelott olyan elemek reszere keszultek, ahol nagy a megmunkalando felesleg, a fo cel a sorjazas. Nagyszeruen boldogulnak a csiszolo simitassal is, ahol a lenyeg a felulet erdesse tetele. Tokeletesen alkalmasak sokfele formaju elemek tomeges megmunkalasahoz, a megfelelo parameterek mellett - pedig lapos elemeket is kepesek megmunkalni, ahol osszeragadas (un. osszepreseles) vagy a munkatartaly falahoz valo tapadas lephet fel.  Csiszolo kozegkent foleg keramia es gyanta segedanyagok hasznalhatoak. A technologiai folyamatot egy megfelelosegedfolyadek  mely hatekonyabba teszi a muveletet

Surface Finishing Metal Deburring Company introduction:




Vibratory Finishing Equipment Optional settings:

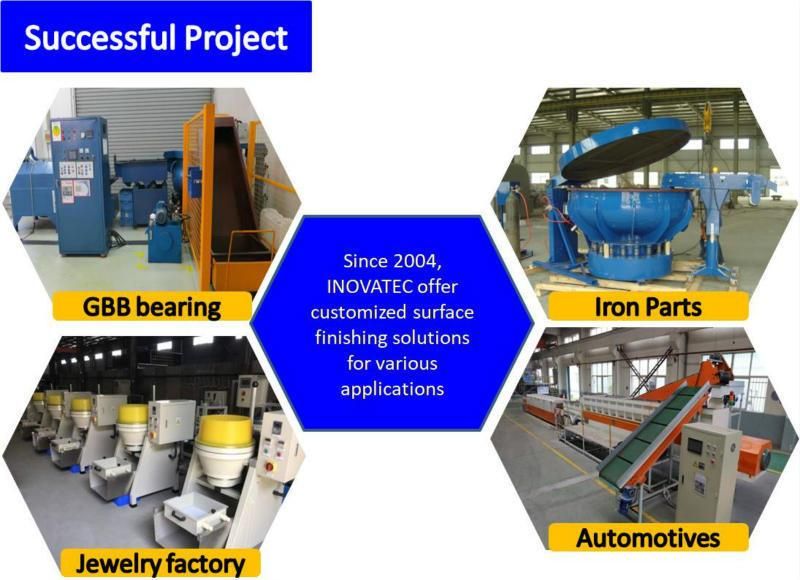

Vibro deburring Polishing Tumbling Successful Project:

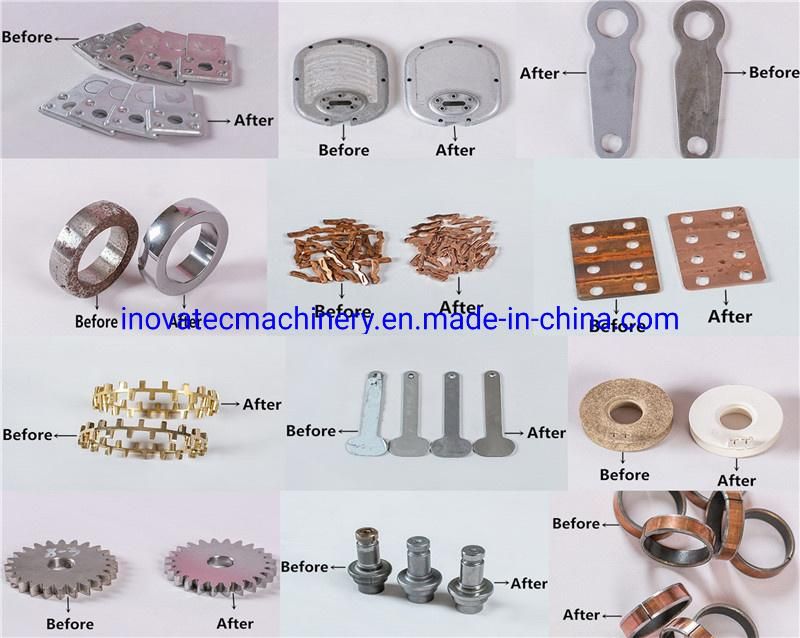

Parts before and after vibratory polishing, vibratory deburring, cleaning, edge rounding, descaling, degreasing, de-oiling, cleaning, edge breaking,radiusing:



Mass Finishing Equipment and Tumbling Media Packing and shipment:




Payment:




FAQ:

Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty

Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.

Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.

Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.

Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).

Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media

Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound

Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week

Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep

Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
