Automatic Glass Edge/Edging Grinding and Polishing Processing Machine
Qingdao Toyo Industry Co., Ltd.- Type：Angle Grinder
- Power Source：Electricity
- Object：Milling Cutter
- Application：Glass Grinding Machine
- Disc(Wheel) Type：Grinding Disc
- Material：Metal and Steel
Base Info
- Working Style：High-speed universal
- Disc Diameter：Customized
- Variable Speed：Without Variable Speed
- Power：13kw
- Minimum Processing Size：40*40mm
- Weight：2000kgs
- Processing Glass Thickness：3-25mm
- Speed：0-4m,Min
- Transport Package：Container
- Specification：4100*950*1900mm
- Trademark：Toyo
- Origin：China
- HS Code：8464201000
- Production Capacity：10000pieces,Year
Description
Horizontal Straight Edge Grinding MachineTechnical Parameters TYTC-G7 TYTC-G8 Dimensions 3400*1000*1730mm 3400*1000*1730mm Net Weight 2000kg 2100kg Glass Processing Thickness 3-25mm 3-25mm Chamfer Angle 45-degree 45-degree Mini Glass Size 40*40mm 40*40mm Max Glass Size 1600*1600 1600*1600 Max Glass Size with Extension Tables 2440*3000 2440*3000 Speed 0-4m/min 0-4m/min Voltage 380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase 380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase Power 13kw 14.5kw Number of the Motor Head 7 8

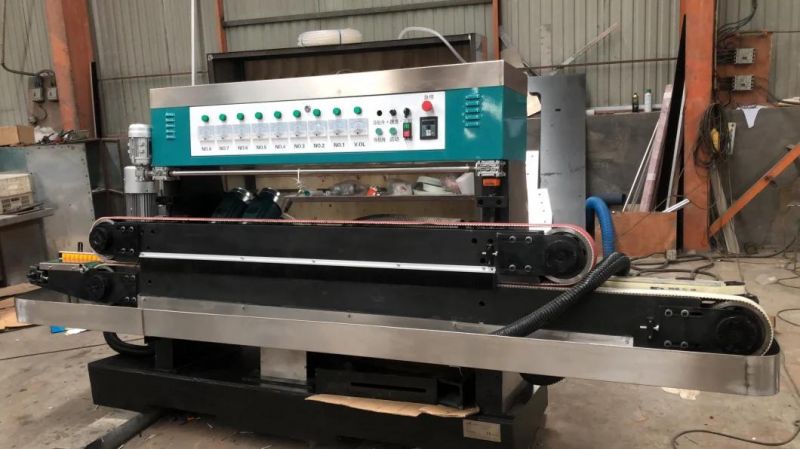

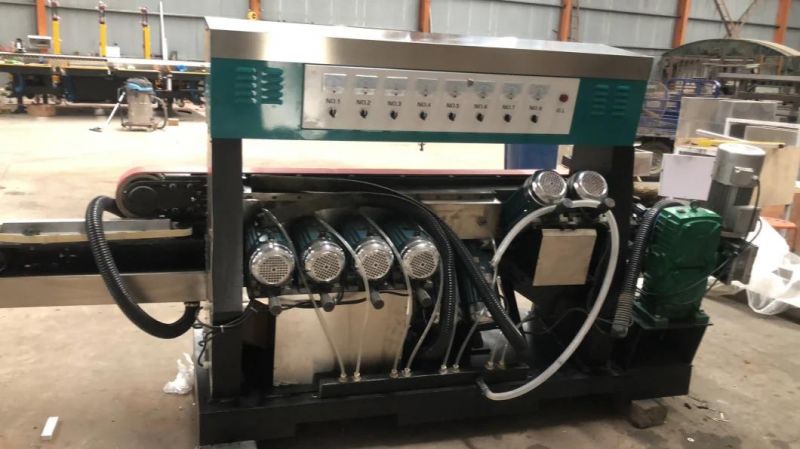

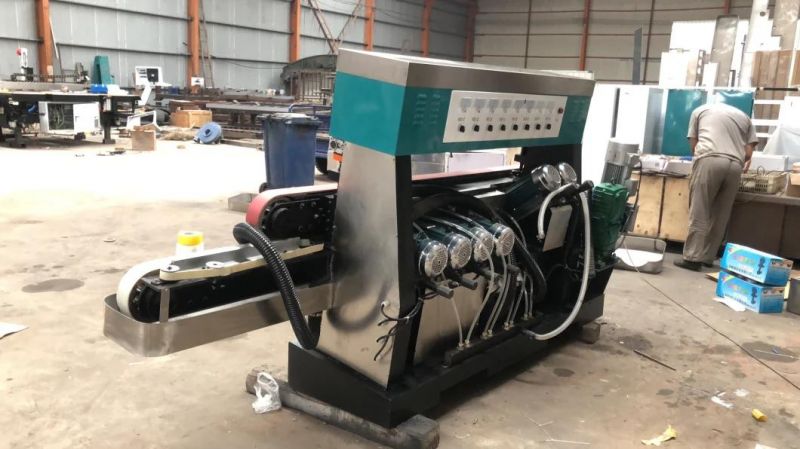

Pictures Showing
Company IntroductionFounded by two metal equipment industry-leading companies in 2017, Qingdao TOYO Industry Co., Ltd is specialized in developing the glass machine supplying business.
Both our parent companies have more than 20 years of experience in the glass machine manufacturing industry, with excellent production capacity and outstanding quality control. Our factories cover a total area of 128, 608 square meters, with 500 technical staff, as well as 60 research and development engineers.
Our mission is to provide"more reasonable price with the same quality, and same price with higher quality".
Waiting for your inquiry.
A better machine to empower you.
