• Model NO.：CS12-35
• Type：High-Alumina
• Feature：High Hardness,High Density
• Application：Ball Mill, Pot Mill, Librating Mill
• Field：Ceramic,Metallurgy, Glass, Porcelain, Enamel
• Mosh Hardness：8-9 Grade
• OEM：Accept
• Transport Package：by Bags, Then Fasten on Pallet
• Specification：D3-70mm
• Trademark：pingxiang chemshun ceramics
• Origin：China
• HS Code：69091200
• Production Capacity：25000ton Per Year

Basic Info.

Model NO. CS12-35 Type High-Alumina Feature High Hardness,High Density Application Ball Mill, Pot Mill, Librating Mill Field Ceramic,Metallurgy, Glass, Porcelain, Enamel Mosh Hardness 8-9 Grade OEM Accept Transport Package by Bags, Then Fasten on Pallet Specification D3-70mm Trademark pingxiang chemshun ceramics Origin China HS Code 69091200 Production Capacity 25000ton Per Year

Product Description

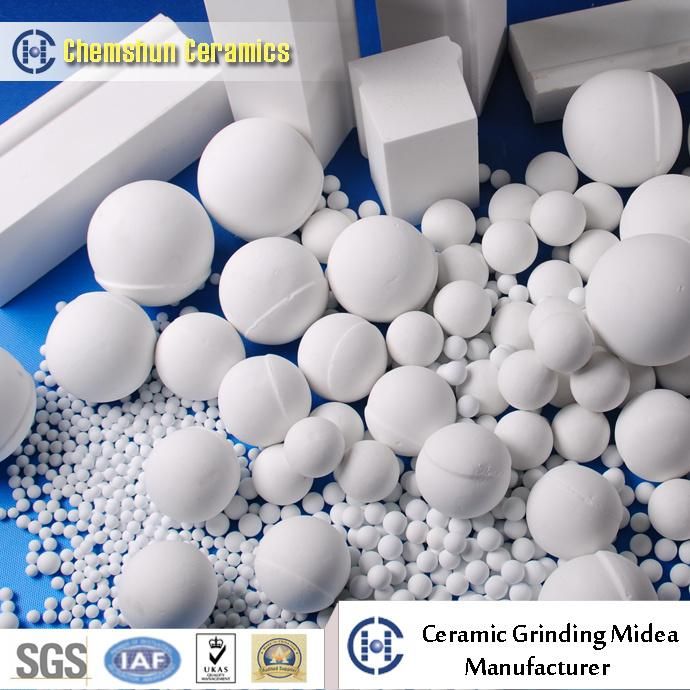

95% Alumina Oxide Ceramic Ball for Sanitary Ware Grinding

This product are featured by high density and hardness, low wear lost, corrosion-resistance etc. They are the perfect high-efficient grinding media for milling glaze/frit, pigment, ceramic materials, and various mine ore powder, they are using ceramics, cements, paints, refractories, inorganic mineral powders etc...

Applied for dry grinding, wet grinding, mineral grinding, quartz grinding, lineston grinding, iron ore grinding, cement grinding, ceramics plants grinding, pigment grinding, mineral ore grinding, breaking platns.

Applied for ball mill, grinding machine, pot mill, librating mill, pebble mill, Attrition Mill, rod mill, grinding mill, grinding machine, ball grinding mill


Size: 1mm, 3mm, 6mm, 9mm, 13mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 95mm

1: 92% Alumina content series

A) Al2O3 ≥ 92%
B) Water absorption <0.01%
C) Bulk density ≥ 3.63 g/cm3
D) Mosh hardness: 9
E) Color: White

2: 95% High-alumina grinding ball

A) Al2O3 ≥ 95% Sio2<3.8%, others: ~3%
B) Water absorption <0.01%
C) Bulk density ≥ 3.7 g/cm3
D) Mosh hardness: 9
E) Color: White
F) self abrasion loss: <0.008%

3: 68% Medium alumina grinding ball series:

A) Al2O3: 65%~75%
B) Bulk density ≥ 2.93g/cm3
C) Mosh hardness : 8 grade
D) self abrasion loss: 0.01
E) Color: White or brown

Items	Proportion	Items	Proportion
Al2O3	92%	SiO2	<6.5%
others	~2%


  Physical Analysis:

Items	Proportion	Items	Proportion
Hardness: Mohr's	9	self Abrasion Loss (24hour)	<0.01%
Density(g/cm3)	3.6g/cm3	Water Absorption	<0.01%

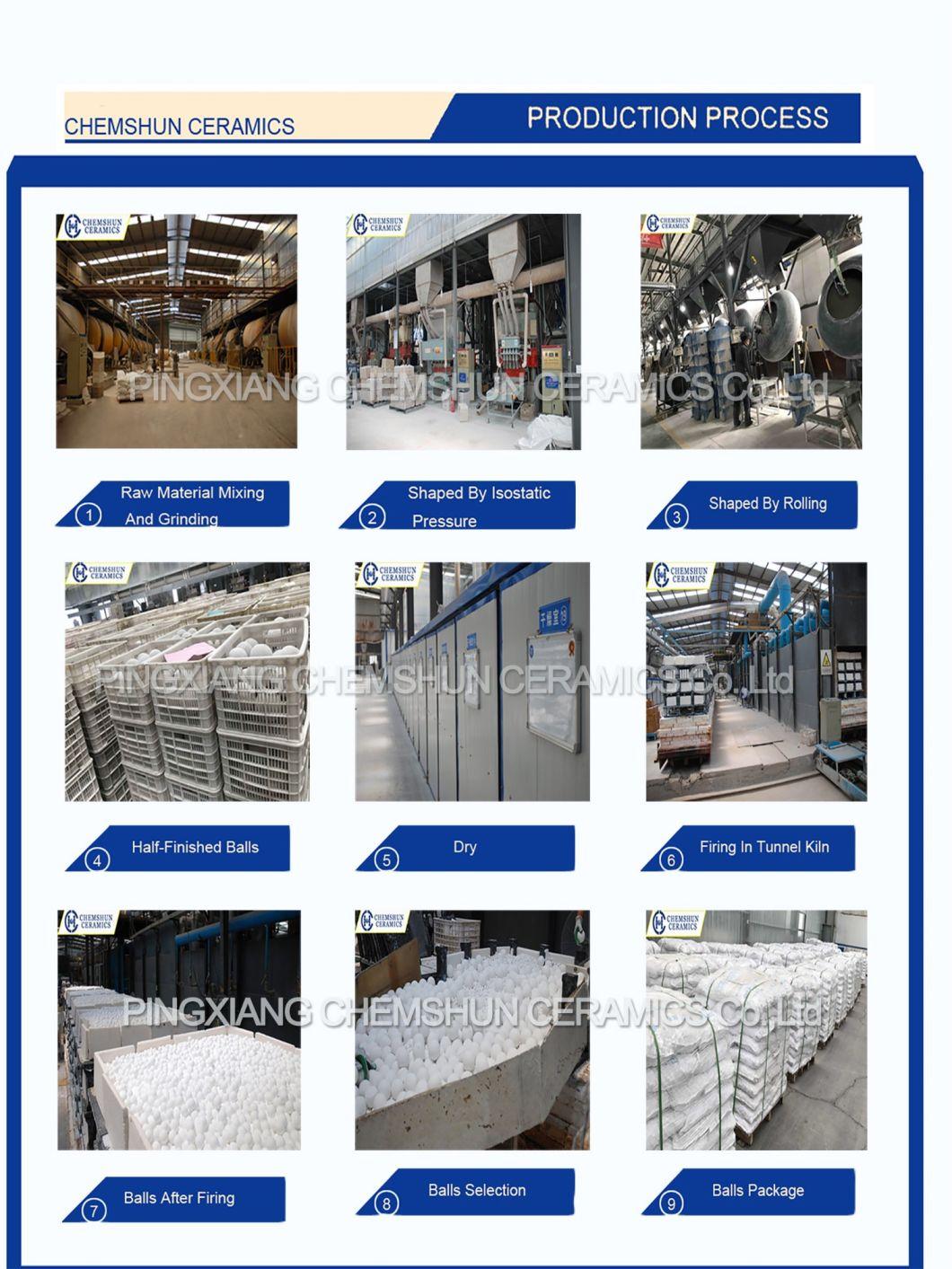

Color	White	Ball method	By cool isostatic-pressing Or by rolling
