• Model NO.：VA
• Working Style：Shaking
• Disc Diameter：Customer
• Variable Speed：With Variable Speed
• Capacity：36L
• Size：90 X 800 X 1440 mm
• Weight：260 Kg
• Motor Power：2.2 Kw
• Electricity：380 V, 50-60 Hz
• Parts Available：30mm
• Speed：0-400 Rpm
• Motor Speed：1430 Rpm
• Processing：Wet or Dry
• Speed Control：Variable Frequency Drive
• Discharge：Manual Unloading
• Transport Package：Wooden Box
• Specification：36L
• Trademark：Inovatec
• Origin：Huzhou, China
• HS Code：84639000
• Production Capacity：3000

Basic Info.

Model NO. VA Working Style Shaking Disc Diameter Customer Variable Speed With Variable Speed Capacity 36L Size 90 X 800 X 1440 mm Weight 260 Kg Motor Power 2.2 Kw Electricity 380 V/ 50-60 Hz Parts Available 30mm Speed 0-400 Rpm Motor Speed 1430 Rpm Processing Wet or Dry Speed Control Variable Frequency Drive Discharge Manual Unloading Transport Package Wooden Box Specification 36L Trademark Inovatec Origin Huzhou, China HS Code 84639000 Production Capacity 3000

Product Description

20L 38L 50L Centrifugal disc finishing machine
Catalog Download
https://inovatecmachinery.en.made-in-china.com/Product-Catalogs/

Centrifugal Disc Finisher Product Description:

Centrifugal Disc Finisher VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a lot finishing job in a short time.

Centrifugal Disc Finisher VA series Gyrate polishing machine is a high energy mass finishing machine. It can accomplish quite a lot finishing job in a short time. In addition, VA series machines significantly reduce material handling and manual involvement in metal finishing.

VA9, VA20, and VA38 series gyrate polishing machine adopt patent small gap (about 0.05-0.1mm) design. Therefore we can polish very thin parts like earring and pendants. This user-friendly feature made it possible to polish complicated and thin workpiece.

The application includes silver polishing, watch parts polishing, amber polishing etc.

Centrifugal Disc Finisher Feature:

• Digital timer control
• Adjustable speed control
• Forward and backward tumbling
• 4 barrels with removable PU insert
• Automatic media & parts discharge

Centrifugal Disc Finisher Application:

• Small size delicate parts
• Jewelry parts
• Medical device
• Dental parts
• Aerospace engine blade
• Acrylic and rubber parts

Centrifugal Disc Finisher Technical Drawing:





Centrifugal Disc Finisher Technical Data:

Centrifugal Disc Finisher	VA 9	VA 2x9	VA 3x9	VA 18	VA 2x18	VA 3x18	VA 36	VA 2x36	VA 3x36
Total capacity	9L	2*9L	3*9L	18L	2*18L	3*18L	36L	2*36L	3*36L
Maximal wokpiece (maximal)	20 mm	20 mm	20 mm	25 mm	25 mm	25 mm	30 mm	30 mm	30 mm
Barrel speed	0-450 rpm	0-450 rpm	0-450 rpm	0-450 rpm	0-450 rpm	0-450 rpm	0-400 rpm	0-400 rpm	0-400 rpm
Voltage	220 V/ 50-60 Hz	220 V/ 50-60	220 V/ 50-60 Hz	220 V/ 50-60 Hz	220 V/ 50-60 Hz	220 V/ 50-60 Hz	380 V/ 50-60 Hz	380 V/ 50-60 Hz	380 V/ 50-60 Hz
Power	0.37	2x0.37	3x0.37	0.75	2x0.75	3x0.75	2.2	2x2.20	3x2.20
	kw	kw	kw	kw	kw	kw	kw	kw	kw
Motor speed	1340 rpm	1340 rpm	1340	1380 rpm	1380 rpm	1380 rpm	1430 rpm	1430 rpm	1430 rpm
Dimensions	606 x 660 x 1220	972 x 660 x 1220	1410 x 660 x 1220	700 x 790 x 1440	1160 x 790 x 1440	1690 x 790 x 1440	890 x 800 x 1440	1490 x 800 x 1440	2130 x 800 x 1440
Weight	100kg	160kg	220kg	140kg	235kg	330kg	220kg	370kg	530kg

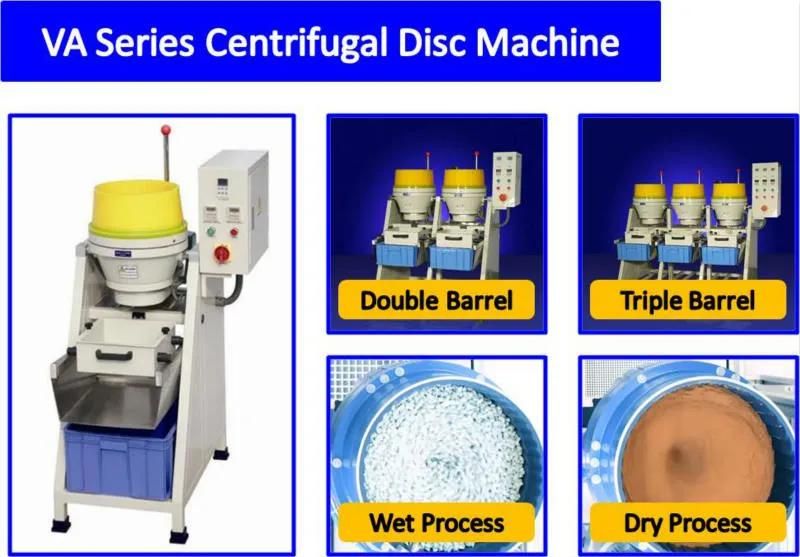

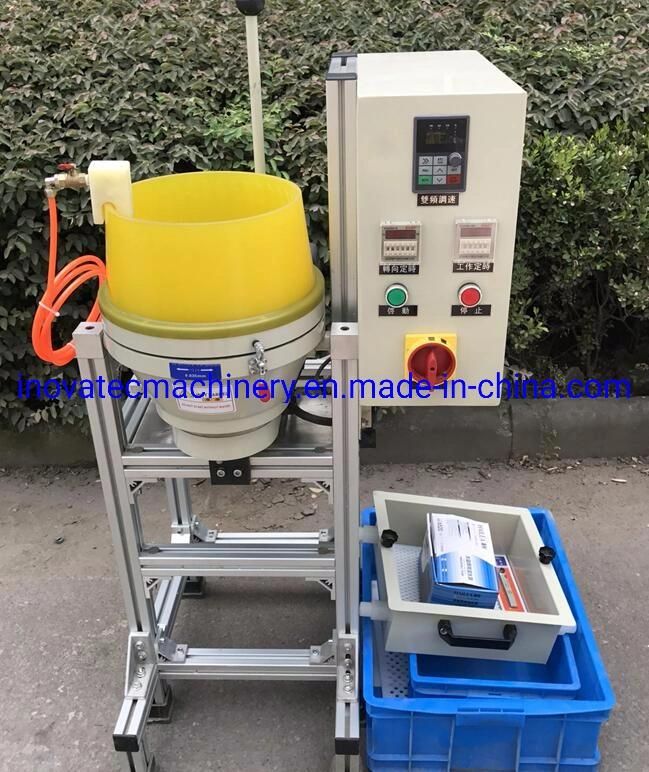

Centrifugal Disc Finisher Product Photo:

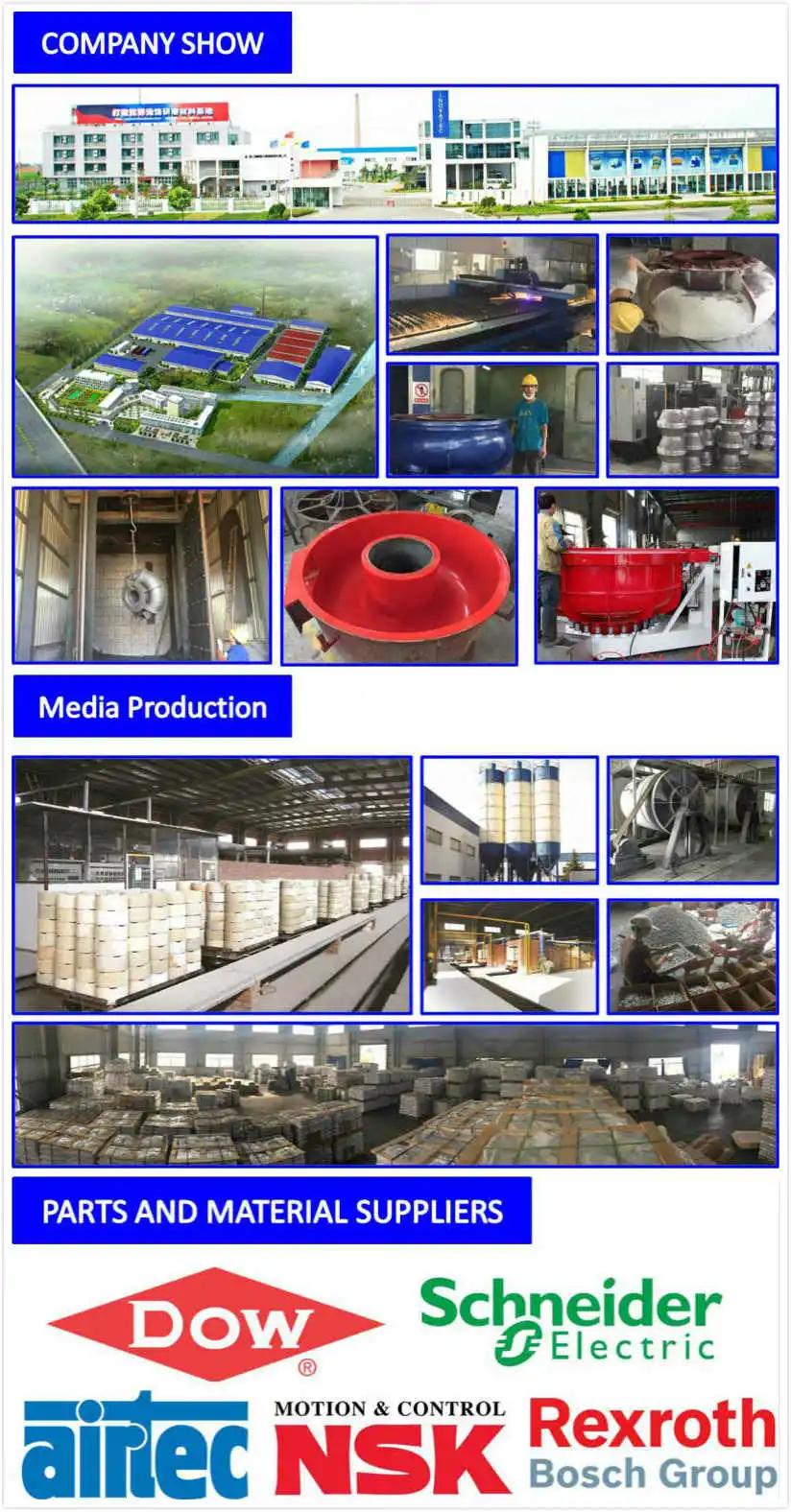

Metal Surface Deburring and Polishing Company introduction:

Vibratory Finishing Equipment Optional settings:

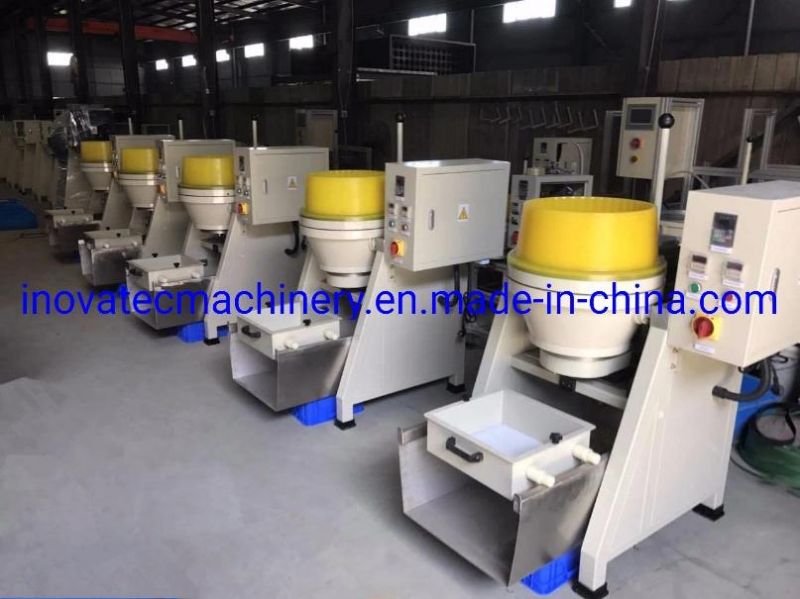

Centrifugal disc finishing polishing deburring Successful Project:

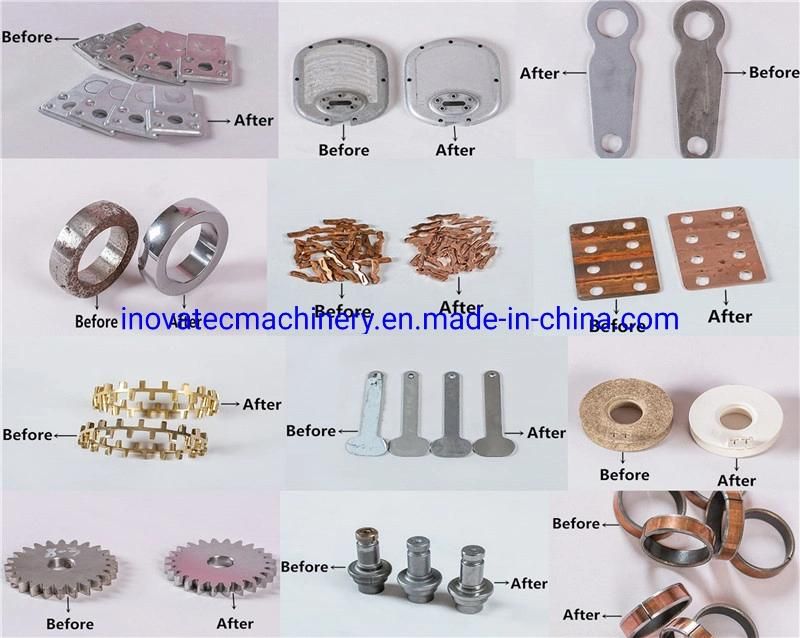

Parts before and after vibratory polishing, vibratory deburring, cleaning, edge rounding, descaling, degreasing, de-oiling, cleaning, edge breaking,radiusing:



Mass Finishing Machine and Media Packing and shipment:




Payment:




FAQ:

Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty

Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.

Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.

Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.

Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).

Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media

Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound

Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week

Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep

Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
