Horizontal Type Glass Edging Machine Series Glass Straight Edge Polishing Machine Glass Grinding Machine with CE
Qingdao Toyo Industry Co., Ltd.- Type：Angle Grinder
- Power Source：Electricity
- Object：Milling Cutter
- Application：Glass Grinding Machine
- Disc(Wheel) Type：Grinding Disc
- Material：Metal and Steel
Base Info
- Working Style：High-speed universal
- Disc Diameter：Customized
- Variable Speed：Without Variable Speed
- Power：13kw
- Minimum Processing Size：40*40mm
- Maximum Processing Size：1600*1600 mm
- Processing Angle：45 Degrees
- Max Glass Size for Processing (with Auxi：2440*2000mm
- Weight：2000kgs
- Processing Glass Thickness：3-25mm
- Speed：0-4m,Min
- Measurement：3400*1000*1730mm
- Transport Package：Container
- Specification：4100*950*1900mm
- Trademark：Toyo
- Origin：China
- HS Code：8464201000
- Production Capacity：10000pieces,Year
Description
Horizontal Straight Edge Grinding Machine
Technical Parameters
TYTC-G7
TYTC-G8
Dimensions
3400*1000*1730mm
3400*1000*1730mm
Net Weight
2000kg
2100kg
Glass Processing Thickness
3-19mm
3-19mm
Chamfer Angle
45-degree
45-degree
Mini Glass Size
40*40mm
40*40mm
Max Glass Size
1600*1600
1600*1600
Max Glass Size with Extension Tables
2440*3000
2440*3000
Speed
0-4m/min
0-4m/min
Voltage
380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase
380V, 50HZ, 3 Phrase
220V, 60HZ, 3 Phrase
Power
13kw
14.5kw
Number of the Motor Head
7
8
Motor Heads

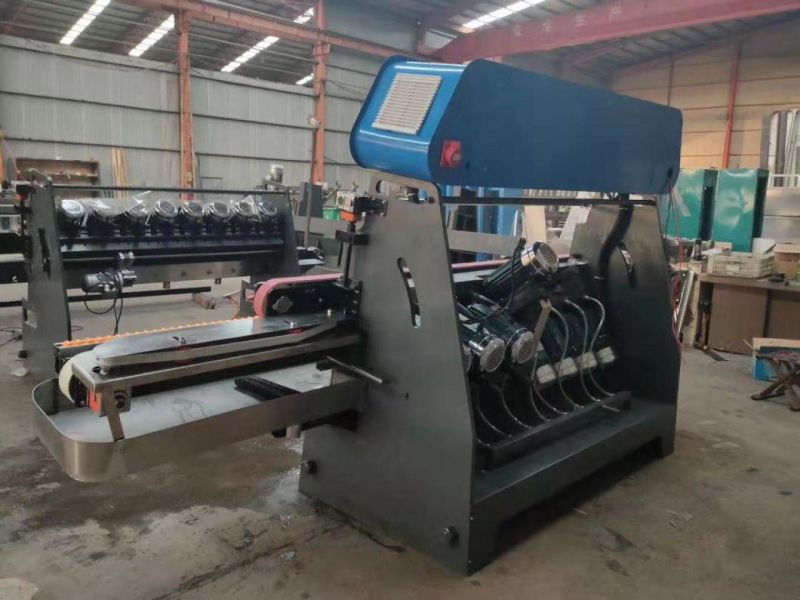

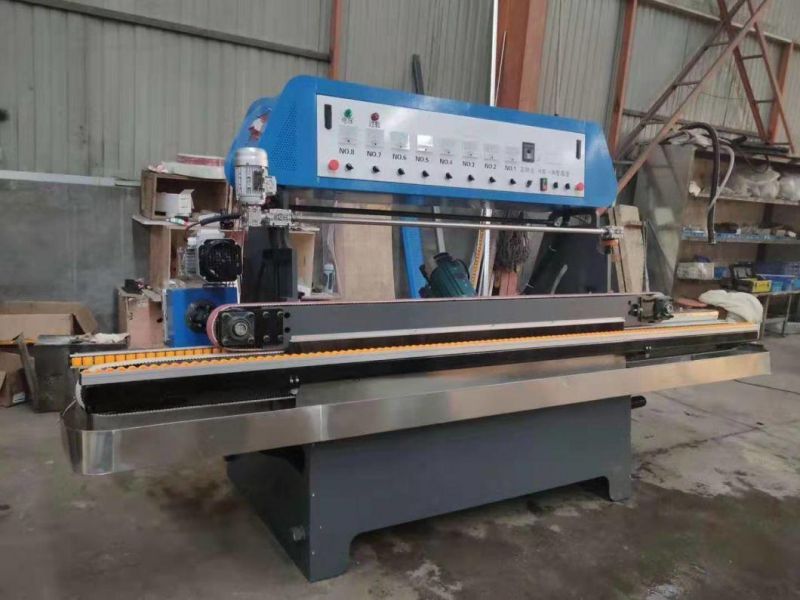

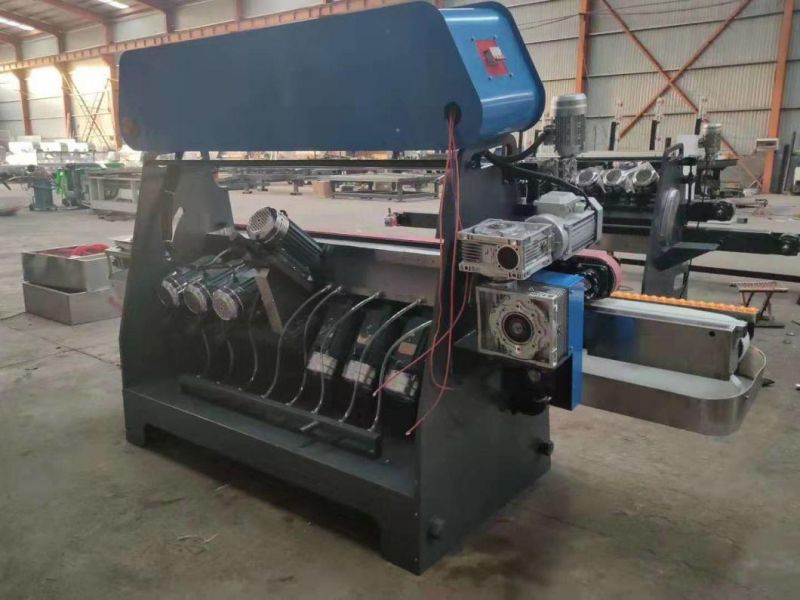

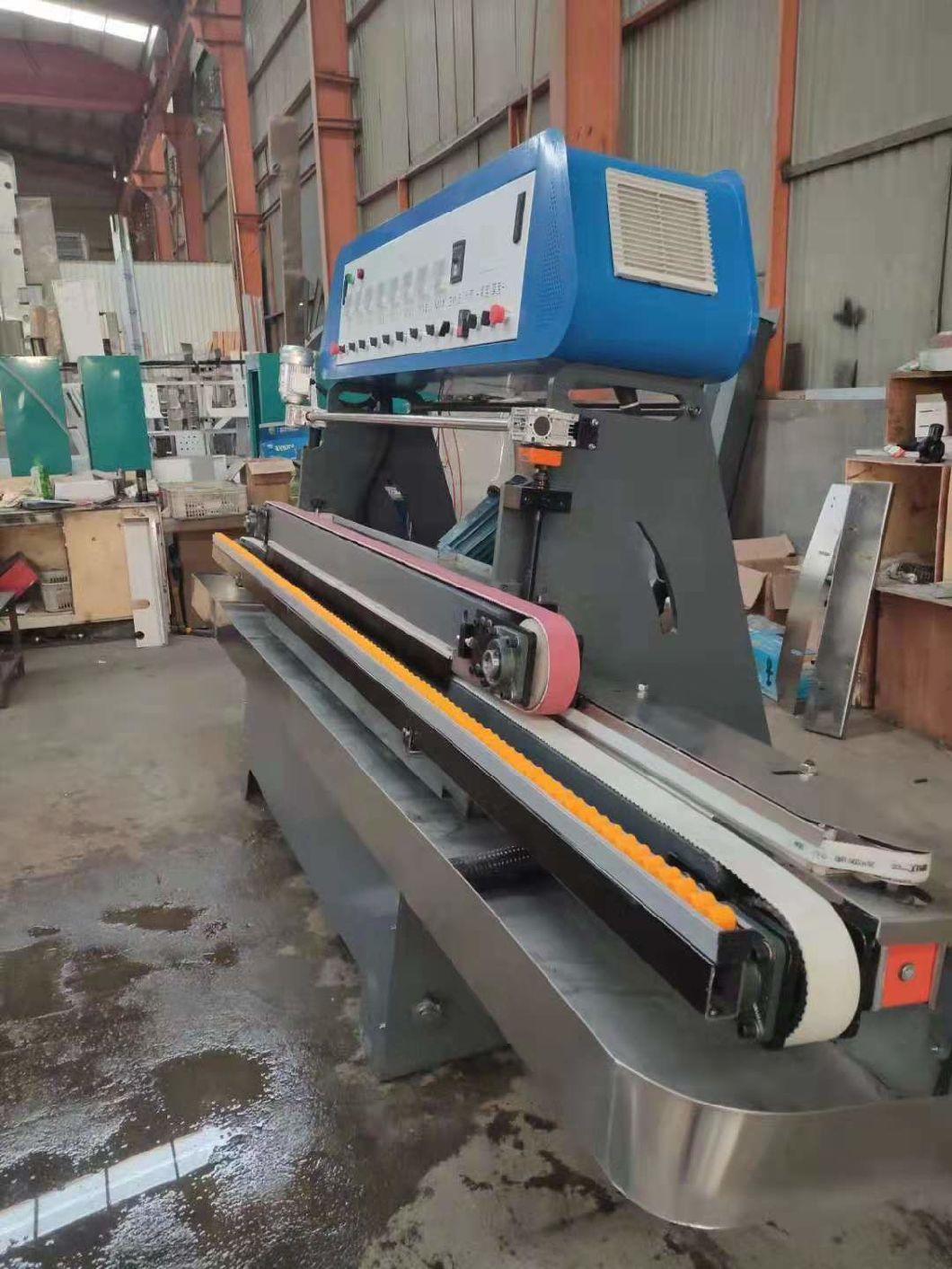

8. Pictures Showing
9. Processing Effect Showing
