• Model NO.：SGA-40100AH ,SGA-40100AHR ,SGA-40100AHD
• Working Style：High-speed universal
• Disc Diameter：230mm
• Variable Speed：With Variable Speed
• Electro Magnetic Chuck Size：400X1000(mm)
• Speed of Table Longitudinal Movement：7-23m,Min
• Spindle Motor：5.5kw
• Hydranlic Motor：2.2kw
• Cooling Pump Motor：0.125kw
• Transport Package：Wood Case or Carton
• Specification：CE ISO
• Trademark：G&G
• Origin：China
• HS Code：846021900
• Production Capacity：100sets,Month

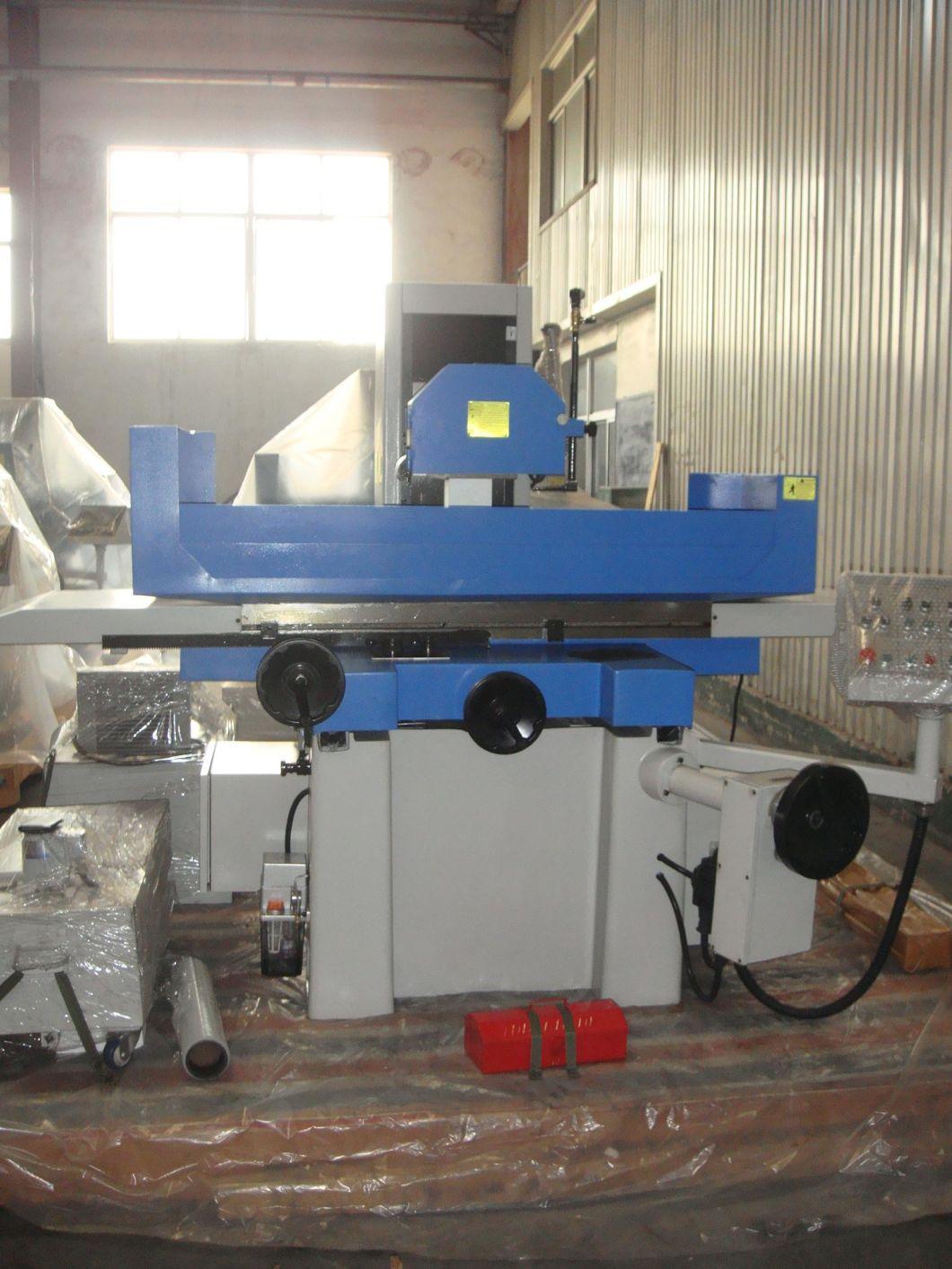

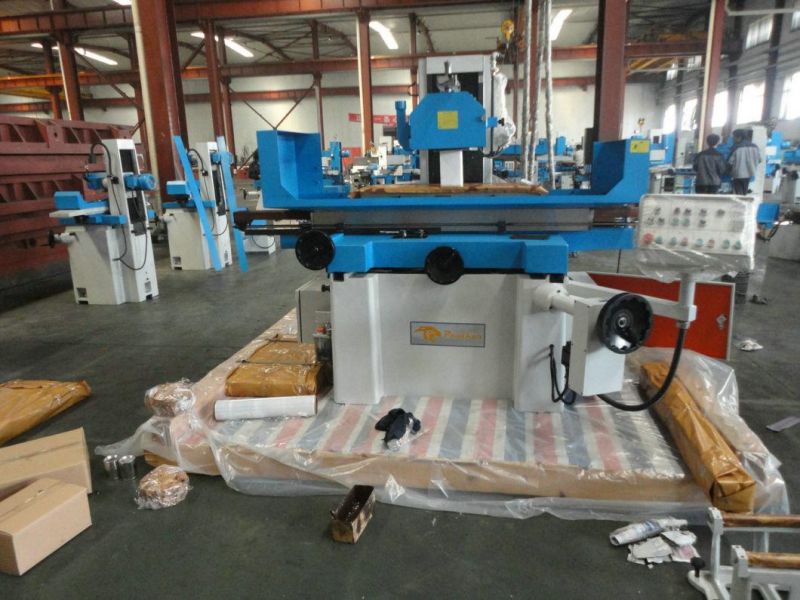

SGA saddle moving surface grinder  Item/ModelUnitSGA-40100AHSGA-40100AHRSGA-40100AHDtable size(WxL)mm406x1020max. longitudinal travelmm1130max. cross travelmm450max. distance from spindle center to tablemm580electro magnetic chuck sizemm400x1000speed of table longitudinal movementm/min7-23table transverse movementauto feedmm/min0.1-8rapid speedmm/min990feed of handwheelmm/div0.02wheelhead vertical movementauto feedmm---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)rapid speedmm/min---(H/AH model) / 460 (for AHR model) 240(only for AHD model)feed of handwheelmm/div0.005grinding wheelspeedrpm1450(50Hz),1750(60Hz)eize(ODxWxID)mm350x40x127spindle motorkw5.5hydranlic motorkw2.2cooling pump motorkw0.125elecating motorkw---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)cross feed motorkw0.04max.loading capacity of table(include chuck)kg600total rated powerkw9height of machinemm1890floor space(LxW)mm4400x2400Gross weightkg4000package dimensions(LxWxH)mm2950x2270x2210
