Horizontal Bead Mill (EDW)
Applications:
Middle, Low, High viscosity raw material, suitable for super fineness required Paints and printing inks, high quality car paint, pigments and dyes, ...A high abrasion nanoscale bead mill.

Three Types

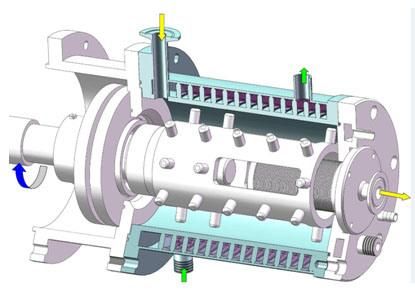

                                       Pin type


                                                Turbo type

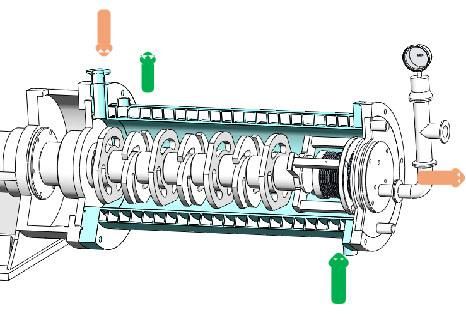

                                                     Disc Type
Features:
1. High abrasive resistance: Materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life.
2. Dynamic fence booms: Discharge solve problems of slow discharge and grinding medium getting stuck.
3. German BURGMANN double mechanical end face seal, which can bear more than 10bar pressure.

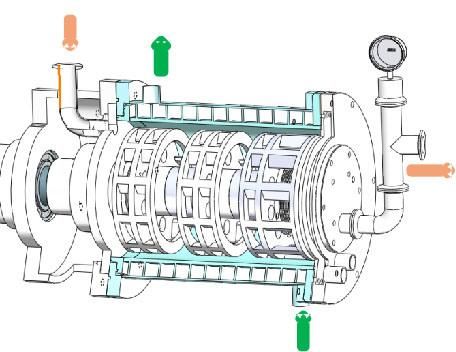

4. Corrugated cooling system increase cooling area and improve cooling efficiency.

5. Grinding beads small to 0.2mm guarantee superfine grinding/milling.

6. Meet demands of continuous production&different viscosity& fineness.

7. Inner & outer double pins improve high wet grinding/milling efficiency.

8. Ex-proof (optional) & fault alarming.

Model	Chamber Volume (ml)	Main Power (kw)	Rotation Speed        (rpm)	Capacity (L/h)	Dimension L*W*H (mm)	Weight (kg)
EDW-5	5	7.5	1440	200	1300*1050*450	650
EDW-15	15	18.5	1440	500	1600*1450*650	1200
EDW-20	20	22	1260	800	1600*1450*650	1350
EDW-30	30	37	1260	1200	1650*1550*750	1700
EDW-40	40	45	980	1500	1750*1650*850	2100
EDW-50	50	55	980	2000	1900*1850*850	2300
EDW-100	100	110	860	3000	2300*2150*950	3800

The differencePin Type Bead Mill:
High efficiency ,good performance,  Nanometer grinding, Narrow distributor; Suitable for different viscosity material: Low, Middle and High Turbo Type Bead Mill:
Higher efficiency ,better performance,  Nanometer grinding, Narrow distributor; Suitable for different viscosity material: Low, Middle and High Disc Type Bead Mill:
Low cost, Economic, Suitable for NOT Fine particle size requested,
Low & Middle viscosity material

Mechanical Seal:

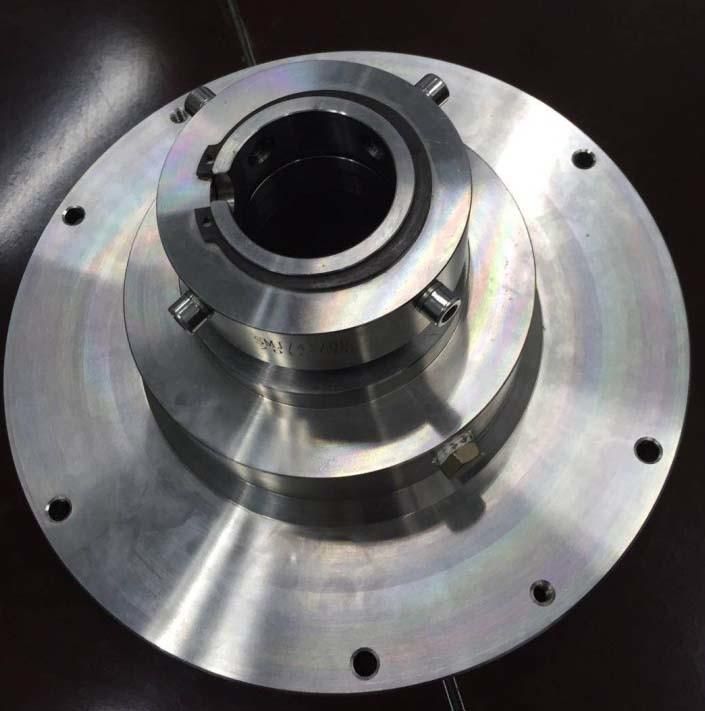

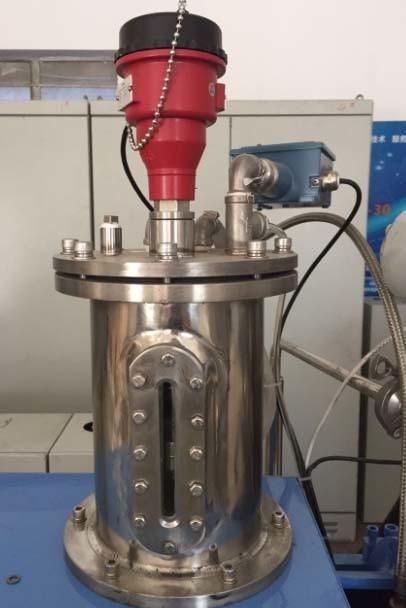

Key part of bead mill, ELE adopt Big Flange double cartridge Mechanical Seal, Burgmann technology, Can endure 8-10Kg Pressure;
High precision, good sealing performance, Longer service time;
A whole part, easy for installation and maintenance
With Cooling liquid level sensor and pressure sensor.
Connections end, we adopt one end clamp, NOT two ends clamps no assembling  run-out tolerance


Key parts & Brand

NO.	Parts	Brand
1	Main Motor	Shanghai Motor Brand
2	Mechanical Seal	Burgmann technology
3	Rotor	YM Harden Alloy Steel/ Ceramic
4	Electrical	Schneider
5	Inverter	ZONCN
6	Belt Pulley	Mitsu Belt, OVITO Pulley
7	Temperature meter & pressure meter	Electrical contact quakeproof
8	Feeding Pump	ARO Ingersoll Rand Diaphragm pump
