• Model NO.：TVB(A)240
• Working Style：Shaking
• Disc Diameter：Customer
• Variable Speed：With Variable Speed
• Capacity：240 Liter
• Size：1880X880X920 mm
• PU Thickness：16mm
• PU Material：Dow Chemicals
• Weight：450 Kg
• Motor Power：1.1 X 2kw
• Dosing Pump：Andose
• Speed Control：Bosch Rexroth Variable Speed Converter
• Sound Cover：Airtec
• Transport Package：Wooden Box
• Specification：240L
• Trademark：Inovatec
• Origin：Huzhou, China
• HS Code：84639000
• Production Capacity：3000

Basic Info.

Model NO. TVB(A)240 Working Style Shaking Disc Diameter Customer Variable Speed With Variable Speed Capacity 240 Liter Size 1880X880X920 mm PU Thickness 16mm PU Material Dow Chemicals Weight 450 Kg Motor Power 1.1 X 2kw Dosing Pump Andose Speed Control Bosch Rexroth Variable Speed Converter Sound Cover Airtec Transport Package Wooden Box Specification 240L Trademark Inovatec Origin Huzhou, China HS Code 84639000 Production Capacity 3000

Product Description

Wibratory Rynnowe Wyroznia Na Tle Innych Urzadzen Rynnowy Kształ T Komory

Catalog Download
https://inovatecmachinery.en.made-in-china.com/Product-Catalogs/

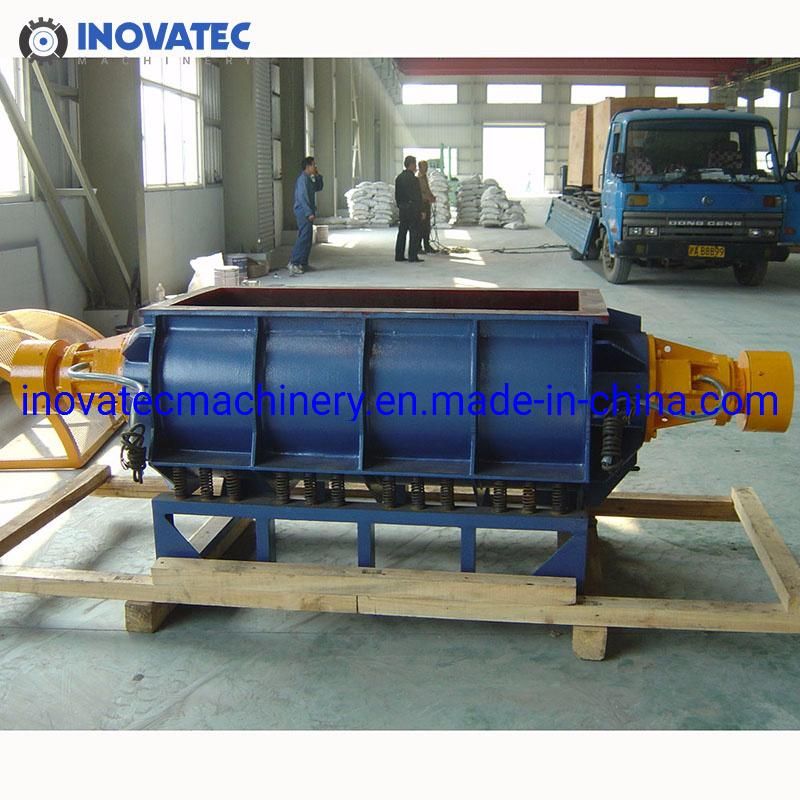

Tub Vibratory Finishing Equipment Product Description:

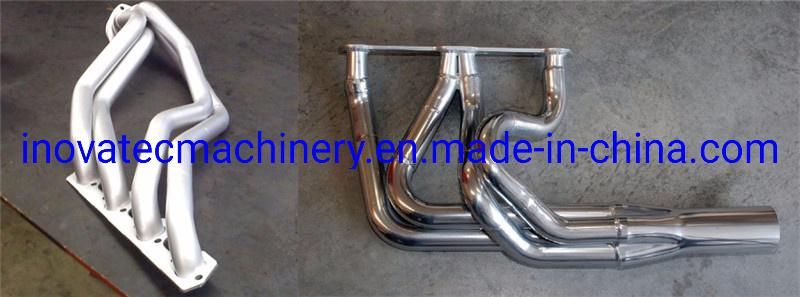

Tub finisher also called as rectangular vibratory finishing machines. TVB(A) series vibratory tubs are perfect for large and heavy parts vibratory tumbling, for example, ceramic coated headers, exhaust pipes, engine housing. In some applications, it also called Ceramic Polishing Machine.

This curved wall offers strengthened tumbling performance and reduces process time. In addition, the featured lining well suited for ball burnishing process. TVB(A) model features heavy gauge all welded steel construction.




Application includes: tumble deburring plastic , tumble finishing , barrel finishing

Tub Vibratory Finishing Equipment Feature:

• Digital process timer
• Low profile design
• Wide opening for big size parts
• Stress relieved and enhanced with blasting
• Default manual parts media separation
• Extended separation deck
• Wear resistant PU lining from Dow Chemicals

Tub Vibratory Finishing Equipment Optional setting:

• Optional Items
• Sound Cover
• Compound Dosing Pump
• Pneumatic flap control
• Variable Frequency Drives
• Control box standing on the floor or hang on the wall

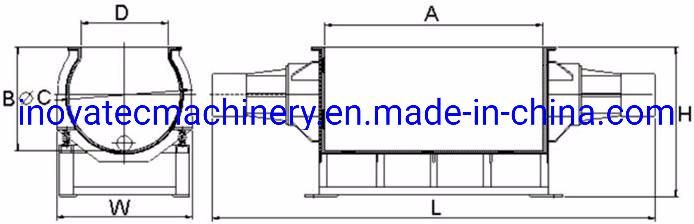

Tub Vibratory Finishing Equipment Technical Drawing:






Tub Vibratory Finishing Equipment Technical Data:

Tub Vibratory Finishing Equipment	TVB(A)240	TVB(A)500	TVB(A)750
Total volume(L)	240	500	750
Max overall dimension LXWXH (mm)	1880×880×920	2870×880×920	3354×880×920
Chamber length  C (mm)	690	1310	2000
Chamber height  B (mm)	625	625	625
Chamber diameter  A (mm)	670	670	670
Feeding entry width  W (mm)	524	524	524
PU Lining thickness(mm)	16	16	16
Power(km)	1.1×2	2.2×2	2.2×2
Weight(kg)	450	1000	1600

Wibratory rynnowe wyroznia na tle innych urzadzen rynnowy kształt komory roboczej, ktory umozliwia obrobke detali o roznorodnych kształtach, szczegolnie elementow długich, ktorych wymiary nie pozwalaja na prowadzenie  w Wibratorach Kołowych. Urzadzenie przeznaczone jest do odtłuszczania, gratowania oraz szlifowania od zgrubnego do dokładnego azpo wykanczajace.    Zasada działania opiera siena wytwarzaniu drgan mechanicznych generowanych przez silnik z przeciwmasami. Komora robocza wprawiana w ruch wibracyjny powoduje interakcje detali ze wsadem.    Ze wzgledu na specyfikepracy - urzadzenia te doskonale nadaja sie do operacji zgrubnych, szczegolnie z zastosowaniem mediow ceramicznych o duzej scieralnosci. Wynikiem jest uzyskanie homogenicznej struktury, wolnej od ostrych krawedzi i narozy. Wibratory rynnowe, potocznie nazywane „gratowarkami”, sa w stanie przeprowadzicproste procesy usuwania naddatku na detalu juz w czasie kilkunastu minut. Z kolei wygładzenie powierzchni moze zajmowac nie wiecej jak kilka godzin.    Wibratory rynnowe  z powodzeniem usuwaja zadziory, stepiaja i zaokraglaja ostre krawedzie, eliminuja warstwy przypowierzchniowe - tlenki powstałe po cieciu laserowym czy tłuszcz osadzony napowierzchni materiału. W głownej mierze urzadzenia te dedykowane saprzedmiotom z duzymi naddatkami obrobczymi, gdzie nadrzednym celem jest gratowanie. Doskonale radza sobie takze z wygładzaniem sciernym, gdzie kluczowe jest nadanie powierzchni oczekiwanej chropowatosci. Sprawdzaja sieprzy masowej obrobce detali o roznorodnych kształtach, a przy doborze odpowiednich parametrow - rowniez elementow płaskich, ktore maja tendencje do sklejania sie miedzy soba (tzw. pakietowania) lub przywierania do scianek pojemnika roboczego.    Jako scierniwo stosuje sie najczesciej media ceramiczne i zywiczne.Proces technologiczny wspomagany jest odpowiednim płynem obrobczym intensyfikujacym przebieg

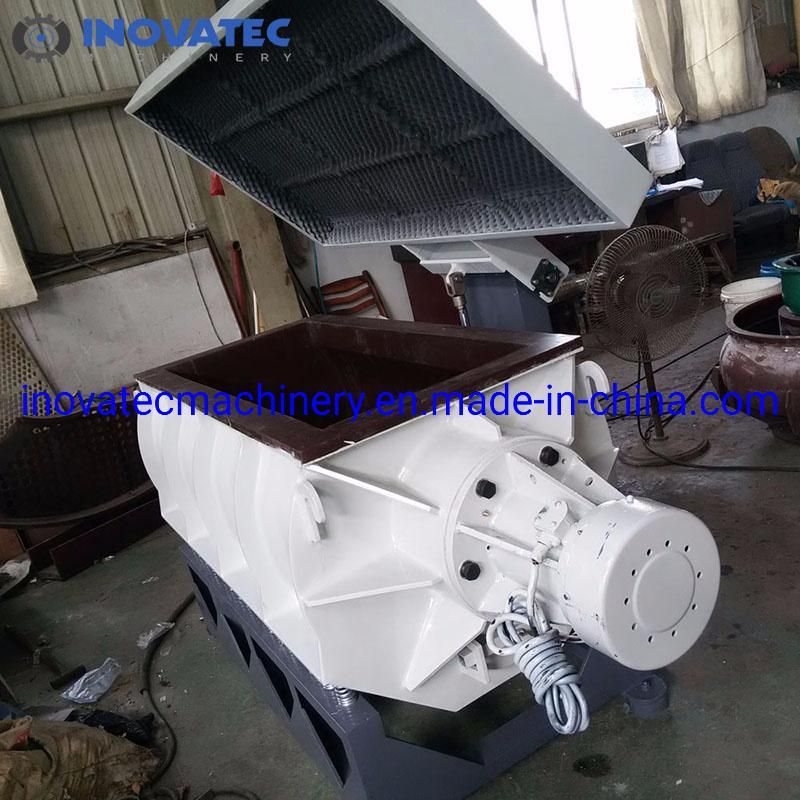

Tub Vibratory Finishing Equipment Product info:

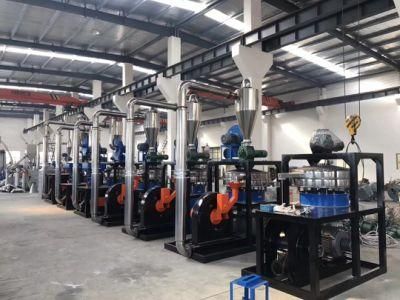

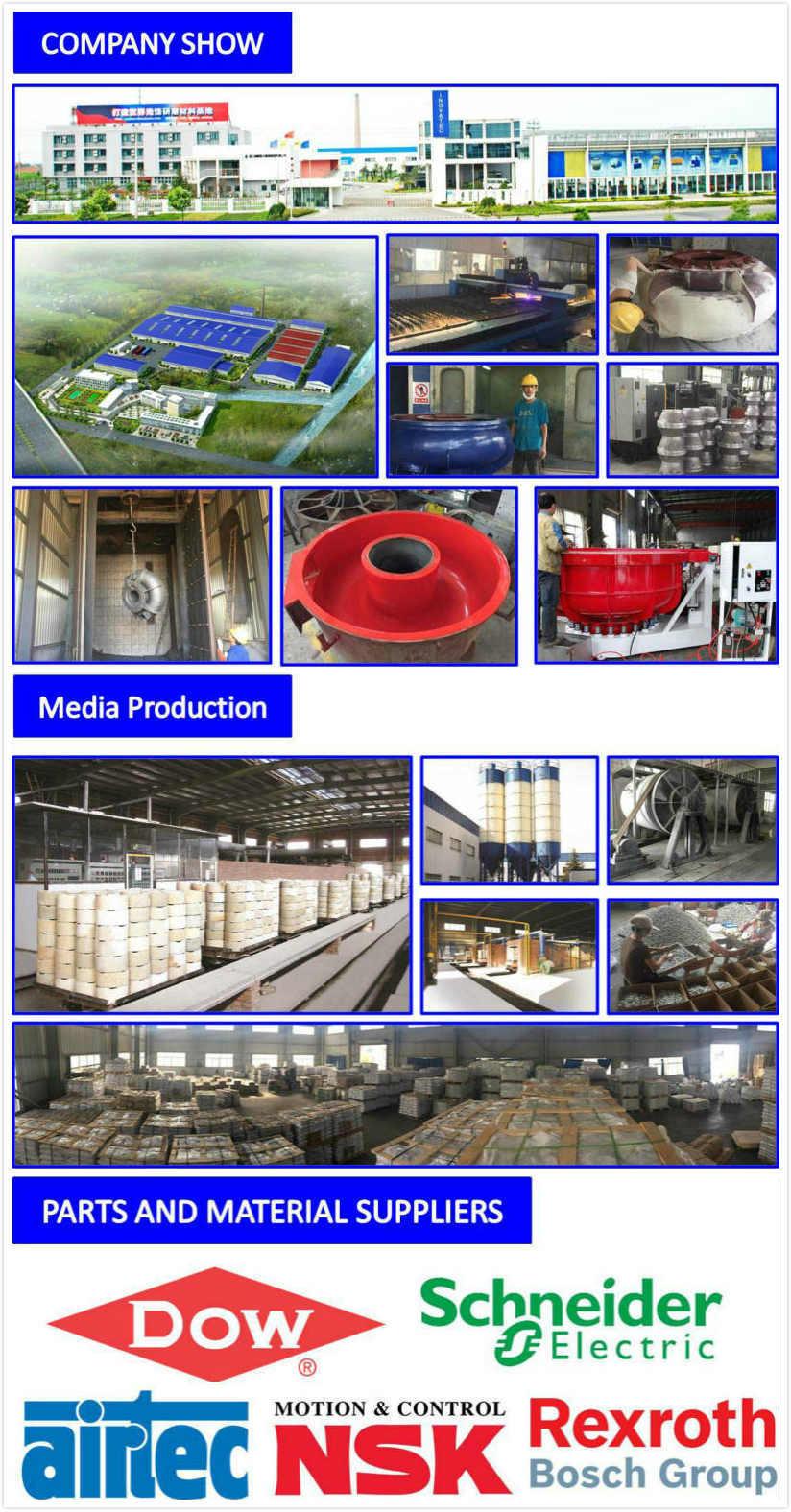

Vibratory Surface Treatment Metal Finishing Company introduction:

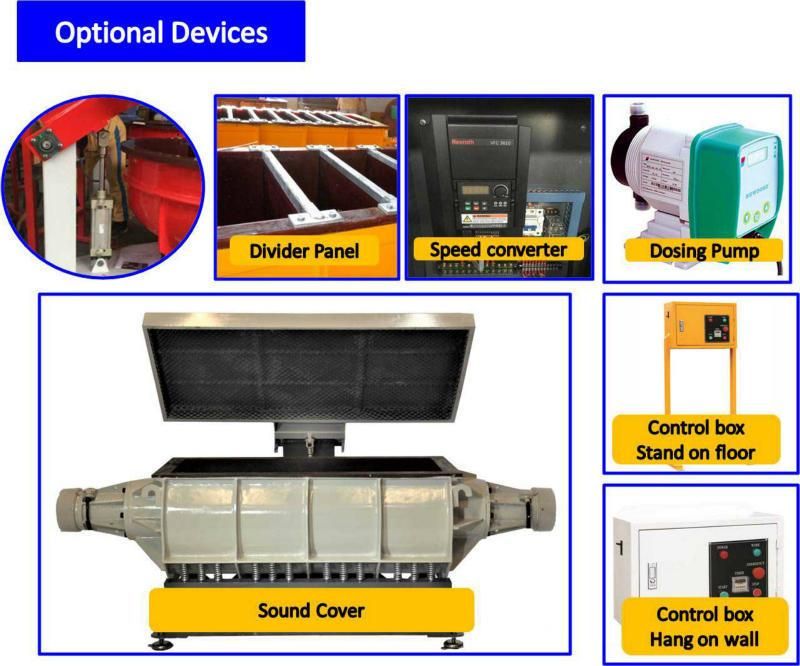

Vibratory Finishing Equipment Optional settings:

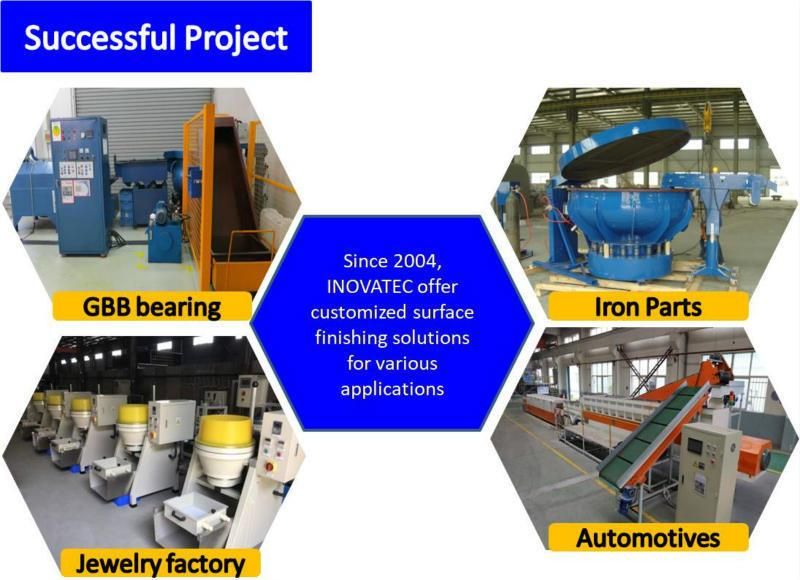

Vibro deburring Polishing tumbling Successful Project:

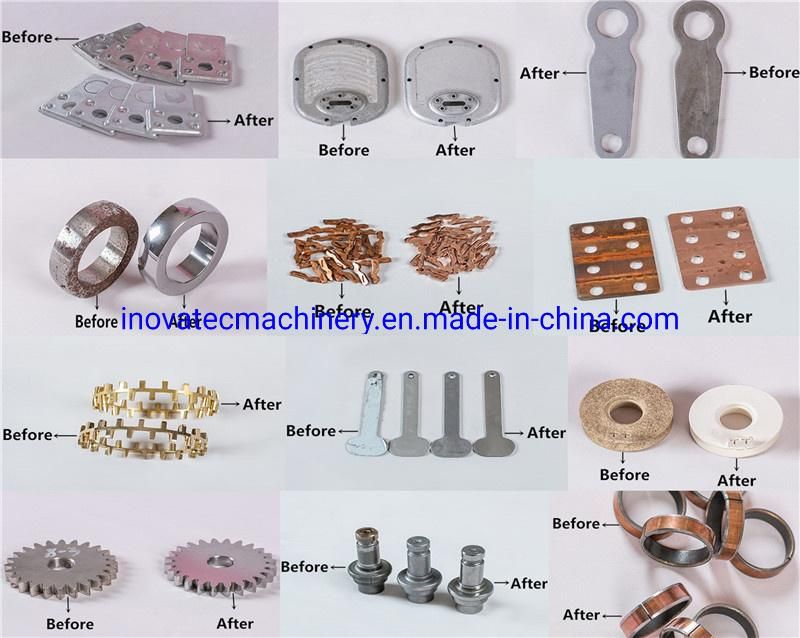

Parts before and after vibratory polishing, vibratory deburring, cleaning, edge rounding, descaling, degreasing, de-oiling, cleaning, edge breaking,radiusing:

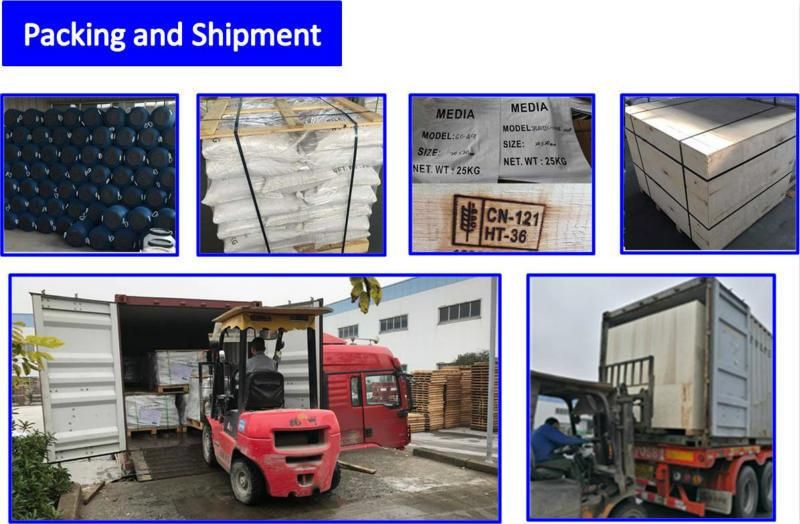

Mass Finishing Machine and abrasive deburring media Packing and shipment:




Payment:




FAQ:

Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty

Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.

Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.

Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.

Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).

Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media

Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound

Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week

Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep

Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
