Small Pigment Grinding Machine

Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.
  • Type：Disc Grinder
  • Power Source：Hydraulic
  • Object：Disc Bead Mill
  • Application：Chemical
  • Disc(Wheel) Type：Grinding Disc
  • Material：Metal

Base Info

  • Model NO.：EDW
  • Working Style：High-speed universal
  • Disc Diameter：230mm
  • Variable Speed：With Variable Speed
  • Materials：Stainless Steel or Pure Zirconia
  • Application Industry：Dye, Dyestuff, Dyeware, Offset Printing Ink
  • Grinding Medium：Pure Zirconia
  • Transport Package：Wooden Case
  • Specification：EZW-5------EZW-100
  • Trademark：ELE
  • Origin：Shanghai, China
  • HS Code：879820090
  • Production Capacity：200-3000L,H

Description

Basic Info.

Model NO. EDW Working Style High-speed universal Disc Diameter 230mm Variable Speed With Variable Speed Materials Stainless Steel or Pure Zirconia Application Industry Dye, Dyestuff, Dyeware, Offset Printing Ink Grinding Medium Pure Zirconia Transport Package Wooden Case Specification EZW-5------EZW-100 Trademark ELE Origin Shanghai, China HS Code 879820090 Production Capacity 200-3000L/H

Product Description

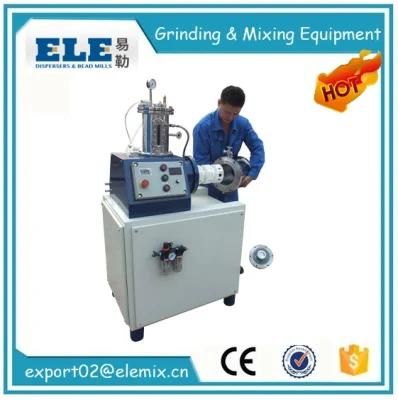

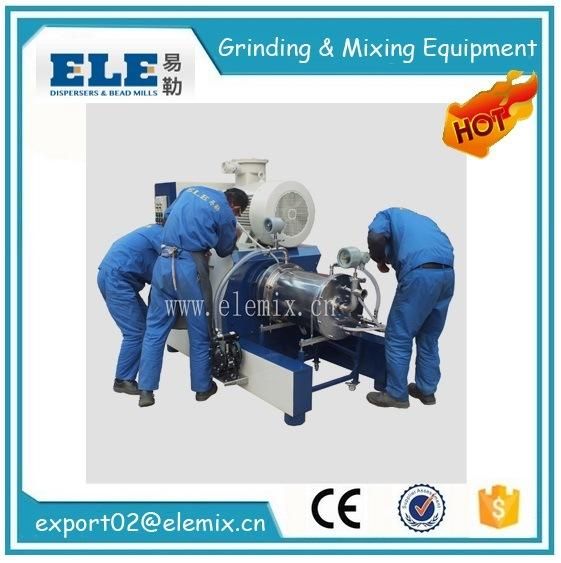

Horizontal Sand Mill (EZW)/small pigment grinding machine


Features:
1, high abrasive resistance materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life span
2, dynamic fence booms discharge solve problems of slow discharge and grinding medium getting stuck
3, German BURGMANN double end-face mechanical seal can bear more than 10bar pressure
4, screw structure inside cooling jacket increase cooling area and improve cooling efficiency
5, grinding beads small to 0.2mm guarantee superfine grinding/milling
5, meet demands of continuous production

6, especially suitable for high viscosity, high solid-content, superfine grinding/milling
7, inner & outer double pins improve high wet grinding/milling efficiency
8, ex-proof (optional)
9, precise control system & fault alarming
10, kinds of feeding pumps to different processing requirements (e. G. Pneumatic diaphragm pump)
11, low power consumption

Specifications
ModelChamber
Volume
(ml)		Power
(kw)		Speed
(rpm)		Capacity
(L/H)		Dimension
L*W*H
(mm)		Weight
(kg)
EDW-557.5  1440  2001300*1050*450  650
EDW-151518.5  1440  5001600*1450*650  1200
EDW-2020  22  1260  8001600*1450*650  1350
EDW-3030  37  1260  12001650*1550*750  1700
EDW-4040  45  980  15001750*1650*850  2100
EDW-5050  55  980  20001900*1850*850  2300
EDW-100100  110  860  30002300*2150*950  380
