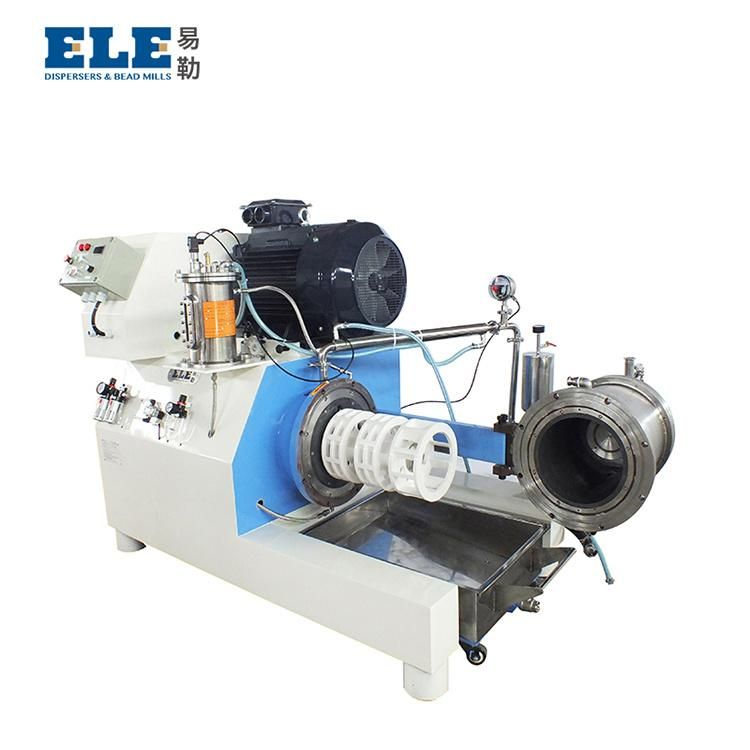

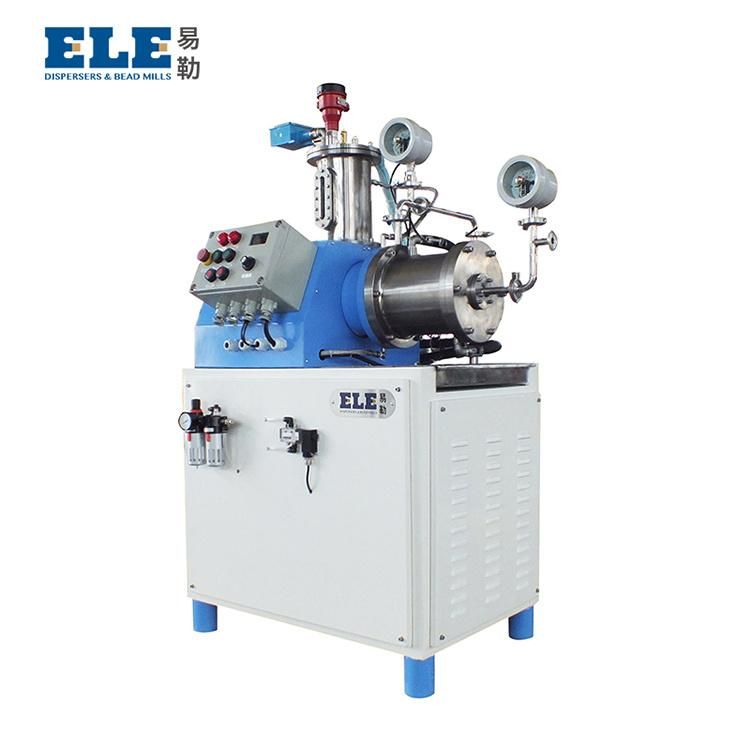

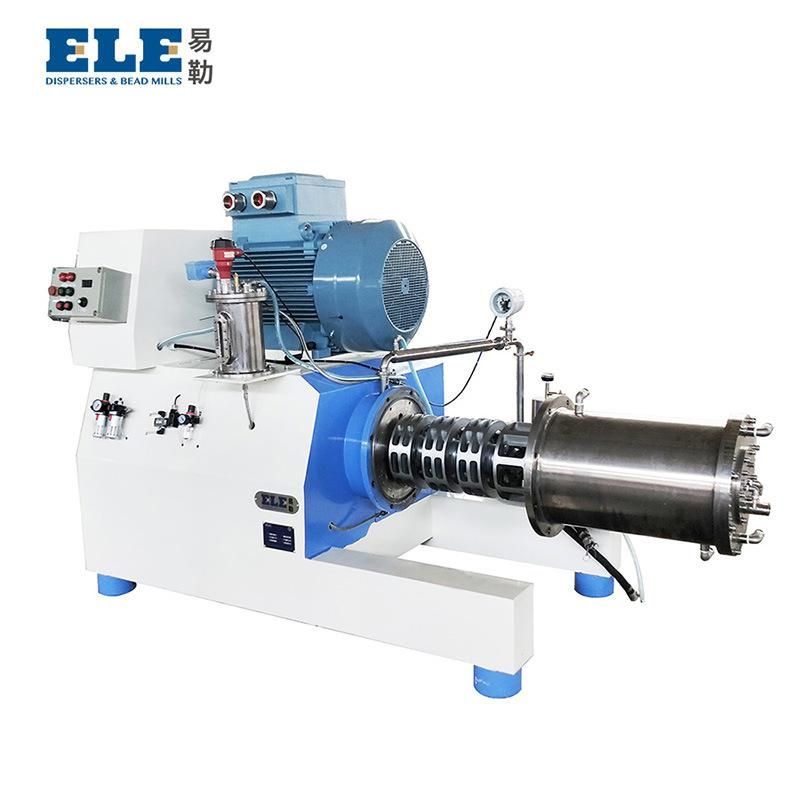

Ele Horizontal Bead Mill for Pigment, Paint, Coaint, Ink Wet Grinding
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type：Mill
- Power Source：Hydraulic
- Object：Wet Grinding Machine
- Application：Chemical
- Disc(Wheel) Type：Grinding Disc
- Material：Zirconia, Stainless Steel
Base Info
- Model NO.：EDW
- Working Style：High-speed universal
- Disc Diameter：180mm
- Variable Speed：With Variable Speed
- Function：Wet Grinding, Milling
- Grinding Medium：Zirconia Beads
- Applicable Industry：Coating, Paint, Ink, Pigment, Latex
- Materials：Stainless Steel or Pure Zirconia
- Usage：Industrial
- Product Type：Paint
- Transport Package：Wooden Case
- Specification：EDW-5L----EDW-100L
- Trademark：ELE
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：200-2000L
Description
Basic Info.
Model NO. EDW Working Style High-speed universal Disc Diameter 180mm Variable Speed With Variable Speed Function Wet Grinding/ Milling Grinding Medium Zirconia Beads Applicable Industry Coating, Paint, Ink, Pigment, Latex Materials Stainless Steel or Pure Zirconia Usage Industrial Product Type Paint Transport Package Wooden Case Specification EDW-5L----EDW-100L Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 200-2000LProduct Description
Applications:
Middle, Low, High viscosity raw material, suitable for super fineness required Paints and printing inks, high quality car paint, pigments and dyes, ...A high abrasion nanoscale bead mill.

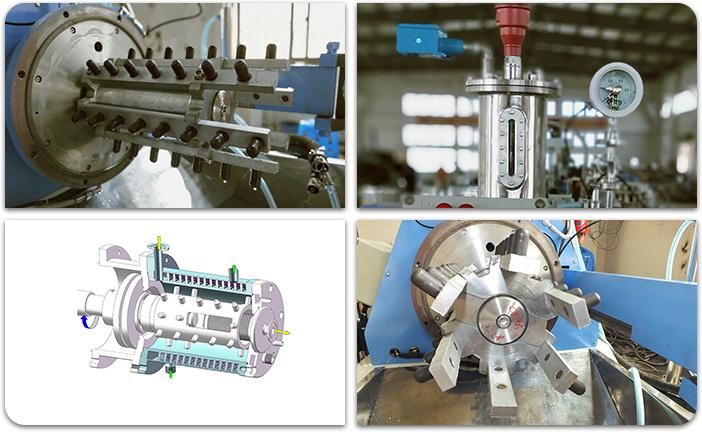

Features:
1. High abrasive resistance: Materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life.
2. Dynamic fence booms: Discharge solve problems of slow discharge and grinding medium getting stuck.
3. German BURGMANN double mechanical end face seal, which can bear more than 10bar pressure.
4. Corrugated cooling system increase cooling area and improve cooling efficiency.
5. Grinding beads small to 0.2mm guarantee superfine grinding/milling.
6. Meet demands of continuous production&different viscosity& fineness.
7. Inner & outer double pins improve high wet grinding/milling efficiency.
8. Ex-proof (optional) & fault alarming.
Parameter:
| Model | Chamber Volume (ml) | Main Power (kw) | Rotation Speed (rpm) | Capacity (L/h) | Dimension L*W*H (mm) | Weight (kg) |
| EDW-5 | 5 | 7.5 | 1440 | 200 | 1300*1050*450 | 650 |
| EDW-15 | 15 | 18.5 | 1440 | 500 | 1600*1450*650 | 1200 |
| EDW-20 | 20 | 22 | 1260 | 800 | 1600*1450*650 | 1350 |
| EDW-30 | 30 | 37 | 1260 | 1200 | 1650*1550*750 | 1700 |
| EDW-40 | 40 | 45 | 980 | 1500 | 1750*1650*850 | 2100 |
| EDW-50 | 50 | 55 | 980 | 2000 | 1900*1850*850 | 2300 |
| EDW-100 | 100 | 110 | 860 | 3000 | 2300*2150*950 | 3800 |
