Tp-GM Series Grinding Machine with/Without Dust Collection Device

Guangzhou 247 International Trading Co., Ltd.

    Base Info

      Description

      ModelTP-GM-20BTP-GM-30BTP-GM-40BTP-GM-60BCapacity (kg/h)60-100100-300160-800500-1500Feed size(mm)<6<10<12<15Grinding fineness(mesh)3-120Spindle speed(r/min)4500380034002800Motor power(kw)45.57.511Weight(kg)150250380550Dimensions(mm)(L*W*H)960*750*17501000*900*16801200*650*15501350*750*1680

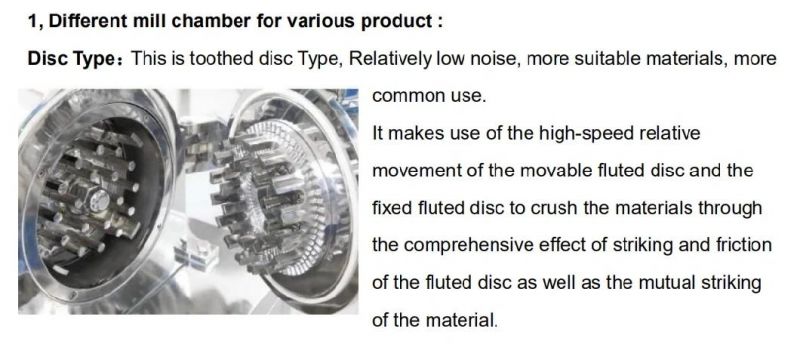

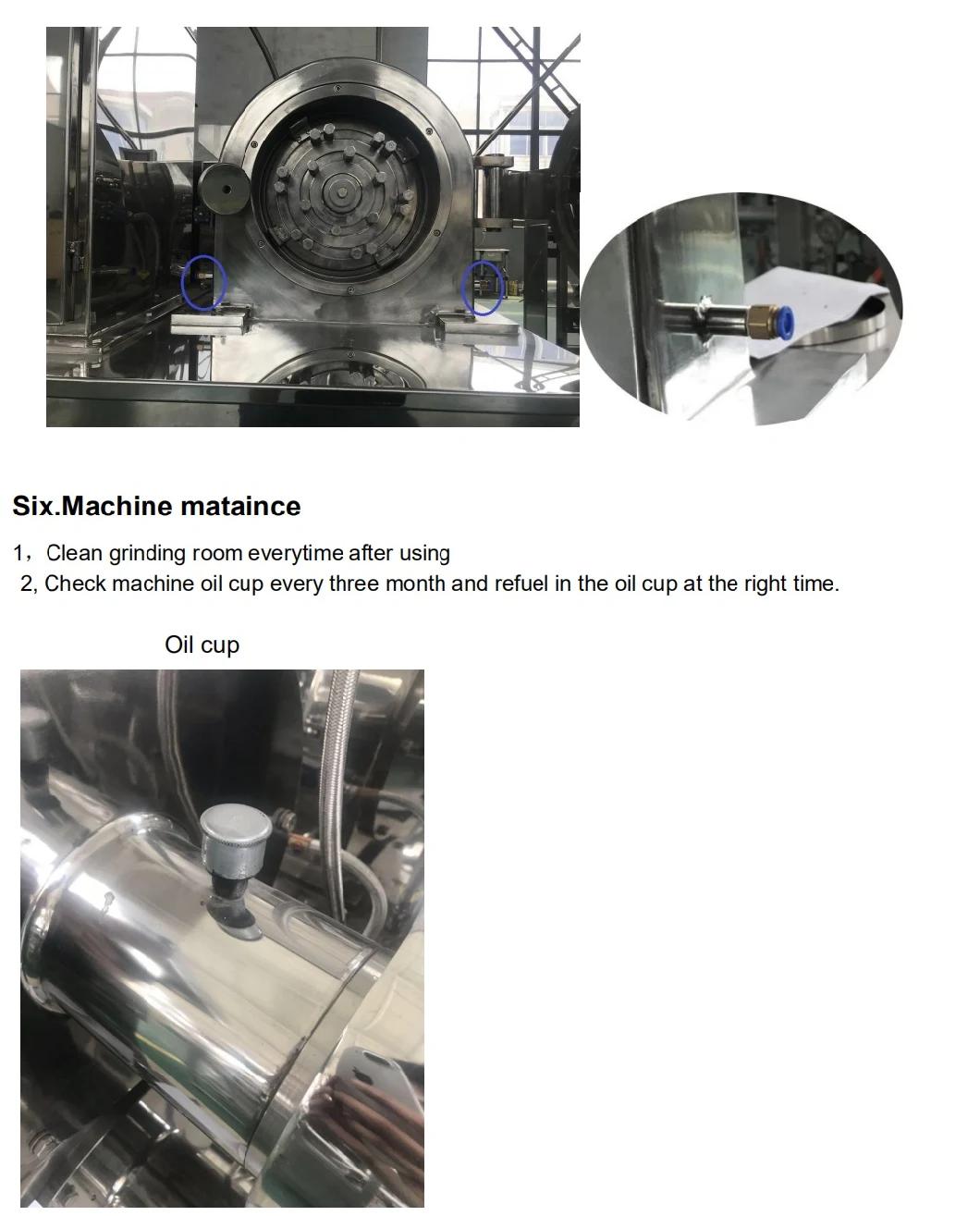

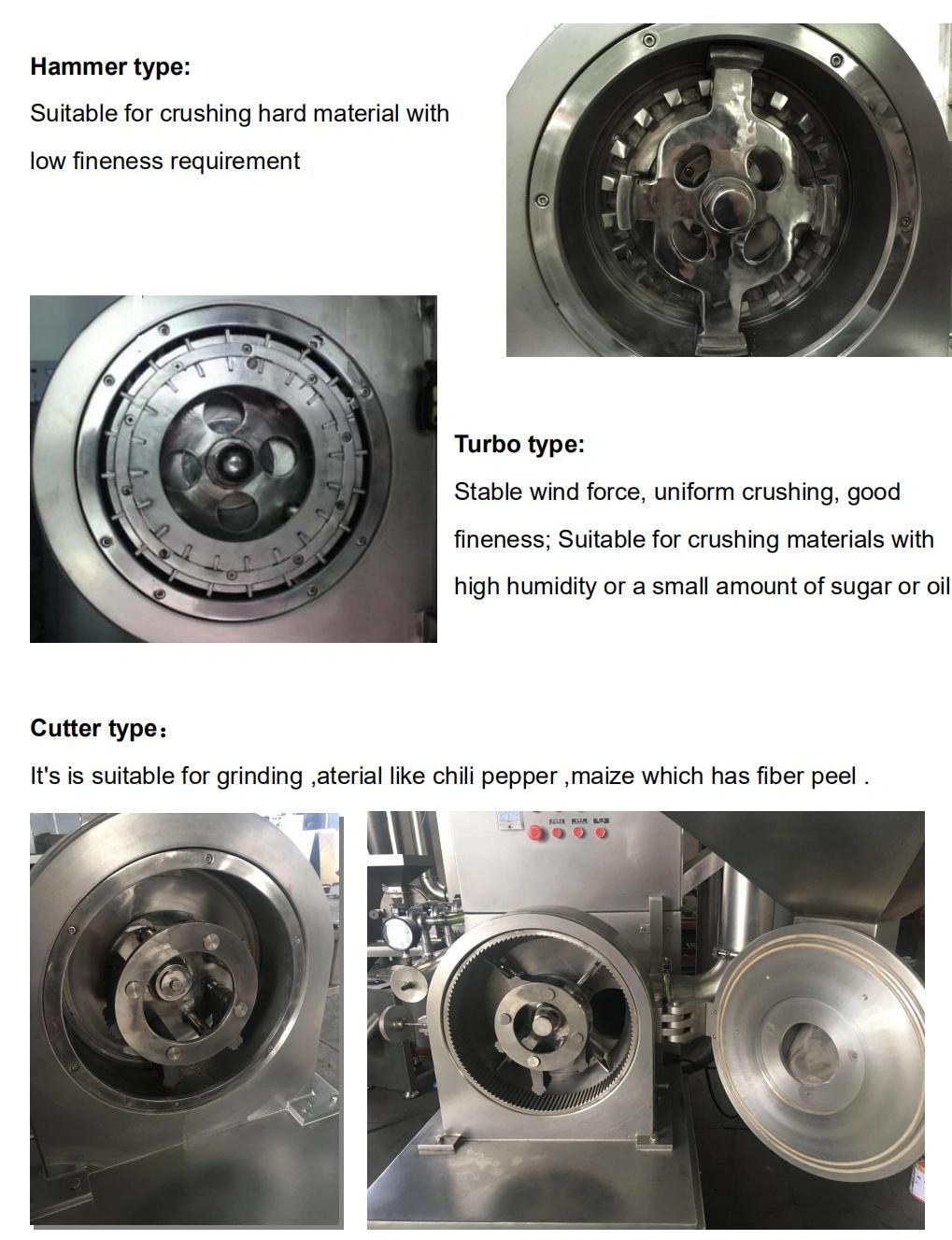

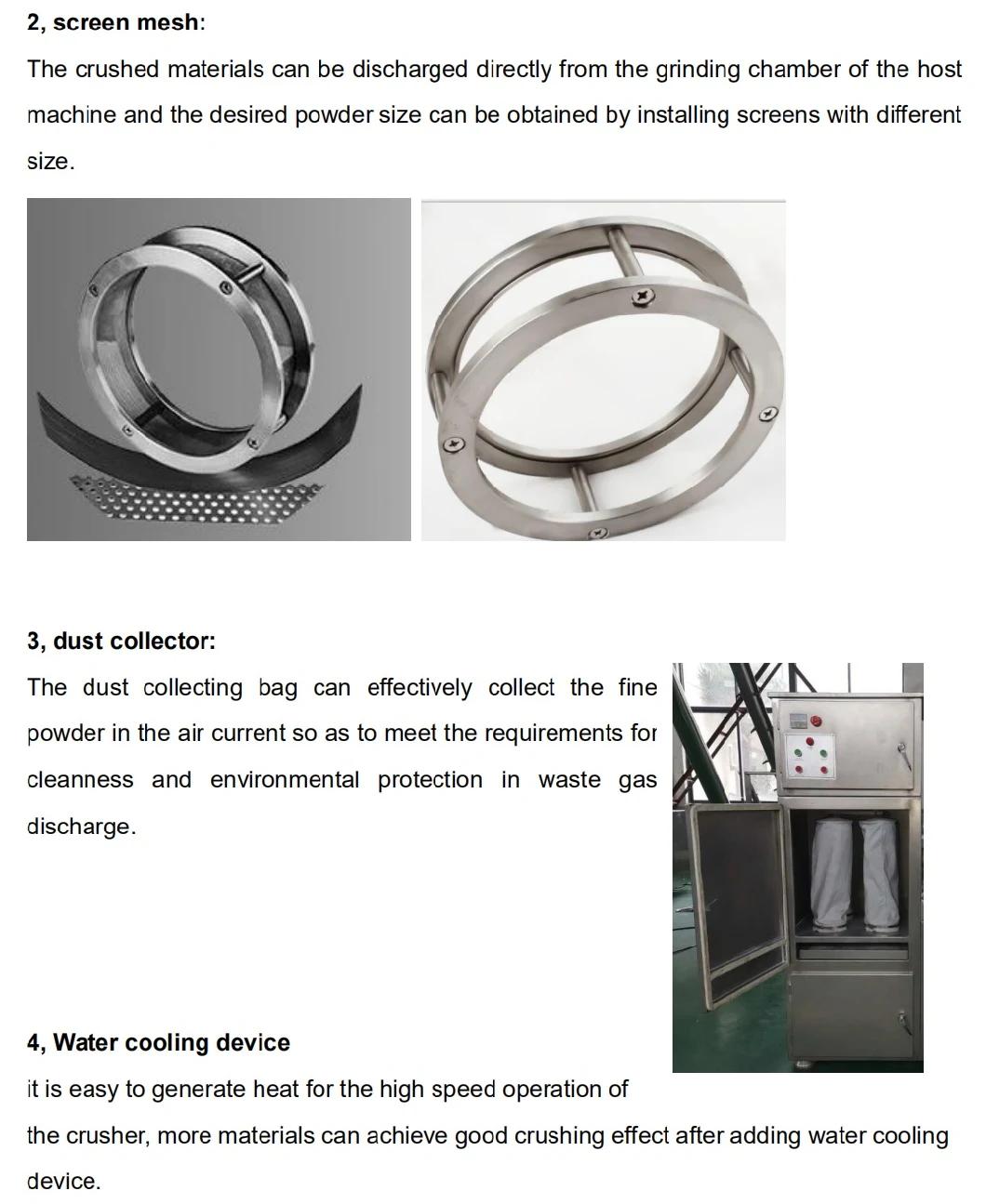

      5. Detailed photos

      Tp-GM Series Grinding Machine with/Without Dust Collection Device
      Tp-GM Series Grinding Machine with/Without Dust Collection Device
      Tp-GM Series Grinding Machine with/Without Dust Collection Device
      Tp-GM Series Grinding Machine with/Without Dust Collection Device


      6. Remarks

      - TWO YEAR warranty, ENGINE THREE YEARS warranty, life-long service (Warranty service will be honored if the damage is not caused by human or improper operation)

      - Provide accessory parts in favorable price

      - Update configuration and program regularly
