Sic Pin Bead Mill Sand Mill

Qingdao Shindah Machinery Co., Ltd.
  • Type：Disc Grinder
  • Power Source：Electricity
  • Object：Milling Cutter
  • Application：Chemical
  • Disc(Wheel) Type：Sanding Discs
  • Material：Metal

Base Info

  • Model NO.：WSP-10, WSP-25- WSP-60, WSP-90, WSP-150, WSP-400
  • Working Style：High-speed universal
  • Disc Diameter：150mm
  • Variable Speed：With Variable Speed
  • Transport Package：Pallet
  • Specification：all size
  • Trademark：Shindah
  • Origin：China
  • HS Code：8479
  • Production Capacity：1000 Sets,Year

Description

Basic Info.

Model NO. WSP-10, WSP-25- WSP-60, WSP-90, WSP-150, WSP-400 Working Style High-speed universal Disc Diameter 150mm Variable Speed With Variable Speed Transport Package Pallet Specification all size Trademark Shindah Origin China HS Code 8479 Production Capacity 1000 Sets/Year

Product Description

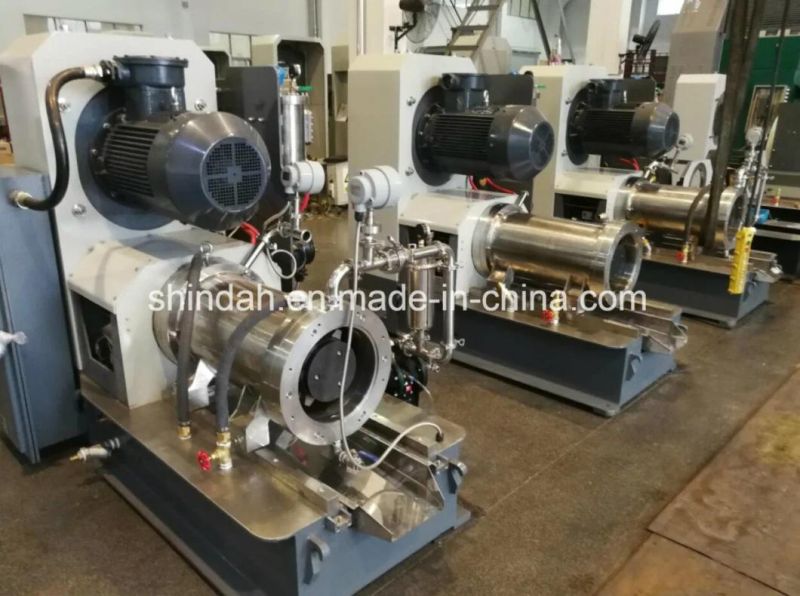

WSP Nanometer Bead Mill

Introduce:
WSP is used for super-fine grinding and dispersing of solid materials in fluid. During the operation, the product is pumped from pre - mixing tank to agitator mill, the turning pegs transfer the energy to grinding beads, the beads impact and grind the product to the needed sizes. WSP peg mill can grind the products down to sub - micron meter or nano meter with concentrated particle size distribution and low energy consumption.


Application:
Battery Industry: cathode materials of the lithium iron phosphate batteries.
Digital Consumptive Materials: digital jet printing ink.
Ceramic Materials: alumina oxide, zirconia , silicon carbide.
Mineral Pigment: titanium pigment, calcium carbonate, ferric oxide.
Rare-earth Materials: zirconia, indium oxide, cerium oxide, etc.
Cosmetics: pearl powder.
Pharmaceutical Preparation.

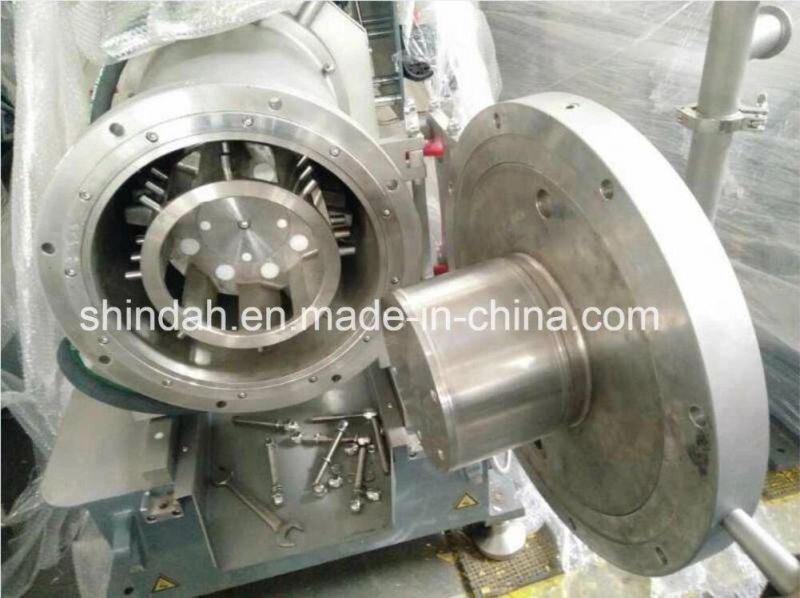

Structure:
Special rotor structure design, both the number, size and installation position are designed according to the vortex fluid mechanics to reach the maximum ratio of grinding energy and to improve the grinding efficiency, which make the material reach nano-meter.The fineness could be less than 50nm tested by Malvern.

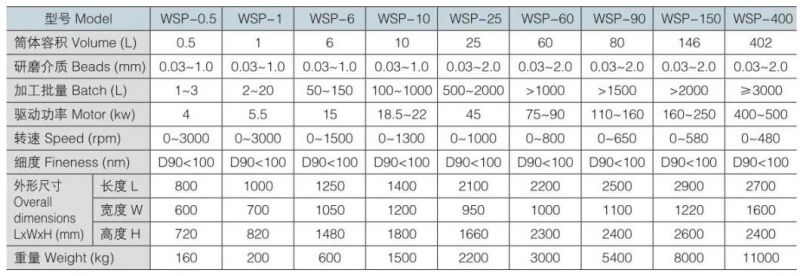

Models:
Sic Pin Bead Mill Sand Mill

Sic Pin Bead Mill Sand Mill
Sic Pin Bead Mill Sand Mill
Sic Pin Bead Mill Sand Mill
Sic Pin Bead Mill Sand Mill
Sic Pin Bead Mill Sand Mill




we make bead-grinding mill since 2003.
Strict quality control.
Fast delivery time.
Good after-sales services.
Reasonable prices.

welcome to send your inquiries. Look forward to working with you!
