• Model NO.：Horizontal Bead Mill
• Working Style：High-speed universal
• Disc Diameter：180mm
• Variable Speed：With Variable Speed
• Function：Wet Grinding, Milling
• Grinding Medium：Zirconia Beads
• Applicable Industry：Coating, Paint, Ink, Pigment, Latex
• Materials：Stainless Steel or Pure Zirconia
• Usage：Industrial Paint Manufacturing Machinery
• Product Type：Paint Cosmetic Detergent Powder Perfume Shampoo
• Field 1：Grinding&Milling Machine Pin Mill Horizontal Mill
• Field 2：Industrial Bead Mill,Grease Plant,Resin Plant
• Field 3：Dissolver Motorized Lifting,Basket Mill,Ointment
• Field 4：Attritor Mill,Chemical Processing Plant,Laboratory
• Transport Package：Wooden Case
• Specification：EDW-5L----EDW-100L
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：200-2000L

Basic Info.

Model NO. Horizontal Bead Mill Working Style High-speed universal Disc Diameter 180mm Variable Speed With Variable Speed Function Wet Grinding/ Milling Grinding Medium Zirconia Beads Applicable Industry Coating, Paint, Ink, Pigment, Latex Materials Stainless Steel or Pure Zirconia Usage Industrial Paint Manufacturing Machinery Product Type Paint Cosmetic Detergent Powder Perfume Shampoo Field 1 Grinding&Milling Machine Pin Mill Horizontal Mill Field 2 Industrial Bead Mill/Grease Plant/Resin Plant Field 3 Dissolver Motorized Lifting/Basket Mill/Ointment Field 4 Attritor Mill/Chemical Processing Plant/Laboratory Transport Package Wooden Case Specification EDW-5L----EDW-100L Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 200-2000L

Product Description

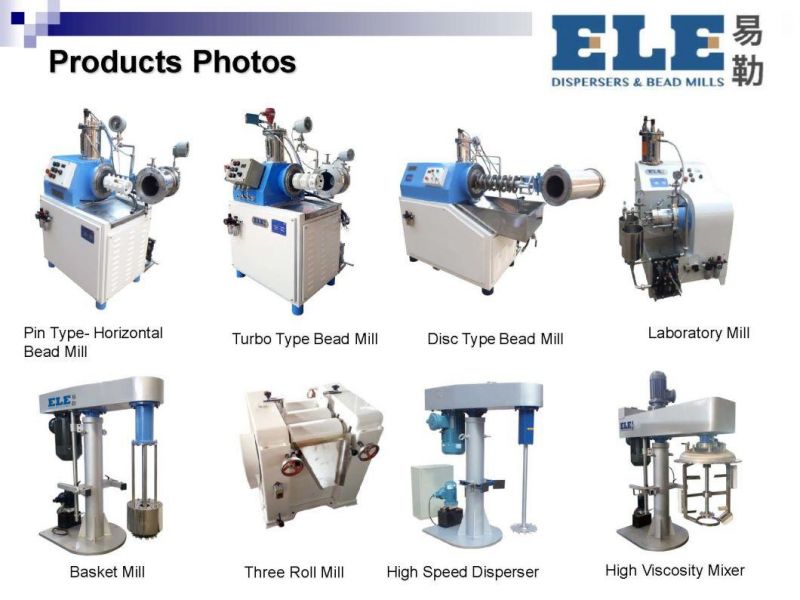

Horizontal Bead Mill (EDW)
Applications:
Middle, Low, High viscosity raw material, suitable for super fineness required Paints and printing inks, high quality car paint, pigments and dyes, ...A high abrasion nanoscale bead mill.


Features:
1. High abrasive resistance: Materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life.
2. Dynamic fence booms: Discharge solve problems of slow discharge and grinding medium getting stuck.
3. German BURGMANN double mechanical end face seal, which can bear more than 10bar pressure.

4. Corrugated cooling system increase cooling area and improve cooling efficiency.

5. Grinding beads small to 0.2mm guarantee superfine grinding/milling.

6. Meet demands of continuous production&different viscosity& fineness.

7. Inner & outer double pins improve high wet grinding/milling efficiency.

8. Ex-proof (optional) & fault alarming.

Model	Chamber Volume (ml)	Main Power (kw)	Rotation Speed        (rpm)	Capacity (L/h)	Dimension L*W*H (mm)	Weight (kg)
EDW-5	5	7.5	1440	200	1300*1050*450	650
EDW-15	15	18.5	1440	500	1600*1450*650	1200
EDW-20	20	22	1260	800	1600*1450*650	1350
EDW-30	30	37	1260	1200	1650*1550*750	1700
EDW-40	40	45	980	1500	1750*1650*850	2100
EDW-50	50	55	980	2000	1900*1850*850	2300
EDW-100	100	110	860	3000	2300*2150*950	3800
