• Model NO.：TX-Y6B
• Working Style：High-speed universal
• Disc Diameter：100mm
• Variable Speed：Without Variable Speed
• Grinding Range：M5-M20
• Point Angle：5-30°
• Power：180W
• Voltage：220V
• Speed：4800rpm
• Grinding Wheel：CBN or Sdc
• Dimension：48*30*33cm
• Weight：25kg
• Transport Package：Wooden Packing
• Specification：48*30*33cm
• Trademark：TXZZ
• Origin：China
• HS Code：8460390000

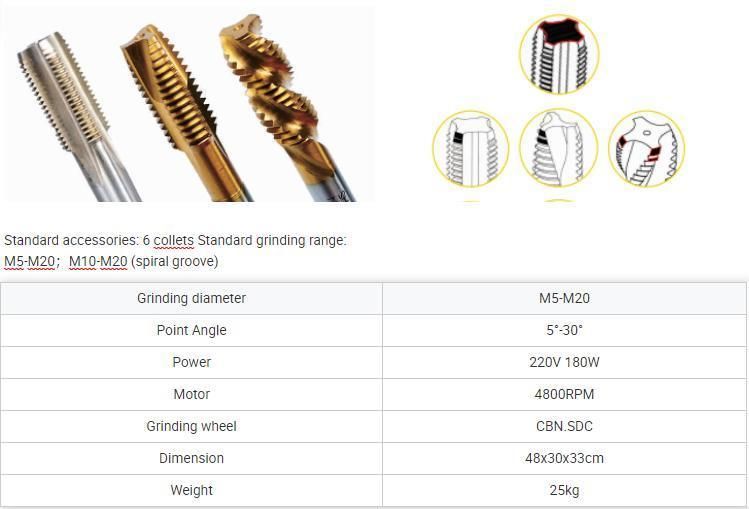

Basic Info.

Model NO. TX-Y6B Working Style High-speed universal Disc Diameter 100mm Variable Speed Without Variable Speed Grinding Range M5-M20 Point Angle 5-30° Power 180W Voltage 220V Speed 4800rpm Grinding Wheel CBN or Sdc Dimension 48*30*33cm Weight 25kg Transport Package Wooden Packing Specification 48*30*33cm Trademark TXZZ Origin China HS Code 8460390000

Product Description

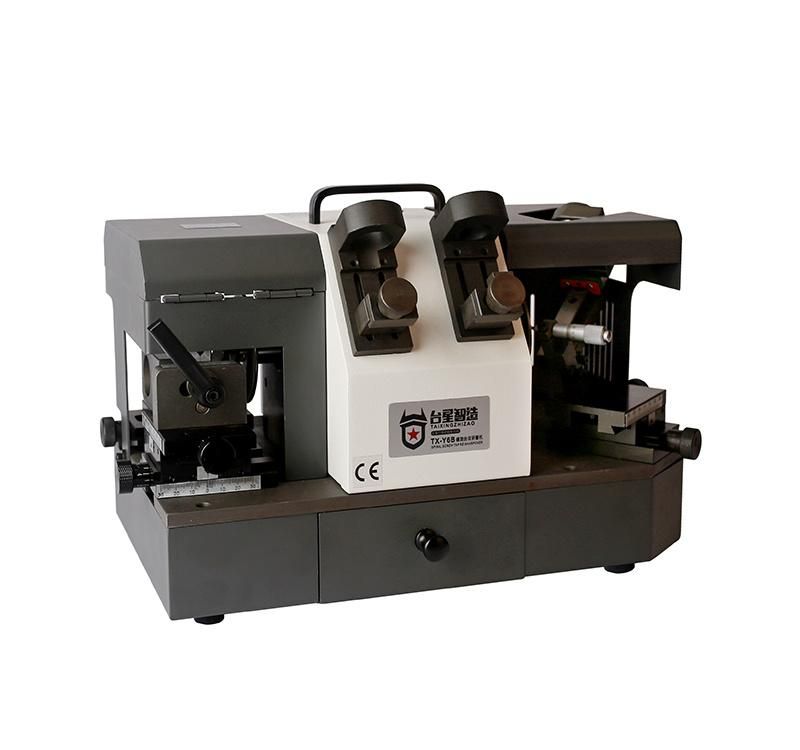

TXZZ TX-Y6B M5-M20 Wholesale Simple Quick Screw Tap Grinding Machine with CE

Product Description
    This machine is portable and can grind 2-edge, 3-edge and 4-edge taps. It can grind 5-edge taps.
    Y6B type is a double-head grinding structure. The left side has the same function as the Y3C type, which can grind the entire front cutting surface and front cutting edge of straight flflute taps and tip taps, as well as the front cutting surface of spiral taps; the right side is a unique profifiling structure that can grind spiral taps Spiral cutting groove.

Detailed Images


Packing and Shipping

Company Introduction
Zhejiang Taixing Intelligent Equipment Co., Ltd. is a comprehensive professional manufacturer specializing in the development and production of tool grinders, special tool grinders and precision machine tools.Our company mainly produces drill grinder, end mill grinder, tap grinder, chamfering machine, saw blade grinder, lathe grinder, universal tool grinder, etc.

Based on foreign advanced production management models, we strive for excellence and pursue the design and manufacturing concepts that are most suitable for customers' needs. We have persisted in innovation and continuous improvement for many years. We have independently developed and produced more than 60 kinds of tool grinding equipment. One of the leading manufacturers of grinding tool equipment. Our products are sold to the United States, Germany, Japan, Korea, Taiwan and other countries. Our company mainly produces drill grinder, end mill grinder, tap grinder, chamfering machine, saw blade grinder, lathe grinder, universal tool grinder, etc. We are bound to make the best products and look forward to your attention!

FAQ
1.What is the minimum order quantity?
A: Can accept a set,Can also customize the machine casing color required by customers.
2.What is your port?
A: Ningbo / Shanghai.
3.Can we use our own freight forwarder?
A: Yes. We have cooperated with many freight forwarders. If you need, we can recommend you some freight forwarders, you can compare prices and services and then make your own choice.
4.What if the machine will not operate?
A: You can contact our salesman at any time after receiving the goods, customize the machine casing color required by customers.
5.Can we use our own logo or pattern as a sticker?
A: Yes, you can contact the salesperson. And sent us more details about the LOGO or sticker.Can also customize the machine casing color required by customers.
6.How long is your delivery time?
A: If in stock, it usually takes 5 to 10 days. 15-30 days if not in stock, depending on quantity.
7.Do you provide samples? Is it free or extra?
A: Yes, we can provide samples at a cheaper price, but do not pay shipping costs.
