• Model NO.：600-4i
• Working Style：Grinder
• Disc Diameter：320mm
• Variable Speed：350-1680rpm
• Name：Polishing Grinding Machine
• Power：7.5kw,10HP
• Potating Speed：350-1680rpm
• Weight：235kg,518lbs
• Working Width：600mm
• Inverter：7.5kw,10HP
• Voltage Amperage：380-440V Three Phase
• Transport Package：Standard Wooden Packing
• Specification：120*75*115cm
• Trademark：XINGYI
• Origin：Fujian, China
• Production Capacity：3000,Year

Basic Info.

Model NO. 600-4i Working Style Grinder Disc Diameter 320mm Variable Speed 350-1680rpm Name Polishing Grinding Machine Power 7.5kw/10HP Potating Speed 350-1680rpm Weight 235kg/518lbs Working Width 600mm Inverter 7.5kw/10HP Voltage Amperage 380-440V Three Phase Transport Package Standard Wooden Packing Specification 120*75*115cm Trademark XINGYI Origin Fujian, China Production Capacity 3000/Year

Product Description

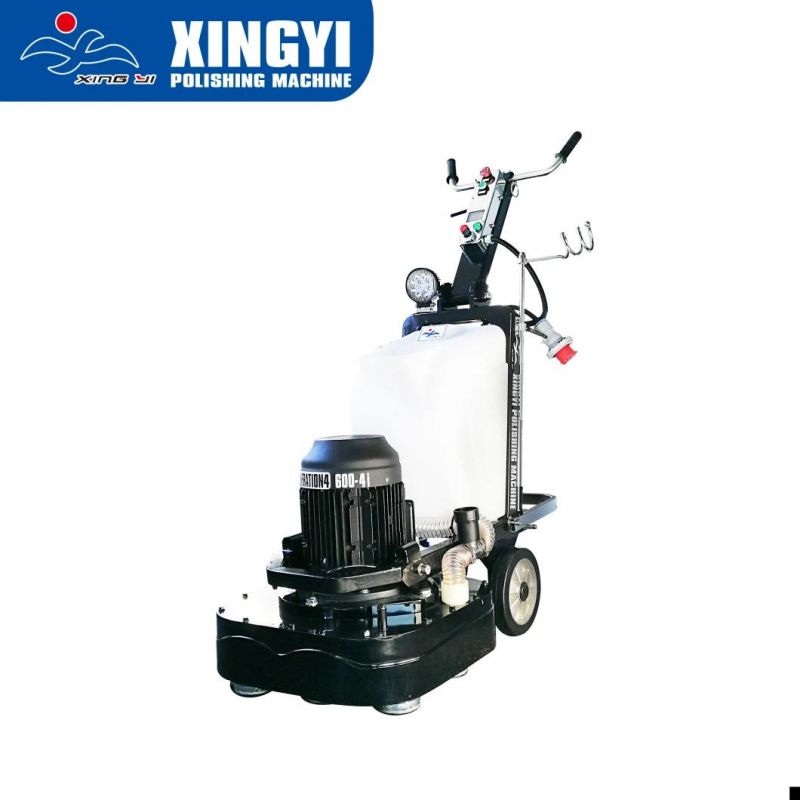

600-4I Concrete Grinding Machine Epoxy Flooring Tools

Product Description



Integrating the gear box with the cover:

1.Gains in the weight and horsepower of the machine,good for improving the efficiency in grinding the uneven floors.



2.The motor direct coupling the gear box to decrease the machine vibration,

reduce the noise of the machine and increase the evenness after grinding.



3.The increased output shaft and bilayer oil seal can solve the problems of oil leak and short

lifetime of gear box.This will greatly increase the work-efficiency of your projects.



4.The grinding disc high coupling the rubber pad is good for improving the grinding force and

the grinding effect of the machine,get to shine in a short time.



Product advantage:

The X588 is a high efficient machine that functions as well in large areas as small,

which means huge time-savings.



Range of Usage: Concrete,Cement, terrazzo, Epoxy paint,grinding and polishing.

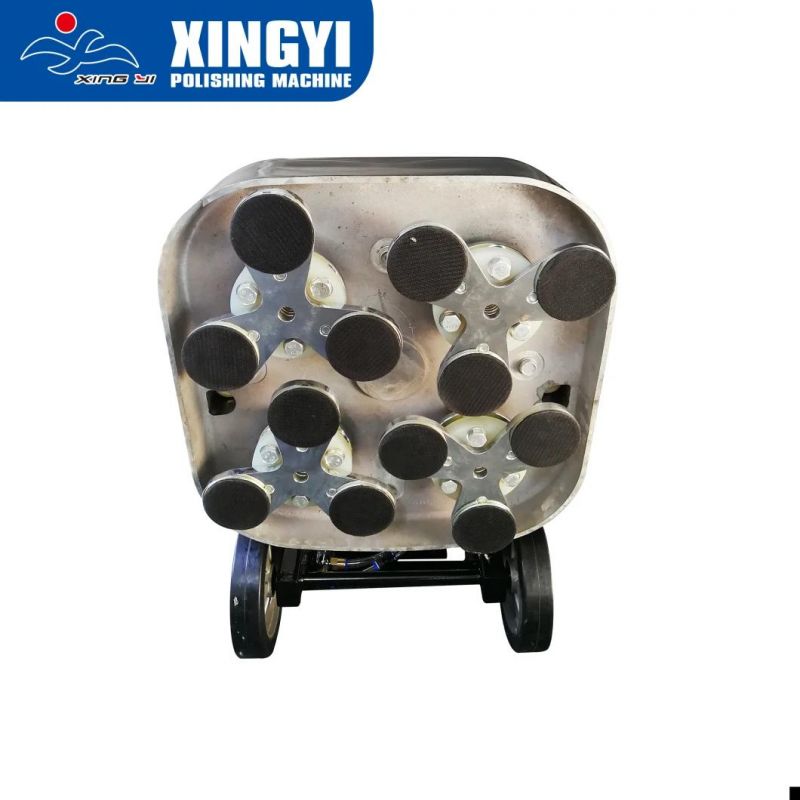

1. Planetary counter rotation for excellent grinding surfaces.

2. Speed is adjustable and do dry & wet grind.

Technical Specification:

Model	XY-600-4i
Motor	10HP
Working width	600mm
Rotating speed	350-1680rpm
Grinding head	320mm*4
Voltage	220V
Water tank	28L
Weight	235KG

granite edge polisher

Customer Demo >

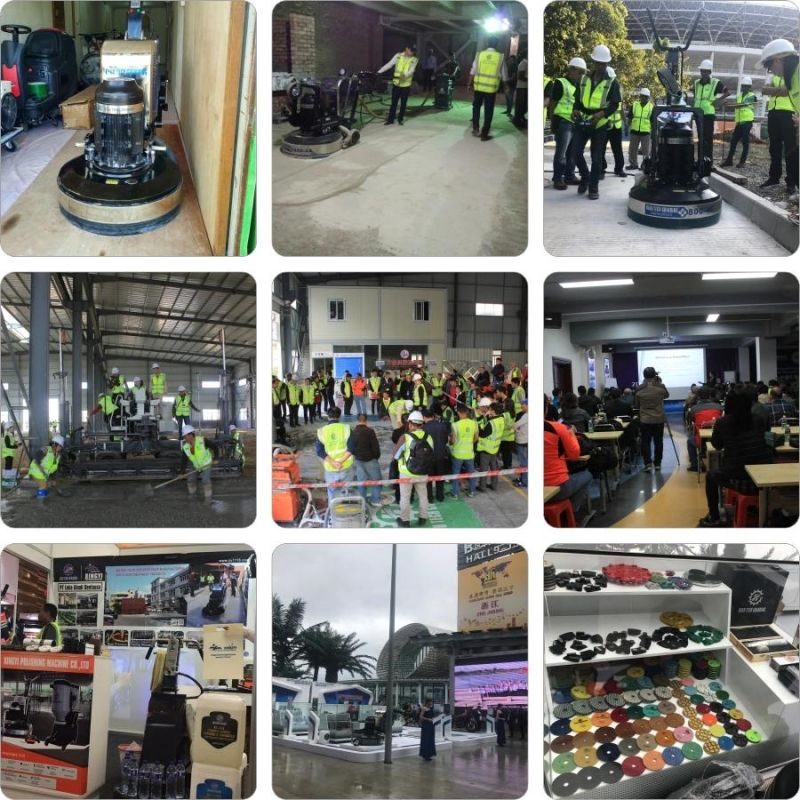

 We have been to Singapore ,Malaysia ,Thailand ,Egypt and Saudi Arabic etc countries to offer our system solutions on polishing of concrete ,granite and tank stone.

>





Our Certificarions >>





Customer Evaluation >>




FAQ >>

Q: Are u the manufacturer ?
A: Yes of course, we are the manufacturer ! we welcome clients to visit our factory to inspect our
produce process at any time.Our factory is located in Jinjiang, China ( Xiamen airport, Xingyi pick up )

Q: How long your product's warranty ?
A: One year warranty .

Q: What is your MOQ ?
A: 1 set

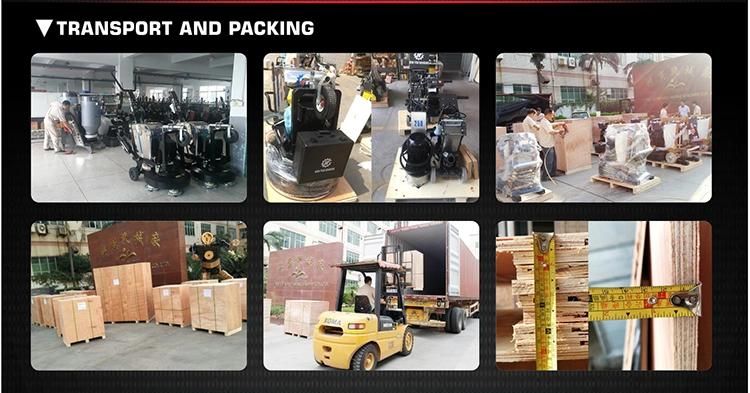

Q: What is your packaging ?
A: We package in Plywood case.

Q: What is your payment method ?
A: 100%^Or 50% T/T advance, the balance should be pay off before shipment.

Q: Do your machine can be custom-made ?
A: Yes, we can design and produce according to client's requirements.

Q: What is your delivery time ?
A: 7~20 days ( according to the total quantity)
