• Model NO.：RAY-YM03
• Working Style：High-speed universal
• Disc Diameter：8"
• Variable Speed：With Variable Speed
• Plate：Double
• Transport Package：1 Set, Wooden Case
• Specification：8"
• Trademark：Ray Shine
• Origin：China
• HS Code：8486209000
• Production Capacity：50 Set, Month

Basic Info.

Model NO. RAY-YM03 Working Style High-speed universal Disc Diameter 8" Variable Speed With Variable Speed Plate Double Transport Package 1 Set/ Wooden Case Specification 8" Trademark Ray Shine Origin China HS Code 8486209000 Production Capacity 50 Set/ Month

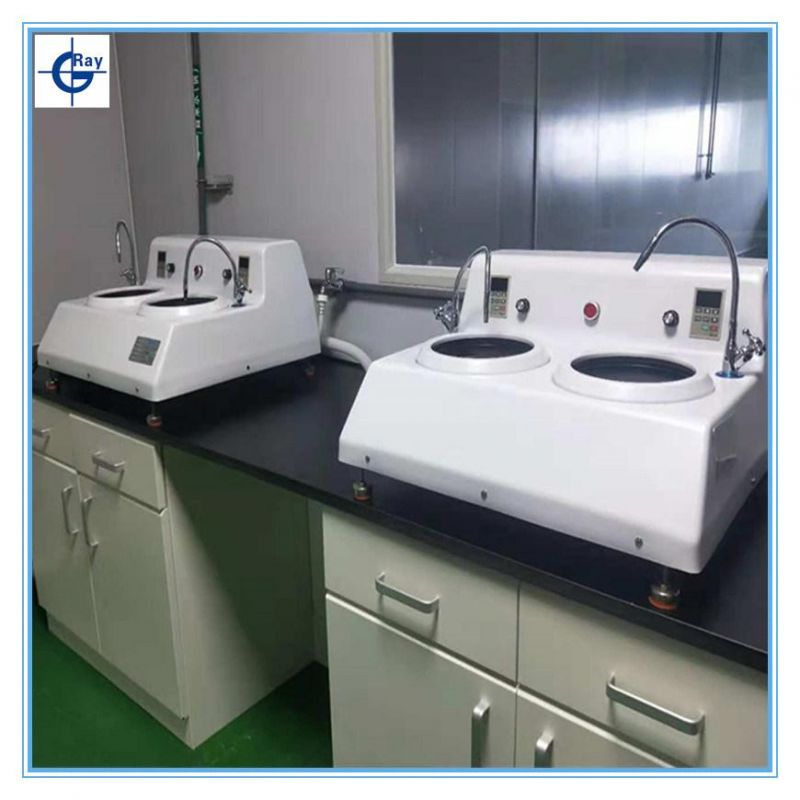

Product Description

Tech Parameter

Model	RAY-YM02	RAY-YM03
Grinding plate Qty	2	2
Control mode	Double disc, single control	Double disc, double control
Grinding plate Qty	Φ200MM	Φ200MM
Power	350W *1 motor	700W (2 motor)
Weight	45Kg	50Kg
Bearing	NSK	NSK
Machine dimension	660*600*350MM	660*600*350MM(Φ200)
Power supply	AC/220V	AC/220V
Rotate speed	0~1000rpm	0~1000rpm
The shell	ABS	ABS


 Usage

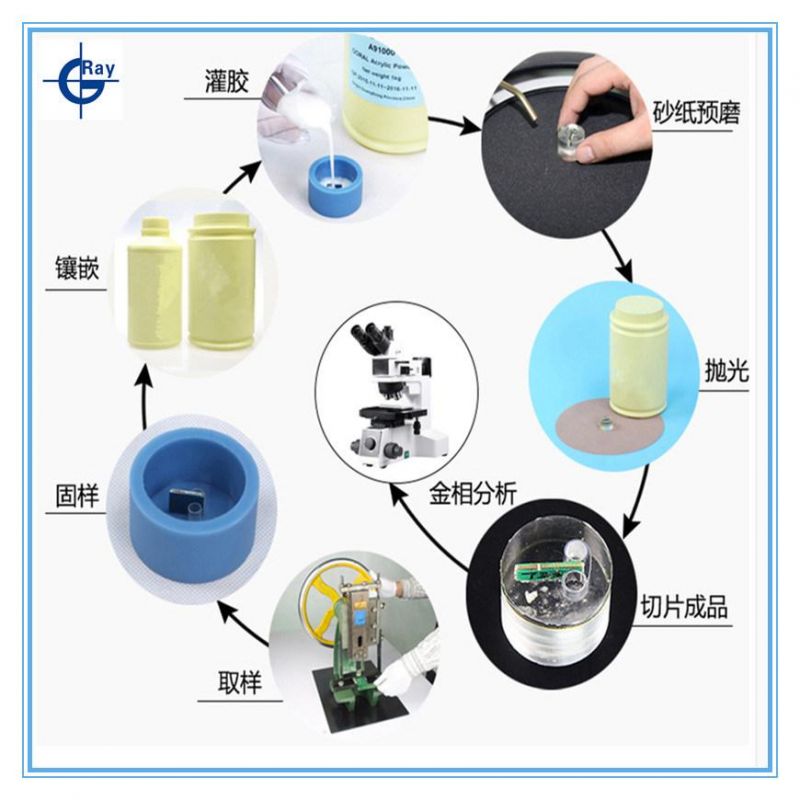

It is used to mull and polish the micro slices of the metallographic analysis system which can make slices smooth and lucency enough for further analysis which is used for PCB,IC boards.





 Features

It adopts high quality actuator and motor which achieves vibration noise low and life long.

The mechanical design is rational, so the plate circumgyrates stably.

The rotating speed can be changed steplessly, and in digital display.

Water and electricity is separated which makes our system safe and reliable.

Conform to IPC-TM-650Rev.DNO.2.1.1 1998 standard.

Conform to GB/T4677-20028.3 standard





 Company Introduction
Ray-Shine Electronic (HK) Ltd (Dongguan Dinglu Electronic Tech Co.,Ltd)is a high&new-tech enterprise located in Dongguan city, Guangdong Province China. We expertised in PCB production and percision inspection machine equipment such as prepreg cutting machine, metallographic machines, line width testing machine, panel thickness testing machine, X-ray inspection machine ect, and PCB related consumables such as PP sheet, filter cartridge, protective film  researching, manufacturing, and selling and technology support.








Packing and Shipping

Packing Method:
Standard wooden package

Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
