• Model NO.：CS12-88
• Firing Temperature：1680
• OEM：design According Customer′s Drawings
• Application Equipment：Chute, Bunker etc
• Transport Package：Cartons Fixed on Pallet
• Specification：100*100MM 300*300MM 500*500 MM
• Trademark：CHEMSHUN
• Origin：Jiangxi, China
• HS Code：69091200
• Production Capacity：350ton,Month

Basic Info.

Model NO. CS12-88 Firing Temperature 1680 OEM design According Customer′s Drawings Application Equipment Chute, Bunker etc Transport Package Cartons Fixed on Pallet Specification 100*100MM 300*300MM 500*500 MM Trademark CHEMSHUN Origin Jiangxi, China HS Code 69091200 Production Capacity 350ton/Month

Product Description

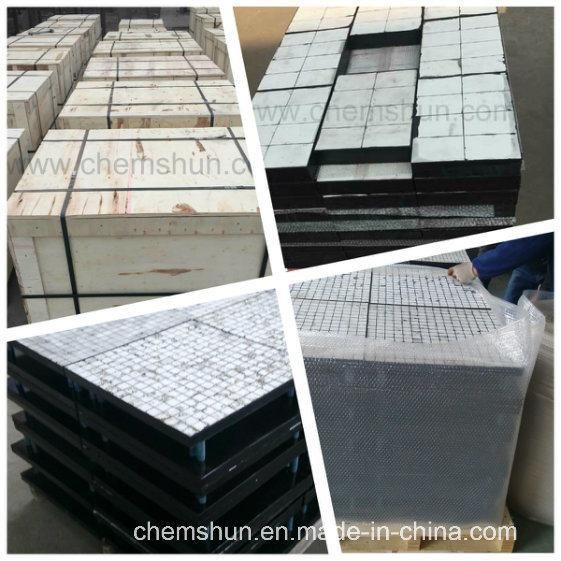

Ceramic Rubber Chute Plate as Abrasive Liner Materials (rubber ceramic tile)

---- Character: High impact, abrasion resistance, corrision resistance, high temperature resistance

-----size: 200*200 mm 300*300 mm 500*500 mm

-----structure: Rubber+ ceramic available, rubber +ceramic+steel plate available

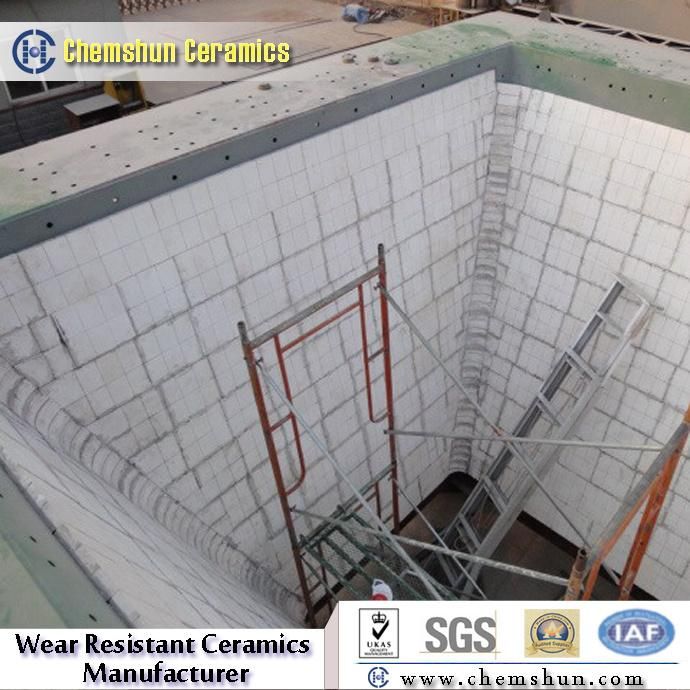

------application industry: Mining, mineral, cement, coal power generation, steel industry, port, material handling system



------application machine:

-- ash pipeline -- mixer troughs
-- belt discharge chutes -- pipe bends
-- bunker spirals -- pipes
-- bunkers -- pneumatic backfill lines
-- channels -- priling tower bottoms
-- chutes -- pulpers
-- circulating air separators -- receivers
-- continuous flow conveyors -- screw conveyor troughs
-- cyclones -- separators
-- dissolving tanks -- setting basins
-- drying sections -- shaft spiral
-- dust collectingequipment -- dust collecting pipes -- silos
-- fans -- sinter troughs
-- flue gas ducts -- tailing lines
-- flumes -- tanks
-- gravele lrease tunnels -- hoppers of rotary dryers -- tubular chain conveyors
-- hydro-cyclones -- turbo separators
-- launders -- vibrating troughs
-- washing drums



--------Chemshun wear ceramic liner property :

Item	Index
Content of alumina	95% or 92% available
Denisty	≥ 3.5g/cm3
Rockwell hardness	≥ 80 HRA
Impact strength	≥ 850 Mpa
Fracture toughness	≥ 4.8 Mpa . m½
Bending strenght	≥290 Mpa
Thermal conductivity	20 W/ M. K
Thermal expansion coefficient	7.2 * 10-6M/M.K
