• Model NO.：Ceramic beads
• Hardness：Superabrasive
• Transport Package：25 Kgs Per Plastic Busket
• Trademark：Yalong
• Origin：China
• HS Code：69091200
• Production Capacity：20000 Tons Per Year

Basic Info.

Model NO. Ceramic beads Hardness Superabrasive Transport Package 25 Kgs Per Plastic Busket Trademark Yalong Origin China HS Code 69091200 Production Capacity 20000 Tons Per Year

Product Description

Ceramic Blasting & Peening Media 65 Zirconia Silicate Beads
Ceramic Blasting & Peening Media
Ceramic Blasting Media
Ceramic Peening Media

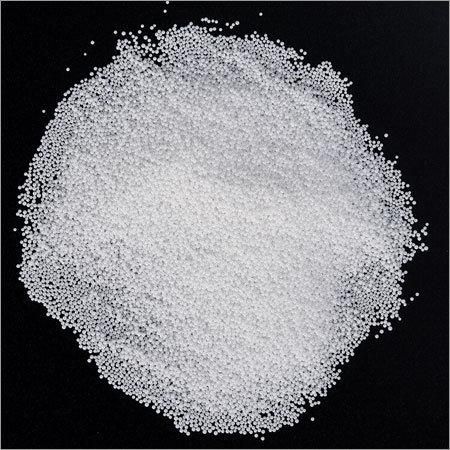

Ceramic Beads

Ceramic bead is a spherical blasting and peening media produced by the fusion of oxides at a very high temperature. Ceramic bead is extremely tough, high impact properties coupled with good hardness, ensuring consistent peening intensities and surface finishes.
Application
Removal of carbon deposits and other impurities from glass making and rubber tire moulds, without damaging the surface or critical edges
Deburring thin gaskets
Shot peening ferrous and non ferous items includidng aircraft engine blades, turbines etc. Internal and external thread peening
Cleaning, sanitizing and surface finishing of fabricated stainless steel items for food and pharmaceutical industries. Medical implant and instrument surface finishing
Ceramic beads can be used in Air Blast and Wet Blast system plus Turbine Shot Blast equipment.

Technical Specification

Items	Specification
Composition wt%	60-65% ZrO2 30%  SiO2
Bulk Density Kg/L	2.6-2.7(Φ2mm)
Specific Density g/cm3	4.0-4.1
Hardness Moh's	>8.5
Elastic modulus GPa	200
Thermal Conductivity W/m.K	3
Fracture Toughness MPam1-2	7
Grain size µm	≤0.5
Thermal expansion Coefficient(20-400 °C) 10x10 -6 / °C(20-400)	9.6

Available Size:

ø 0.2-0.4mm	ø 0.4-0.6mm	ø 0.6-0.8mm	ø 0.8-1.0mm	ø 1.0-1.2mm
ø 1.2-1.4mm	ø 1.4-1.6mm	ø 1.5-2.0mm	ø 2.0-2.5mm	ø 2.5-3.0mm
ø 3.0-3.5mm	ø 4mm	ø 5mm	ø 8mm	ø 10mm

Other size can be customized
