100L Super Fineness Bead Mill for Dye Pigment Paint Grinding Manufacturer
Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.- Type：Mill
- Power Source：Electricity
- Object：Turbo Type
- Application：Chemical
- Disc(Wheel) Type：Grinding Disc
- Material：Zirconia, Stainless Steel
Base Info
- Working Style：Bead Grinding
- Function：Wet Grinding, Milling
- Grinding Medium：Zirconia Beads
- Applicable Industry：Coating, Paint, Ink, Pigment, Latex
- Materials：Stainless Steel or Pure Zirconia
- Usage：Industrial
- Product Type：Paint
- Rotor Type：Turbo Type
- Feeding：Diaphragm or Gear Pump
- Transport Package：Wooden Case
- Specification：ENW-5L----ENW-100L
- Trademark：ELE
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：200-2000L
Description
Basic Info.
Working Style Bead Grinding Function Wet Grinding/ Milling Grinding Medium Zirconia Beads Applicable Industry Coating, Paint, Ink, Pigment, Latex Materials Stainless Steel or Pure Zirconia Usage Industrial Product Type Paint Rotor Type Turbo Type Feeding Diaphragm or Gear Pump Transport Package Wooden Case Specification ENW-5L----ENW-100L Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 200-2000LProduct Description

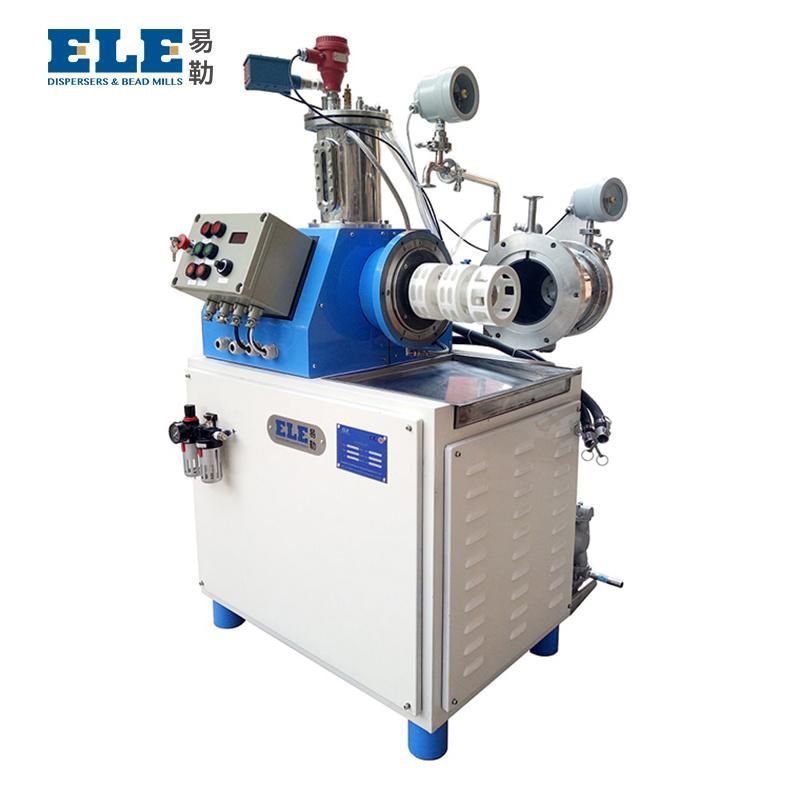

100L Super Fineness Bead Mill for dye pigment paint grinding manufacturer
Model:ENW Series
Chamber volume:5/10/15/30/50/100L
Introduction:
It is widely used in the industry production of paint,color paste,printing ink,papermaking,adhesive,drugs,chemical industry etc.
To mix,dissolve,and disperse two or more kinds of liquids and solids.
Features:
Mechanical Seal:ELE adopt Cartridge Mechanical Seal, easy to install, with excellent sealing effect, much stronger, can withstand pressure above 10kg.
Centrifugal Separation Unit:ELE add a centrifugal separation unit after the discs, that makes the beads much well-distributed, so get narrow range of particle size and better fineness.
Efficient Discharging:Unique static tubular fence type seperation sieve with narrow gaps and large area, ensure the material discharging smoothly, meanwhile lessen the impact between beads and sieve, prolong the service life.
Technical Data:
Specifications:
| Model | Chamber Volume (ml) | Main Power (kw) | Rotation Speed (rpm) | Capacity (L/h) | Dimension L*W*H (mm) | Weight (kg) |
| ENW-5 | 5 | 7.5 | 1440 | 200 | 1300*1050*450 | 650 |
| ENW-15 | 15 | 18.5 | 1440 | 500 | 1600*1450*650 | 1200 |
| ENW-20 | 20 | 22 | 1260 | 800 | 1600*1450*650 | 1350 |
| ENW-30 | 30 | 37 | 1260 | 1200 | 1650*1550*750 | 1700 |
| ENW-40 | 40 | 45 | 980 | 1500 | 1750*1650*850 | 2100 |
| ENW-50 | 50 | 55 | 980 | 2000 | 1900*1850*850 | 2300 |
| ENW-100 | 100 | 110 | 860 | 3000 | 2300*2150*950 | 380 |

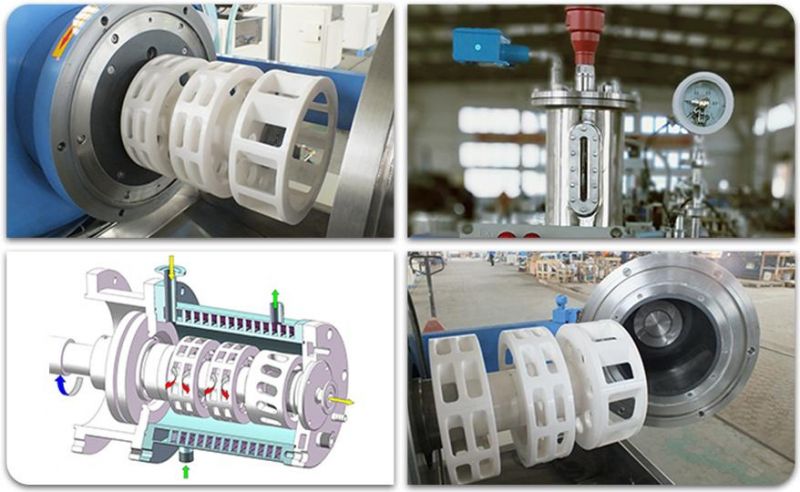

Detail Photos:
