• Model NO.：EGM
• Working Style：High-speed universal
• Disc Diameter：180mm
• Variable Speed：With Variable Speed
• Trade Mark：Ele
• Model：Ebw
• Usage：Ink, Emulsion, Paint, Pigment, Coating
• Materials：Ss304,Ss316L
• Product Type：Paint
• Transport Package：Wooden Case
• Specification：customize
• Trademark：ELE
• Origin：China
• HS Code：8479820090
• Production Capacity：30-3000L

Basic Info.

Model NO. EGM Working Style High-speed universal Disc Diameter 180mm Variable Speed With Variable Speed Trade Mark Ele Model Ebw Usage Ink, Emulsion, Paint, Pigment, Coating Materials Ss304/Ss316L Product Type Paint Transport Package Wooden Case Specification customize Trademark ELE Origin China HS Code 8479820090 Production Capacity 30-3000L

Product Description

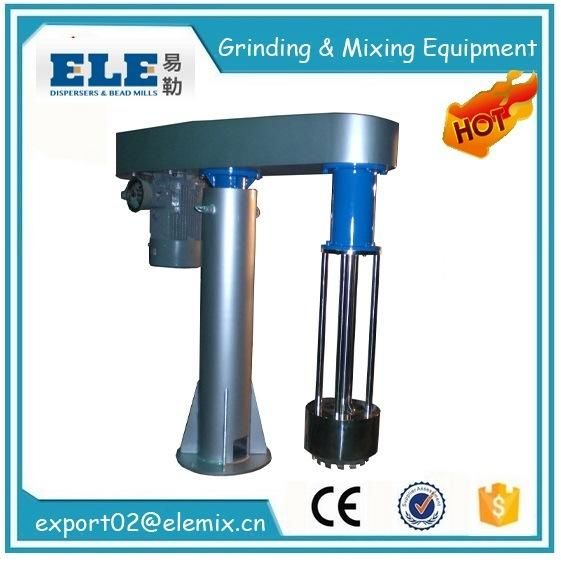

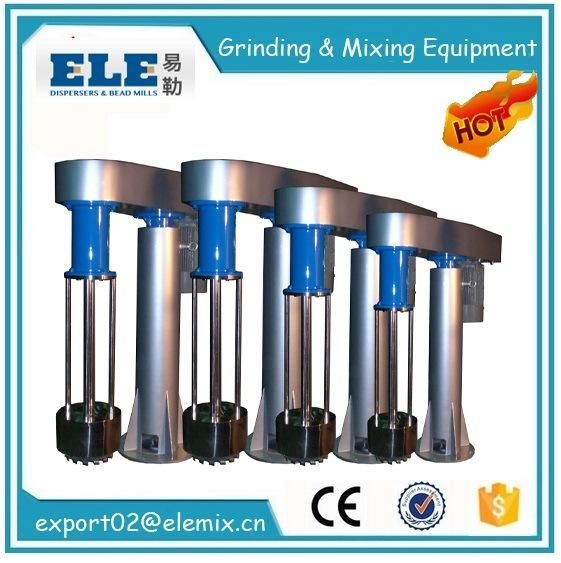

EBW Paint Basket Mill

Working principle
With dispersion disc and beads mill complex structure, basket mill integrates high speed dispersing and superfine wet-grinding in the same machine. Dispersing disc speed up the particle wetting and contribute dispersion effect, so high viscosity materials can be dispersed rapidly for high speed running of dispersion disc.

Features
1, no need using of pump, pipe, valve, other tank, and thus no leftover, large output
2, low cost, high efficiency, short processing time
3, one machine can process kinds of materials, users can change to produce different products and colors.
4, flexible operation, one worker can operate several basket dispersing mills.
5, hydraulic lifting

Specifications

Model	Chamber volume (L)	Power (kw)	Speed (rpm)	Capacity (L)	Media size (mm)	Stroke (mm)
EBM-4	3.6	4	0-3000	< 120	1.8-2.4	800
EBM-7.5	4.9	7.5	0-1500	< 200	1.8-2.4	900
EBM-11	6.6	11	0-1500	< 260	1.8-2.4	900
EBM-15	9.1	15	0-1500	< 350	1.8-2.4	900
EBM-18.5	17.2	18.5	0-1500	< 500	1.8-2.4	1100
EBM-22	20.1	22	0-1500	< 800	1.8-2.4	1100
EBM-30	32.3	30	0-1500	< 1200	1.8-2.4	1100
EBM-37	39.2	37	0-1500	< 1500	1.8-2.4	1600
EBM-45	52.3	45	0-1500	< 2000	1.8-2.4	1600
EBM-75	85.4	75	0-1500	< 3000	1.8-2.4	1800
