• Model NO.：EBM
• Bearing：NSK
• Transport Package：Wooden Case
• Specification：EBM-4----EBM-75
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：879820090
• Production Capacity：30-3000L

Basic Info.

Model NO. EBM Bearing NSK Transport Package Wooden Case Specification EBM-4----EBM-75 Trademark ELE Origin Shanghai, China HS Code 879820090 Production Capacity 30-3000L

Product Description

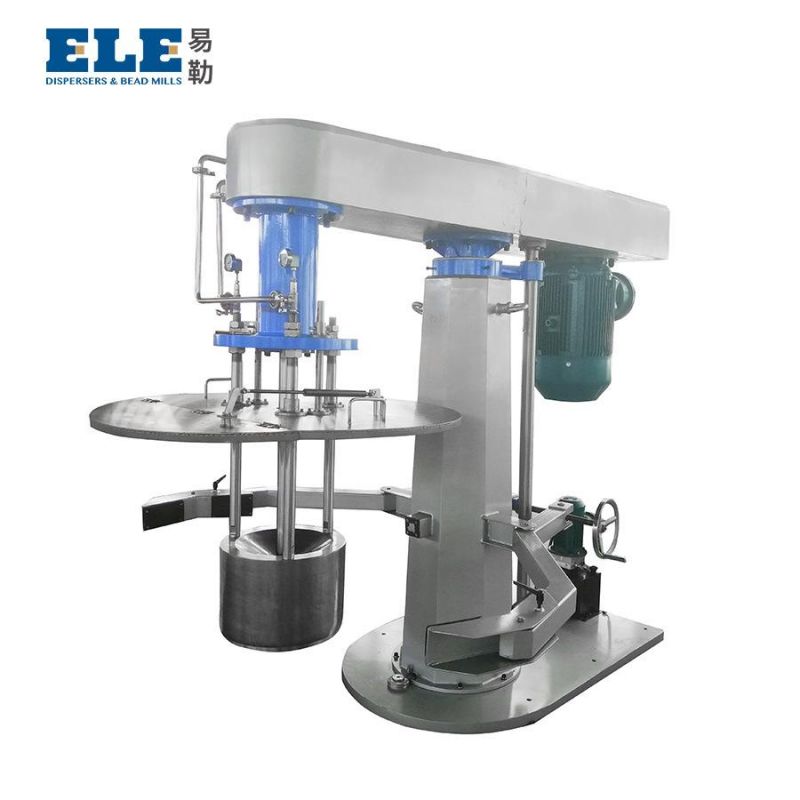

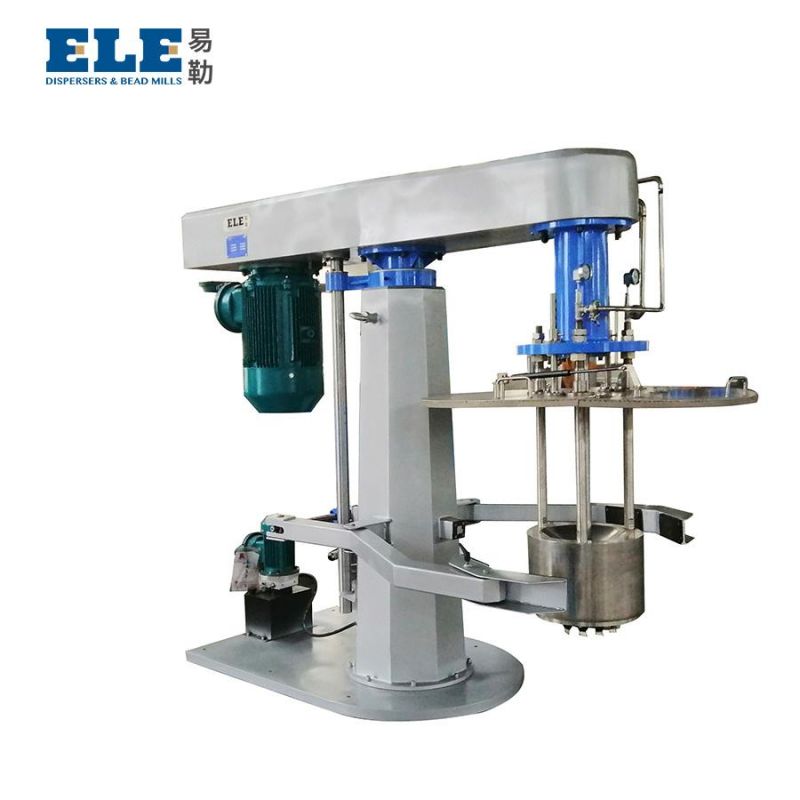

Pigment Basket Mill (EBM)

Working principle

with dispersion disc and beads mill complex structure, Basket Bead Mill (EBW)
Integrates high speed dispersing and superfine wet-grinding in the same machine. Dispersing disc speed up the particle wetting and contribute dispersion effect, so high viscosity materials can be dispersed rapidly for high speed running of dispersion disc.

Features

1, no need using of pump, pipe, valve, other tank, and thus no leftover, large output
2, low cost, high efficiency, short processing time
3, one machine can process kinds of materials, users can change to produce different products and colors.
4, flexible operation, one worker can operate several basket dispersing mills.
5, hydraulic lifting




Specifications

Model	Chamber volume (L)	Power (kw)	Speed (rpm)	Capacity (L)	Media size (mm)	Stroke (mm)
EBM-4	3.6	4	0-3000	< 120	1.8-2.4	800
EBM-7.5	4.9	7.5	0-1500	< 200	1.8-2.4	900
EBM-11	6.6	11	0-1500	< 260	1.8-2.4	900
EBM-15	9.1	15	0-1500	< 350	1.8-2.4	900
EBM-18.5	17.2	18.5	0-1500	< 500	1.8-2.4	1100
EBM-22	20.1	22	0-1500	< 800	1.8-2.4	1100
EBM-30	32.3	30	0-1500	< 1200	1.8-2.4	1100
EBM-37	39.2	37	0-1500	< 1500	1.8-2.4	1600
EBM-45	52.3	45	0-1500	< 2000	1.8-2.4	1600
EBM-75	85.4	75	0-1500	< 3000	1.8-2.4	1800
