• Model NO.：DS-5
• Manufacturing Arts：Sinter
• Core Thickness：5.0,6.0,6.5,7.2,8.0,9.3,9.5mm
• Customized：Customized
• OEM&ODM：Yes
• Delivery Time：3-5days
• Shipment：by Express,by Air,by Sea
• Segment Shape：M Shape
• Transport Package：Wooden or Carton Box
• Specification：SGS, CE
• Trademark：JDK
• Origin：Fujian, China
• HS Code：82077010
• Production Capacity：10000PCS,Day

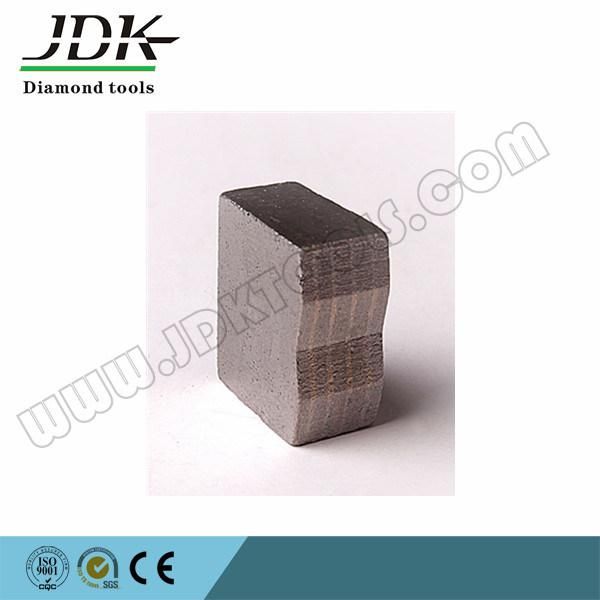

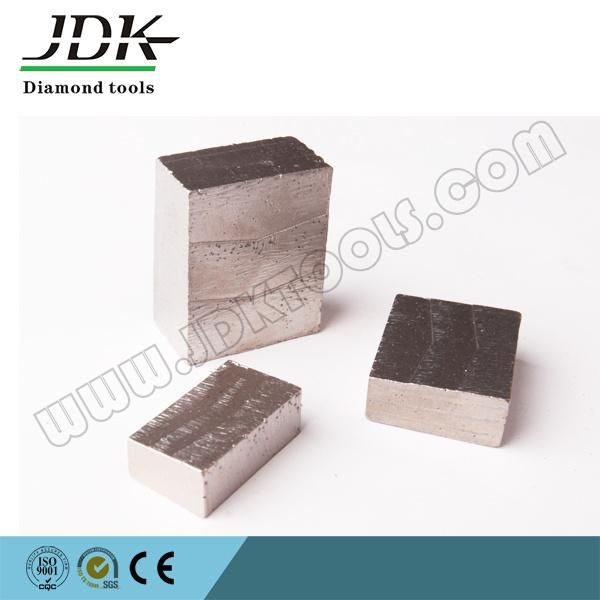

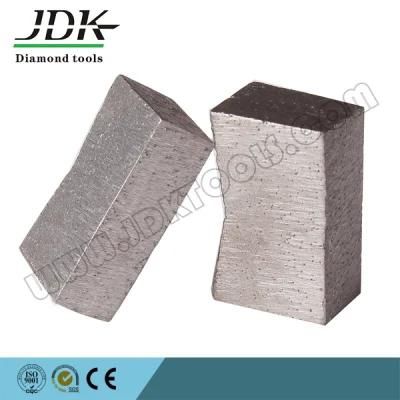

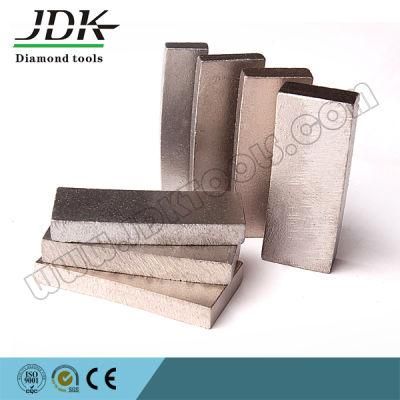

Features:     1.The unique "<<" "K" "M" design of segment  makes fast diamond exposed and high cutting efficiency 2.The design of segment allows ideal debris removal and bettering cooling.3.It works in low nosie,small cutter slot which ensure maxium use of stone and uniform thicknessProduct Name SpecificationCore ThicknessSegment DimensionSegment NumberApplicationJDK Block Cutting Segment   Φ9005.024x7.0/6.2x 15(20)64GraniteΦ10005.024x7.0/6.2x 15(20)70Φ12005.524x7.4/6.6x 15(20)80Φ14006.024x8.0/7.2x 15(20)92Φ14006.524x8.4/7.6x 15(20)92Φ16007.224x9.2/8.4x 15(20)104/108Φ18007.524x10.0/9.2x 15(20)120Φ20008.024x10.6/9.8x 15(20)128/132Φ22009.024x11.0/10.2x15(20)132/136Φ25009.024x11.5/10.5x15(20)140Φ27009.024x12.5/11.5x15(20)140Φ30009.324x13/12x 20160Φ35009.524x13.5/13.0/12.2x30180Other specification are available upon request.





Our Feature:

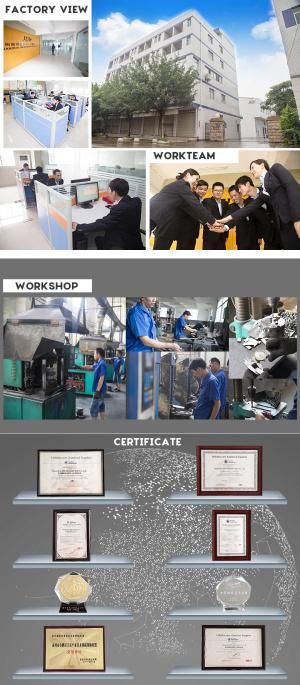

Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM

Our advantage:

1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.

Payment:

T/T, Western Union, L/C, Cash

Delivery day:

For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.

Packaging:

The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.

Shipment:

<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
