Lapping Machine (Big diameter) for Cemented Carbide Drawing Die
Wuxi Yiyuan Machinery Co., Ltd.- Type:Die Grinder
- Power Source:Electricity
- Object:Turning Tool
- Application:Construction
- Disc(Wheel) Type:Grinding Disc
- Material:Metal
Base Info
- Model NO.:BLJX-02
- Working Style:High-speed universal
- Variable Speed:With Variable Speed
- Size:1600*920*1070
- Wire Dies Hole Diameters:0.20mm to 5.50mm
- Transport Package:Wooden Box
- Trademark:YY
- Origin:China
- HS Code:8460402000
- Production Capacity:100set,Month
Description
Basic Info.
Model NO. BLJX-02 Working Style High-speed universal Variable Speed With Variable Speed Size 1600*920*1070 Wire Dies Hole Diameters 0.20mm to 5.50mm Transport Package Wooden Box Trademark YY Origin China HS Code 8460402000 Production Capacity 100set/MonthProduct Description

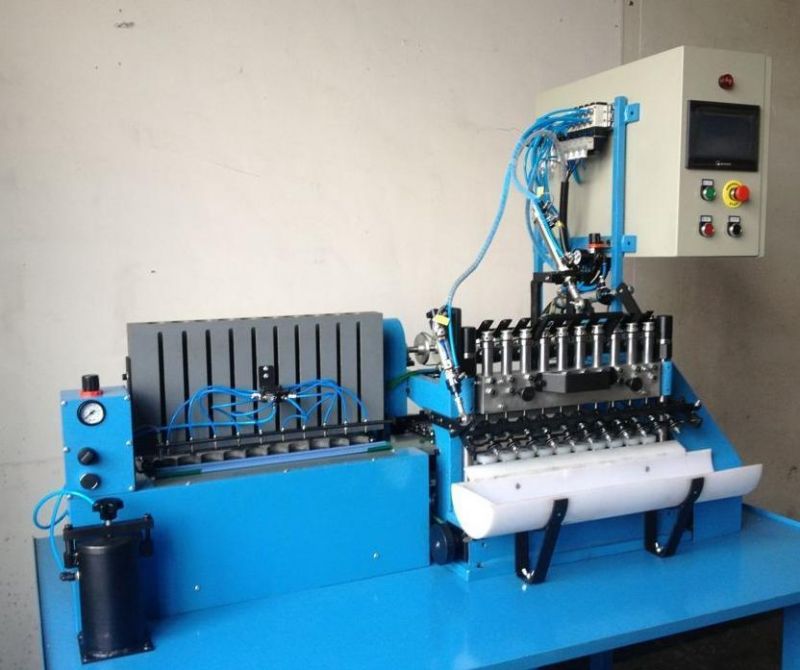

Lapping machine (Big diameter)(BLJX-02)Machine PurposeThis machine is especially designed for polish the big diameter carbide wire drawing dies reduction angle and back relief angle , typically dry drawing dies .
This new generation lapper have more efficient and accurate capability with ten lapping head working together , meanwhile it is easy to operation and low cost of maintance .It could be achieve the full automatic production process.
Equipment parameters Wire dies hole diameters : 0.20MM to 5.50MM
Wire dies case dimension : standard as Ø38mm or Ø42mm , Height 25mm~28mm
Lapping angle capability : according to your request , typically from 7°to 45°
Working Pin Size : ø5*200mm ø8*220mm
Equipment dimension :1600*920*1070( Working table :1600*1000*850)
CharactersHigher efficient with tens dies lapping one time ,could be add diamond paste automatically.
Automatic feeding and PLC control
Easy for operation and lower maintance cost
Stable quality performance
