• Model NO.：EBM
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Grinding Medium：Zirconia Beads
• Certification：CE,SGS
• Transport Package：Wooden Case
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：200-2000L

Basic Info.

Model NO. EBM After-Sales Service Provided Engineers Available to Service Machinery Overseas Grinding Medium Zirconia Beads Certification CE/SGS Transport Package Wooden Case Trademark ELE Origin Shanghai, China HS Code 8479820090 Production Capacity 200-2000L

Product Description

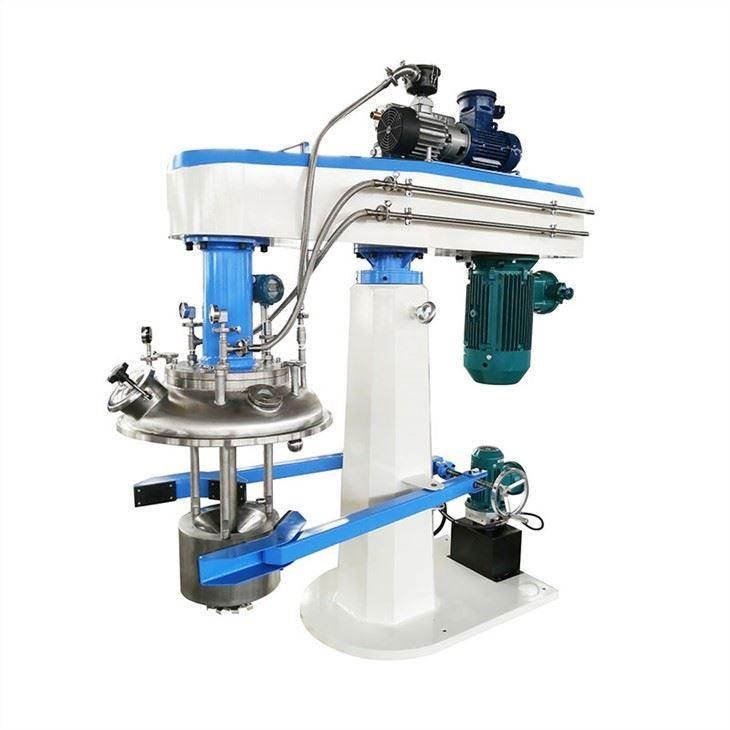

 Basket Mill


1. Introduction


    Basket Mill is specially for pesticide SC production, realize mixing and grinding together. No need extra disperser mixing machine. Working principle The rotating motor drives the pins and dispersing disc to rotate at high speed, which makes the upper part of dispersing disc and inner grinding.

2.Working principle

The rotating motor drives the pins and dispersing disc to rotate at high speed, which makes the upper part of dispersing disc and inner grinding chamber become vacuum. The slurry is inhaled into grinding chamber. The grinding medium driven by the driving pin inside the chamber produces force in all directions, which put materials under the action of constant collision and friction to smaller the particle size and narrow the particle size distribution. The vortex flow generated by high speed rotation dispersing disc absorbs materials out from the basket (grinding chamber), and the milled materials are absorbed again, excellent dispersing and grind result will be achieved.



Grinding chamber with jacket for cooling, prevent the high temperature, to get finer particle size.



3. Technical specification

Model	Grinding Basket Volume(L)	Main Motor(KW)	Speed(rpm)	Capacity(L)	Grinding Media(mm)	Hydraulic method (mm)
ESM-0.75	0.28L	0.75	2950	2.5	0.4~2.6	Electrical
ESM-1.1	0.4L	1.1	2950	4	0.4~2.6	Electrical
ESM-2.2	0.7L	2.2	2950	8~15	0.4~2.6	Electrical
EBM-4	2L	4	2950	30~50	0.4~2.6	Electrical
EBM-7.5	4L	7.5	2400	70~150	0.4~2.6	Hydraulic
EBM-11	10L	11	1300	100L~250	0.4~2.6	Hydraulic
EBM-15	12L	15	1300	150L~350	0.4~2.6	Hydraulic
EBM-18.5	14L	18.5	1200	200~400	0.4~2.6	Hydraulic
EBM-22	16L	22	1200	200~500	0.4~2.6	Hydraulic
EBM-30	22L	30	1150	250~600	0.4~2.6	Hydraulic
EBM-37	30L	37	1000	400~800	0.4~2.6	Hydraulic
EBM-45	40L	45	900	500~1000	0.4~2.6	Hydraulic
EBM-55	55L	55	830	800~1300	0.4~2.6	Hydraulic

Note:
