Self-Propelled Concrete Floor Grinding for New Style

Fujian Xingyi Polishing Machine Co., Ltd.
  • Type：Concrete Grinding Machine
  • Name：Polishing Grinding Machine
  • Power：15kw,20HP
  • Potating Speed：350-1680rpm
  • Weight：535kg,1180lbs
  • Working Width：700mm

Base Info

  • Model NO.：700-4A
  • Inverter：18.5kw,25HP
  • Voltage Amperage：220V-240V Three Phase
  • Transport Package：Standard Wooden Packing
  • Specification：124*77*132cm
  • Trademark：HIGH TECH GRINDING
  • Origin：Fujian, China
  • Production Capacity：3000,Year

Description

Basic Info.

Model NO. 700-4A Inverter 18.5kw/25HP Voltage Amperage 220V-240V Three Phase Transport Package Standard Wooden Packing Specification 124*77*132cm Trademark HIGH TECH GRINDING Origin Fujian, China Production Capacity 3000/Year

Product Description

self-propelled concrete floor grinding for new styleSelf-Propelled Concrete Floor Grinding for New Style

Product Description

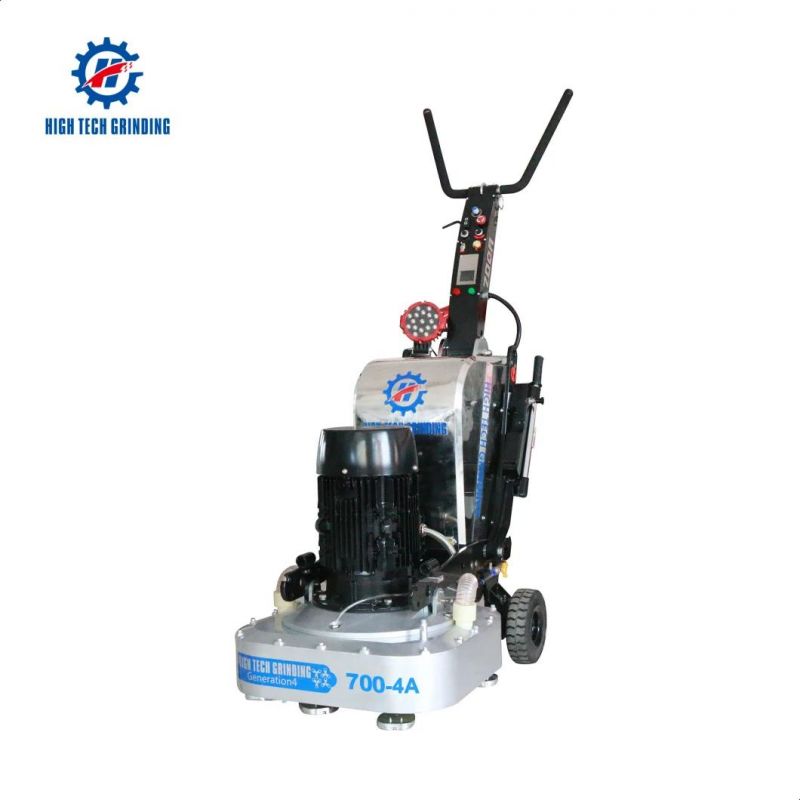

1.The HTG-700-4A concrete floor grinder is the perfect machine,with remote control ability,variable speed adjust providing you with more versatility and more flatly contrast with others.
2.Make you work more 30%-50% efficient ,The labor cost be saved completely.

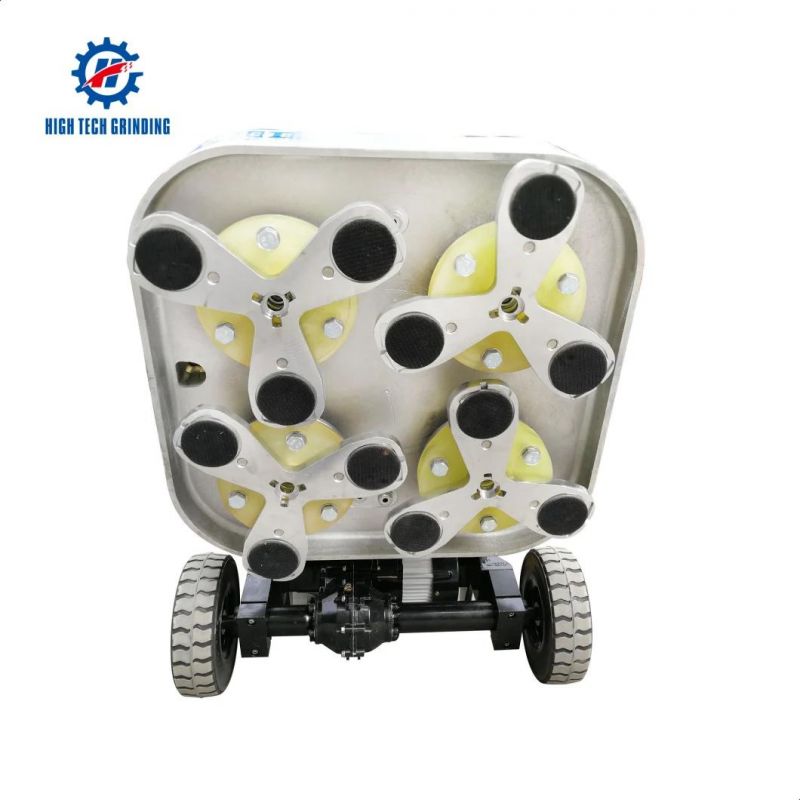

3.Planetary heads made with all steel gears,
4.Motor and inverter are approved CE,qualtiy assured!


model700-4A
power15KW/20hp
rotating speed450-1950rpm
weight535kg
voltage380-440v
wroking width700MM
inverter18.5kw/25hp

Four heads counter grinding with 20HP strong driving force, which makes its working efficiency 30% higher than other big machine.Planetary counter rotation reduces the grinding machine's deviating force then it helps to lower grinding strength and easy to grip machine.High sealing mechanism, the spring damping system and all-galvanized steel components can extend significantly the lifespan of machinery.

Self-Propelled Concrete Floor Grinding for New Style
Self-Propelled Concrete Floor Grinding for New Style
Self-Propelled Concrete Floor Grinding for New Style







Customer Demo >>


Self-Propelled Concrete Floor Grinding for New Style


Our Certificarions >>

Self-Propelled Concrete Floor Grinding for New Style

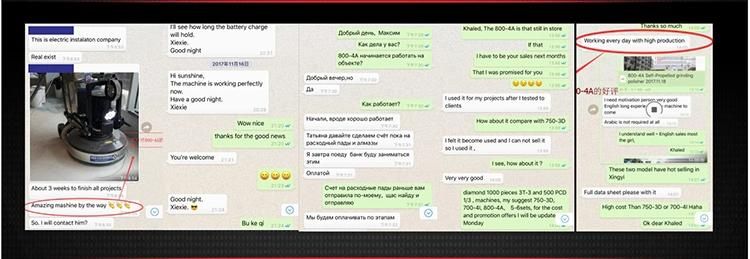

Customer Evaluation >>

Self-Propelled Concrete Floor Grinding for New Style


FAQ >>

Q: Are u the manufacturer ?
A: Yes of course, we are the manufacturer ! we welcome clients to visit our factory to inspect our
produce process at any time.Our factory is located in Jinjiang, China ( Xiamen airport, Xingyi pick up )

Q: How long your product's warranty ?
A: One year warranty .

Q: What is your MOQ ?
A: 1 set

Q: What is your packaging ?
A: We package in Plywood case.

Q: What is your payment method ?
A: 100%^Or 50% T/T advance, the balance should be pay off before shipment.

Q: Do your machine can be custom-made ?
A: Yes, we can design and produce according to client's requirements.

Q: What is your delivery time ?
A: 7~20 days ( according to the total quantity)
