• Model NO.：M74125E
• Working Style：Three-roll
• Disc Diameter：230mm
• Variable Speed：With Variable Speed
• Trademark：cyspeed
• Origin：Chaoyang, Liaoning, China
• HS Code：8460190000
• Production Capacity：500piece,Year

Basic Info.

Model NO. M74125E Working Style Three-roll Disc Diameter 230mm Variable Speed With Variable Speed Trademark cyspeed Origin Chaoyang, Liaoning, China HS Code 8460190000 Production Capacity 500piece/Year

Product Description

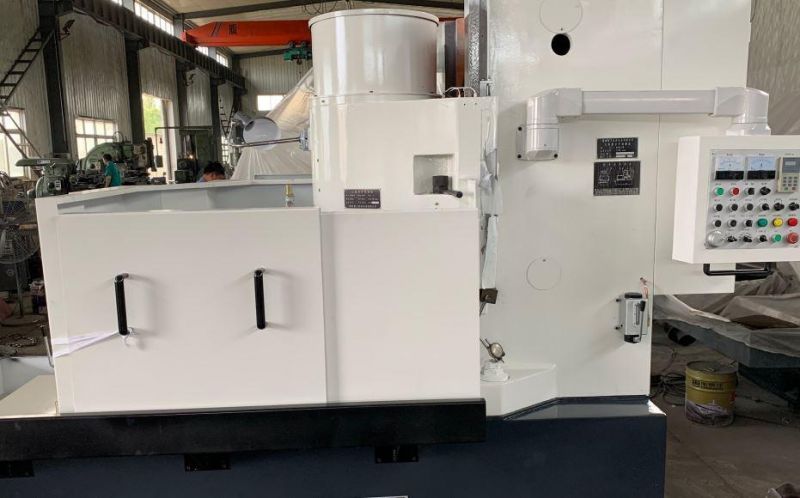

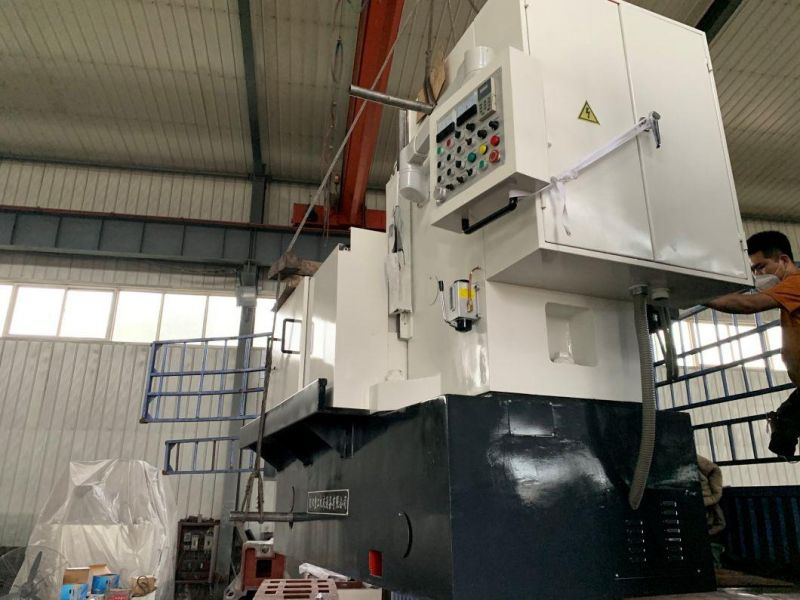

M74125E Vertical Spindle Surface Grinder With Rotary Table
The machine tool is a vertical grinder with multiple functions and wide applications, which mainly serves for manufacturing or using cold stamping dies.
The machine tool can undertake an integral grinding for the stamping dies with handles and guide bars. In addition to the grinding of plane surface, concave, convex and shoulder plane, the grinding for internal and external surface, the shape grinding for diffenent size stamping die edges with different requirement to the curvature radius cambered surface can also be done.
The grinding head spindle is equipped with high precision rolling bearings with automatic up and down operation, line guide rails and level travel. The column can be adjusted by three points.

Technical parameters:
MODEL		M74125E
Diameter of working table	mm	Ø 1300
Max. size of work piece	mm	Ø 1250X390
Rotating speed of working table	rpm	5-24  (Frequency conversion speed control)
Working table stroke	mm	675
Working tabel moving speed	m/min	3.7
Grinding head fast moving speed	m/min	0.15 (adjustable)
Grinding head fexible feed		Devided into sections(8 sections as need)
The vertical movement distance of the grinding head of each hand wheel	.mm	0.01
Sand tile size	mm	WP150X80X25
Grinding head motor power	kw	45
Grinding head servo motor power	Kw	3.7
Table moving motor power	Kw	1.1
Table rotary motor power	Kw	3
Total power of machine	Kw	53.05
Wright of working table bearing	Kg	1500
Machine net weight	Kg	8000
Main precision of machine tool
The flatness of the working table	mm	0.015
Working table runnot	mm	0.015
The axial movement of grinding wheel spindle	mm	0.008
The runout of centering circle of grinding wheel spindle	mm	0.015
Equal thickness of specimen after grinding	mm	0.015
The surface roughness after grinding	µ m	Ra0.8
