PA6, PA610, PA612 Abrasive Filaments

Chongqing Dami New Material Technology Co., Ltd.
  • Material：Al2O3
  • Shape：Round
  • Certification：FDA, CE, ISO
  • Length：1250mm
  • Transport Package：25kgs,Carton
  • Specification：0.3-1.4mm

Base Info

  • Model NO.：DM-ABF
  • Trademark：DAMI
  • Origin：China
  • HS Code：5404190010

Description

ABRASIVE NYLON FILAMENTSItemParameterRaw MaterialPA612, PA610,PA6GritSilicon carbide,Aluminum oxide, DiamondGrit Size36#,46#,60#,80#,120#,180#,240#,320#,500#,600#,800#,1000#Grit loading15%~30% Specification(0.3~2.0)mmColornatural,grey,white,red,orange,blue and so onLength(1250±10)mm/(1800±10)mm endless on spoolBundle Diameter(48±3)mmPackage25kg/carton,30kg/carton,PVC foil wrapping of every bundleCarton Dimension130*30*15cmApplicationabrasive nylon filaments are made of  nylon as carrier and 36~1000 mesh abrasive particles such as silicon carbide, alumina, and diamond grinding dust. The hot melts from the above are extruded to form abrasive filaments that are strong and heat resistant under wet or dry conditions. Main applications are devices for workplace deburring, grinding, and polishing of the surfaces of steel, stone, and other materials. Also useful for general surface treatment.
About Abrasive Filament

DAMI abrasive filaments are produced by loading abrasive grits such as silicon carbide (SIC) or aluminum oxide (AO), Diamond evenly into high-quality nylon and extruding the mixture into filaments.
DAMI abrasive filaments have superior stiffness, good flexibility, and great elasticity. Brushes made with DAMI abrasive filaments are highly efficient in grinding, finishing, polishing, and deburring in different industries and for different surfaces e.g. curved, concave, convex surfaces or insides of pipes without damaging the dimensions and fineness of the workpiece. PA6, PA610, PA612 Abrasive Filaments

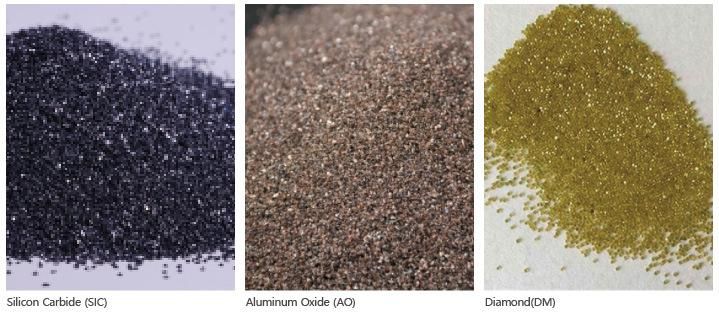

PROPERTY COMPARISON OF GRIT

- Vickers hardness (HV): DM > GC > SIC > WA > AO
- Cutting force: DM > GC > SIC > WA > AO
- Price: DM > GC > SIC > WA > AO

PROPERTY COMPARISON OF NYLONS

Bend recovery: PA6<PA66<PA610<PA1010<PA612
Water absorption: PA612<PA610<PA1010<PA66<PA6
Durability:PA6<PA66<PA610<PA1010<PA612

THE BEST ONE IS THE MOST SUITABLE ONE

The most popular abrasive filaments are SIC and AO filaments. SIC abrasive is generally the best choice for the most of the applications. AO is suitable for precision polishing and soft surface. Basically, every industry has its own common-used abrasive filament. For detailed questions, please do not hesitate to contact us for consulting. It would be more helpful, if you can send us some samples for analyzing.
PA6, PA610, PA612 Abrasive Filaments

DAMI-BRUSH FILAMENTS EXPERT
Very grateful to our customers for the support and encouragement and bwelcome to give us your support and enquiry.
