• Model NO.：ESM-0.75
• Transport Package：Wooden Case
• Specification：ESM-0.75----ESM-2.2
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：879820090
• Production Capacity：30-3000L

Basic Info.

Model NO. ESM-0.75 Transport Package Wooden Case Specification ESM-0.75----ESM-2.2 Trademark ELE Origin Shanghai, China HS Code 879820090 Production Capacity 30-3000L

Product Description

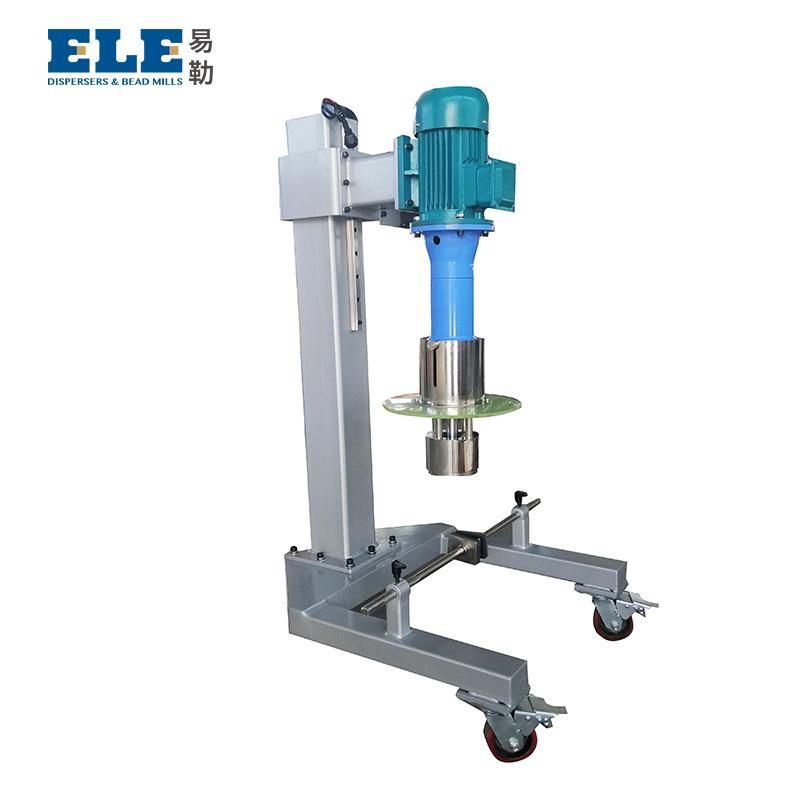

Pigment Basket Mill (EBM)

Working principle

with dispersion disc and beads mill complex structure, Basket Bead Mill (EBW)
Integrates high speed dispersing and superfine wet-grinding in the same machine. Dispersing disc speed up the particle wetting and contribute dispersion effect, so high viscosity materials can be dispersed rapidly for high speed running of dispersion disc.

Features

1, no need using of pump, pipe, valve, other tank, and thus no leftover, large output
2, low cost, high efficiency, short processing time
3, one machine can process kinds of materials, users can change to produce different products and colors.
4, flexible operation, one worker can operate several basket dispersing mills.
5, hydraulic lifting



Specifications

Model	Chamber volume (L)	Power (kw)	Speed (rpm)	Volume of container (L)	Media size (mm)	Mode of lift
ESM-0.75	0.4	0.75	0-3000	1.3-5	1.8-2.4	Electric/Manual
EBM-1.1	0.9	1.1	0-3000	3-10	1.8-2.4	Electric
EBM-2.2	1.8	2.2	0-3000	5-20	1.8-2.4	Electric
