• Working Style：High-speed universal
• Disc Diameter：150mm
• Variable Speed：With Variable Speed
• Transport Package：Pallet
• Specification：all size
• Trademark：Shindah
• Origin：China
• HS Code：8479
• Production Capacity：1000 Sets,Year

Basic Info.

Working Style High-speed universal Disc Diameter 150mm Variable Speed With Variable Speed Transport Package Pallet Specification all size Trademark Shindah Origin China HS Code 8479 Production Capacity 1000 Sets/Year

Product Description

Introduction:
WSD large flow sand mill new type adapts new diversion trench and sand disc to achieve much higher efficient wet grinding technology. High-efficient diversion-trench grinding disc and super-big centrifugal flow turbine can be distributed in grinding chamber preferably. Centrifugal
wheel is designed specially, under high line-speed, adopting centrifugal principle, centrifugal wheel can throw grinding medium and large particles material to the outside of filter. This will ensure much more working life of filter and make larger particles material be grinded in chamber repeatedly. This technology solves the problem that filter is plugged up easily. Adopts centrifugal-wheel style filter to increase flow rate and to separate grinding medium safely, even for larger flow separation system, it can work in much higher efficiency.

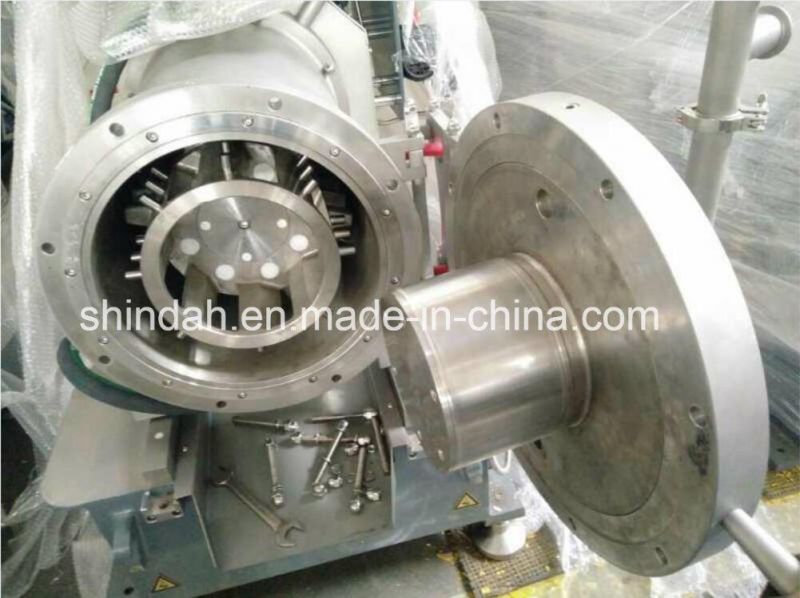

Disc of centrifugal grooves
Specially designed centrifugal wheel
Special designed large area of screen mesh

Advantage:
1. Eliminate invalid radial force of the cavity
2. All material of grinding chamber is replaceable
3. All easy-damaged parts can be replaced individually
4. Special disc and shaft with thrust
5. Special centrifugal type screen


Application:
Applicable for automobile paint, steelroll paint, corrosion-proof paint, wood paint, screen printing ink, Gravure ink, textile pigment, TiO2 powder, Pharmacy, Pestide etc.

Features:

1. With high flow dynamic separate system and high efficient grinding system the solid particles can be ground down to sub-micron meter or sub micron meter range with concentrated particle size distribution.
2. The mill stand is welded as a whole and the key parts of the mill such as double action mechanical seal, bearing, frequenter,feeding pump and belts are high quality products with international or domestic famous brands.
3. The grinding system is formed by high wear resistance alloy which suits for the use of solvent based products.
4. With the stretch lead rail, the grinding chamber and the chamber cover can move easily to favor the maintenance of the mill.
5. The enhanced  gap separator is used with increased flow area for higher viscosity product.

     6. With above deploys and optimization, the quality of the ground product is improved and the production            capacity is increased ( comparison to the mill with same type and same size, the production capacity can          be increased to 20 - 30%), and the reliable and stable operation of the mill is realized

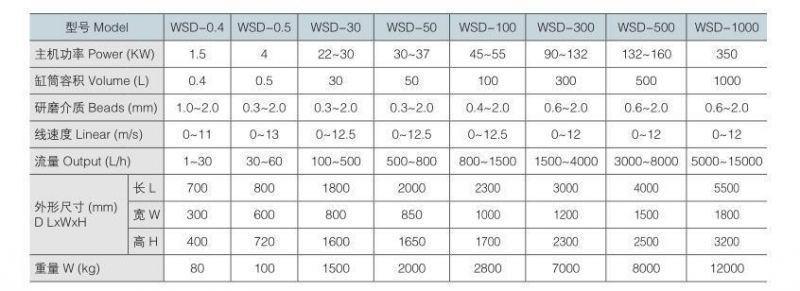

Models:

we make bead-grinding mill since 2003.
Strict quality control.
Fast delivery time.
Good after-sales services.
Reasonable prices.

welcome to send your inquiries. Look forward to working with you!
