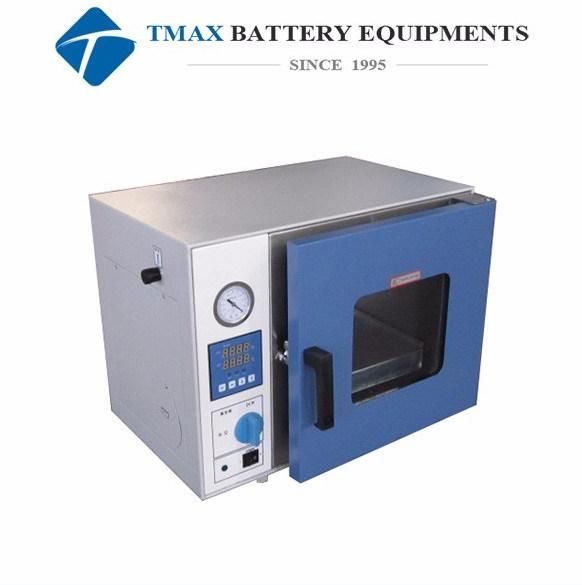

Tmaxcn Vacuum Lab Oven with Optional Vacuum Pump and Digital Temperature Controller
Xiamen Tmax Battery Equipments Limited- Transport Package：Wood Packing
- Specification：12x12x12
- Trademark：TMAX
- Origin：China
Base Info
- Model NO.：TMAX-JK-DZF-6020
Description
Model
DZF-6050 Vacuum Drying Oven TMAX-JK-DZF-6020
Source voltage
110VAC or 220VAC +/-10% selectable
Power
1400W
Warranty
One Year Limited Manufacture Warranty with Life Time Support
Temperature range
RT+10-250ºC, 30 Segment programmable Temperature control
Temperature fluctuation
±0.5ºC
Vacuum degree
-0.1MPa
Inner box size(L*W*H)
415*345*370mm
Dimension(L*W*H)
710*560*550mm
Package size
650*850*700mm
Temperature controller
1 High precision microcomputer temperature controller, accurate temperature control
2 Working temperature can be set and working time can be set for 0-9999min.
3 When time reach, sound alarm, and when any error, also alarm. function
Inner box material
304 stainless steel
Outside shell material
High quality cold-rolled steel plate electrostatic spray
Box door
Toughened hulletproof double glass door
Safety device
With over temperature protection, grounding etc
Shelf
2pcs
1 Solid stainless steel shelf, guarantee the oven temperature
2 Mesh stainless steel shelf can be also chosen
1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
