• Model NO.：EBW
• Working Style：High-speed universal
• Disc Diameter：230mm
• Variable Speed：With Variable Speed
• Materials：Stainless Steel or Pure Zirconia
• Application Industry：Dye, Dyestuff, Dyeware, Offset Printing Ink
• Grinding Medium：Pure Zirconia
• Transport Package：Wooden Case
• Specification：EZW-5------EZW-100
• Trademark：ELE
• Origin：Shanghai, China
• HS Code：879820090
• Production Capacity：200-3000L,H

Basic Info.

Model NO. EBW Working Style High-speed universal Disc Diameter 230mm Variable Speed With Variable Speed Materials Stainless Steel or Pure Zirconia Application Industry Dye, Dyestuff, Dyeware, Offset Printing Ink Grinding Medium Pure Zirconia Transport Package Wooden Case Specification EZW-5------EZW-100 Trademark ELE Origin Shanghai, China HS Code 879820090 Production Capacity 200-3000L/H

Product Description

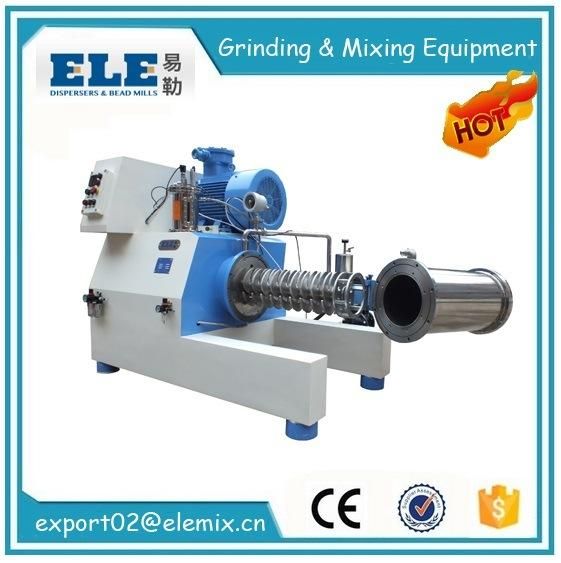

Horizontal Sand Mill (EZW)/Latex Paint Making Machine/ultra ball mill

Features:
1, high abrasive resistance materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life span
2, dynamic fence booms discharge solve problems of slow discharge and grinding medium getting stuck
3, German BURGMANN double end-face mechanical seal can bear more than 10bar pressure
4, screw structure inside cooling jacket increase cooling area and improve cooling efficiency
5, grinding beads small to 0.2mm guarantee superfine grinding/milling
5, meet demands of continuous production

6, especially suitable for high viscosity, high solid-content, superfine grinding/milling
7, inner & outer double pins improve high wet grinding/milling efficiency
8, ex-proof (optional)
9, precise control system & fault alarming
10, kinds of feeding pumps to different processing requirements (e. G. Pneumatic diaphragm pump)
11, low power consumption

Specifications

Model	Chamber Volume (ml)	Power (kw)	Speed      (rpm)	Capacity (L/H)	Dimension L*W*H (mm)	Weight (kg)
EDW-5	5	7.5	1440	200	1300*1050*450	650
EDW-15	15	18.5	1440	500	1600*1450*650	1200
EDW-20	20	22	1260	800	1600*1450*650	1350
EDW-30	30	37	1260	1200	1650*1550*750	1700
EDW-40	40	45	980	1500	1750*1650*850	2100
EDW-50	50	55	980	2000	1900*1850*850	2300
EDW-100	100	110	860	3000	2300*2150*950	380
