• Model NO.：Ceramic Beads
• Customized：Customized
• Item：Zirconia Grinding Balls
• Materials：Zirconia
• Type：High-Zironia
• Diameter：1mm-20mm
• Grinding Situation：Dry Grinding, Wet Griding
• Feature：High Hardness, High Density and Anticorrosion
• Application：Ball Mill, Pebble Mill, Strilled Mill
• Field：Ceramic, Metallurgy, Glass, Porcelain, Enamel
• OEM：Accept
• Transport Package：Drums
• Specification：D1~D20mm
• Trademark：Pingxiang chemshun ceramics
• Origin：P. R. China
• HS Code：69091200
• Production Capacity：10000ton,Year

Basic Info.

Model NO. Ceramic Beads Customized Customized Item Zirconia Grinding Balls Materials Zirconia Type High-Zironia Diameter 1mm-20mm Grinding Situation Dry Grinding, Wet Griding Feature High Hardness, High Density and Anticorrosion Application Ball Mill, Pebble Mill, Strilled Mill Field Ceramic, Metallurgy, Glass, Porcelain, Enamel OEM Accept Transport Package Drums Specification D1~D20mm Trademark Pingxiang chemshun ceramics Origin P. R. China HS Code 69091200 Production Capacity 10000ton/Year

Product Description

Cerium Zirconia Ceramic Beads Grinding Ball as Grinding Media for Mill Grinder

1: Description of HIgh wear resistant Ce-TZP Zirconia Ceramic Media with ZrO2 78%

Chemshun Ce-TZP grinding media produced with high grade ceria stabilized zirconia powder. With the properties of never aging and never broken. Chemshun Ce-TZP zirconia media has a very long uselife. And it's abrasion is smallest of all zirconia media with excellent wear-resistance performance. So it widely used in grinding and the factories of inks, paper, paints, metal and non-metallic mineral.

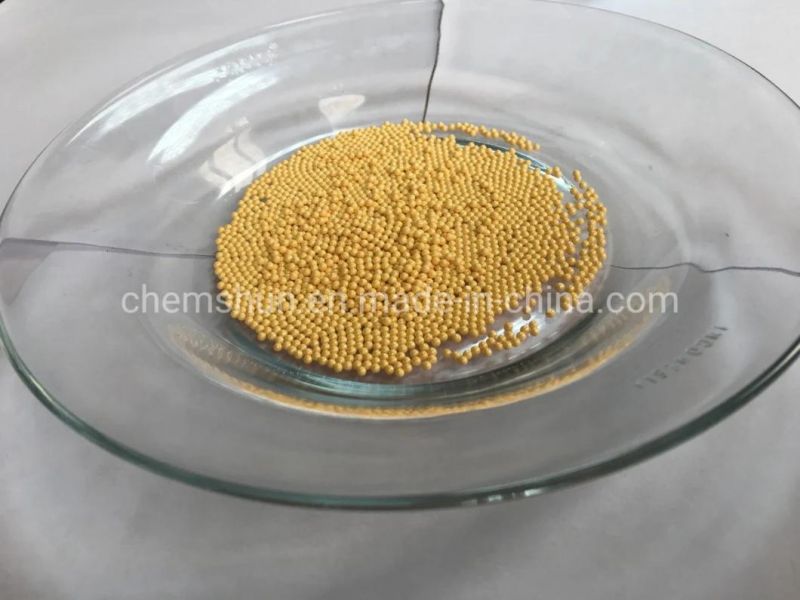

2.Appearance


3: Advantages of Chemshun Ce-TZP Zirconia Ceramic Media :
- High crushing strength and fracture durability which as no any break
- Smooth surface, good sphericity
- Excellent cost and performance
- High cost-effective grinding beads with high density

4: Application
- Electronic ceramics grinding
- Magnetic materials grinding
- Alumina oxide, silicon oxide, zirconium silicate grinding
- Foodstuffs, cosmetic and pigment, inks, paint and coating materials grinding

5: Properties of Chemshun Ceramics Ce-TZP Zirconia Ceramic Media

Properties	Unit	Data
Composition	wt%	78-80% ZrO2; 20-22% CeO2
Specific density	g/cm3	> 6.2
Moh's hardness	grade	> 9.0
Elastic modulus	Gpa	200
Thermal conductivity	W/m.k	3
Fracture toughness	Mpa m1/2	>8.5
Grain size	µm	<0.5
Thermal expansion Coefficient (20-400 ºC)	10*10-6/ºC(20-400)	9
Size range of beads	Mm	0.4--100
