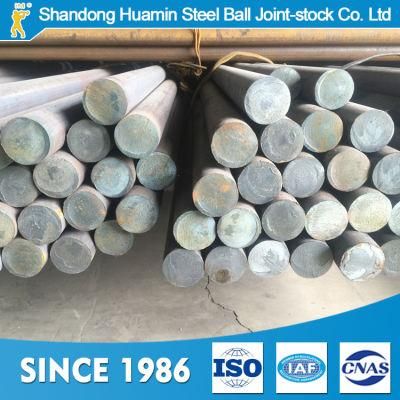

Home > Product > Grinding Rods

Forged Steel Ball for Ball Mill, Forged Steel Grinding Balls

Shandong Huamin Steel Ball Joint-stock Co., Ltd.
  • Materials：Carbon Steel
  • Certification：ISO
  • Applications：Mine, Cement, Electric Power Plant
  • Shape：Square
  • Specifications：40-120mm
  • Diameter：20mm-150mm

Base Info

  • Model NO.：20-150mm
  • Hardness：45HRC ---55HRC
  • Transport Package：Bundle
  • Specification：Dia. 20-150mm
  • Trademark：HM
  • Origin：China
  • HS Code：73261100
  • Production Capacity：150, 000 Mt,Year

Description

 Nominal Diameter(mm)Dimensional Tolerance(mm)Roundness %Φ20±2  ≤6Φ25±2   ≤6Φ30±2   ≤5Φ35±2   ≤5Φ40±2   ≤5Φ50+3,-1   ≤4Φ60+3,-1   ≤4Φ70+3,-1   ≤4Φ75+3,-1   ≤4Φ80+3,-1   ≤4Φ90+4,-2   ≤4Φ100+4,-2   ≤4Φ120+4,-2   ≤4Φ125+4,-2   ≤4Φ130+4,-2   ≤4Φ140+4,-2   ≤4Φ150+4,-2   ≤4

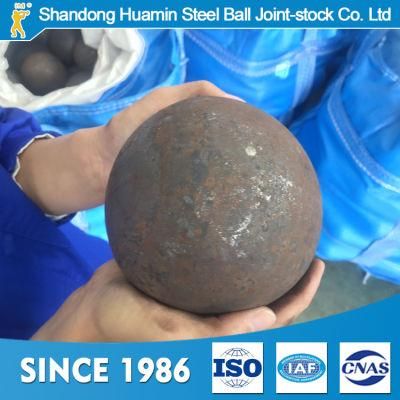

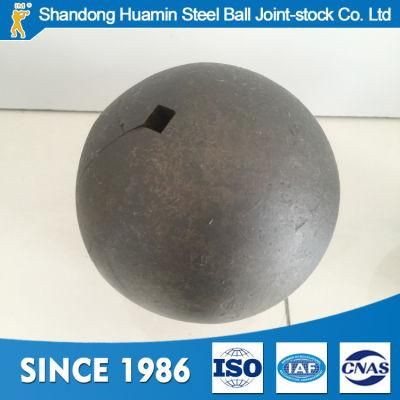

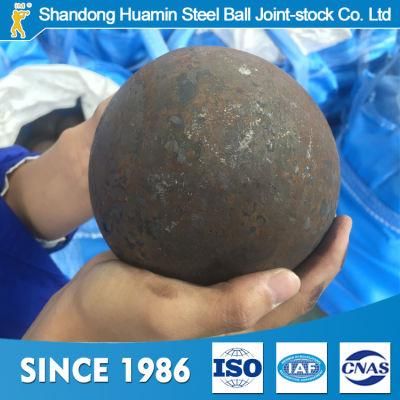

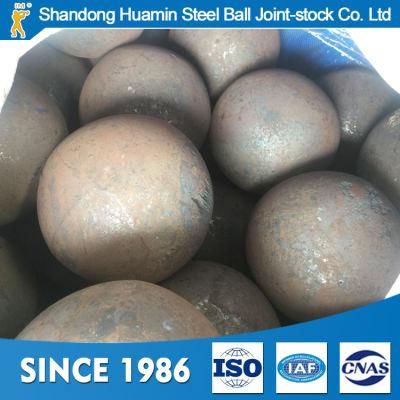

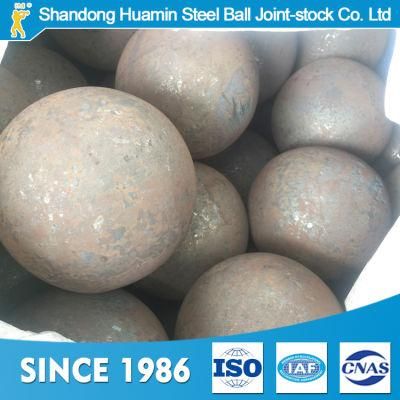

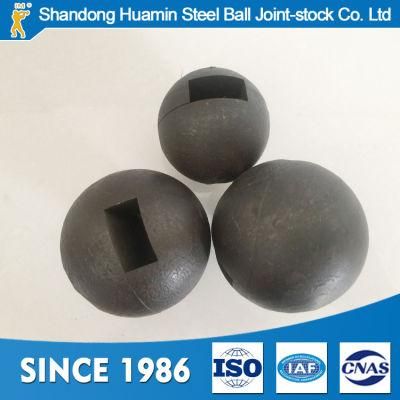

3.Picture show

4. Packing Instruction:
Barrel with wooden pallet: Steel Drum or Steel Barrel
Barrel size(cm): 89 χ 58 (Volume: 800kgs N. G. Avaliable)
Pallet size(cm): 168 χ 59 χ 13
Two Barrel tie on the wooden pallet, steel tape for bundle
Strong Nylon Bag:
Avalible Bag: 50kgs; 100kgs; 1000kgs

5.Inspection and testing
