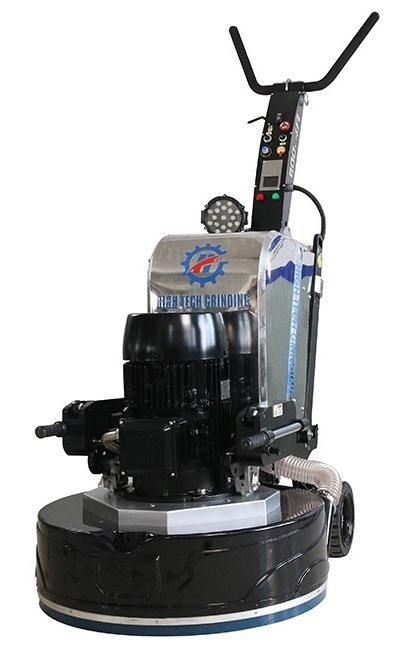

Planetary Self-Propelled Concrete Floor Grinder with Vacuum
Fujian Xingyi Polishing Machine Co., Ltd.- Type：Floor Grinding Machine
- Power Source：Electricity
- Object：Diamond Grinding Discs&Polishing Pads
- Application：Construction
- Disc(Wheel) Type：Grinding Disc
- Material：Steel
Base Info
- Model NO.：800-4A
- Working Style：High-speed universal
- Disc Diameter：256mm*4
- Variable Speed：With Variable Speed
- Model Name：Floor Surface Preparation Grinder Machine 800-4A
- Power：15kw , 20HP
- Rotating Speed：450-1950 Rpm
- Weight：540kgs , 1190lbs
- Voltage：220-240V Three Phase , 380-440V Three Phase
- Working Width：800mm (256mm*4)
- Inverter：18.5kw , 25HP
- Gloss Weight：645kg
- Voltage Amperage：380-440V 3p
- Us Voltage Amperage：220-240V 3p
- Transport Package：Standard Wooden Packing
- Specification：88*142*132 cm
- Trademark：High Tech Grinding
- Origin：Fujian, China
- HS Code：84642090
- Production Capacity：3000,Year
Description
380-440V 30.7A three phase
The Most Important Thing You Focus On>>>>>
This machine has the advantages of saving time and labor cost due to high efficiency.
★ Four heads planetary abrasive plate offer more power to grinding head to make sure concrete grinding operates more smoothly.
★ 800mm working width,four heads 256mm plate,by which,each planetary head is moving into counteract rotation sequence that reduces the grinding machine's deviating force.
★ 20 Hp with 220V~240V/380V~440V three phase,15 Kw motor can offer enough power for grinding, an additional weight 25 kg*2 increase grinder's total weight that make it more efficient compare with other machines.
★ The head design uses hi-tech sealing mechanism and spring damping system to act as suspension. It keeps the diamond engaged to the floor even over birdbaths and humps. This allows your diamonds to perform at their best and give you an even grind result.
★ With self-propelled function, no need forklift, easy to be transported,with its own sensors and control chips to achieve walking and speed cruise control within 25 degree ramp.

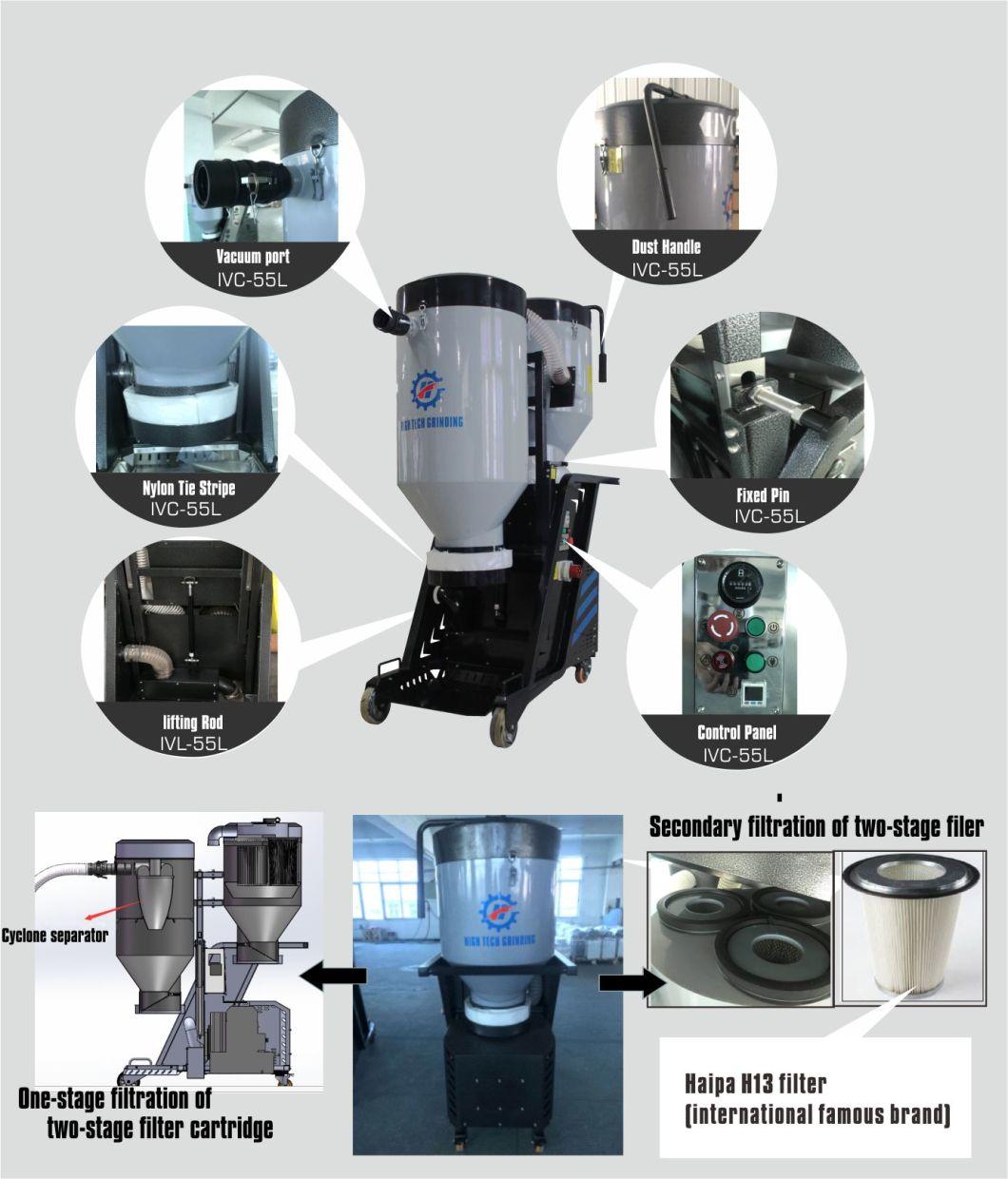

★ Patented turbe cyclone design to increase the air pressure,also can make sure filter 80-90% dust.
★ Low noise dba design.
Package and Shipment>>>>>

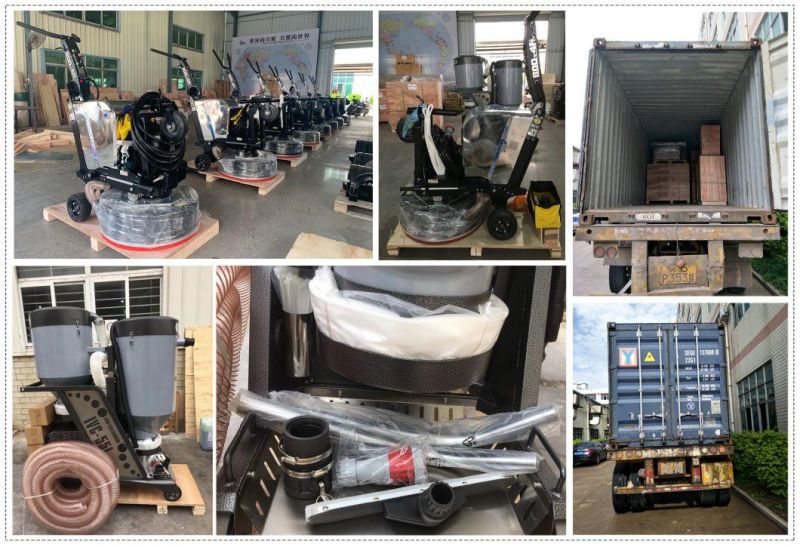

Packing Dteails:Each floor grinding machine packed in standard wooden case.

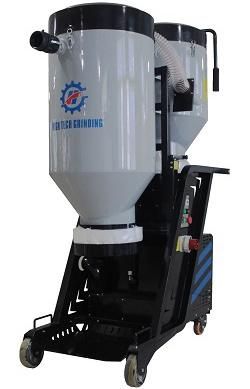

Every industrial vacuum cleaner packed in a standard wooden case too.
Delivery Time:Shipped in 7 days after payment.
FAQ>>>>>
Q1:Are you trading company or manufacturer?
A1:We are manufacturers and we have our own factories. specializes in floor grinder products and has 20 years of flooring experience.Welcome to visit our factory,we can also provide the best suitable flooring construction solution for you.
Q2:What are the advantages of your products compared with other products?
A2:Our products are excellent in terms of productivity, handling, reliability and construction results. Products warranty for 3 years,however other grinder brand warranty is only 1 year.
Q3:Are the grinders will come with accessories?
A3:es,all the grinders include tool box and necessary accessories.
Q4:Can the grinders bi used for polishing?
A4:Yes,of course. They can do both grinding and polishing.
Q5 :Can you customize the machine for the customer?
A5:Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
Q6:What is the MOQ?
Q6:We usually provide 1 set for customers to test.
Q7:What does a floor grinder do?
A7:Floor grinders are used to repair damaged surface and level uneven joints as well as polishing and smoothing surfaces.There are various types of floor grinders that use rotating disks to smooth, level, or clean a concrete surface.
Q8:How can we start order with your factory?
A8: First, leave us an inquiry and advise which item you're interested, and then we will contact you in 24 hours. You're so kind if provide all detailed information, will better for us to know exactly what you need.
Why Choose US??>>>
1.We are the one of the biggest system integrates which providing Full-floor polishing products and service in China.
2.Not only we are a factory,but also have our own engineering company.Any questions about the machines or projects,we can give you a free technical guidance.
3.We have cooperated with clients from more than 124 countries and have 34 foreign offices across the global so that we can provide an extremely details and customer support.
4.Our annual international floor treatment seminar is more and more popular among famous connoisseurs.
