• Model NO.：XN-TF-90II
• Working Style：High-speed universal
• Disc Diameter：230mm
• Variable Speed：With Variable Speed
• Color：Gray
• Transport Package：Wooden Plate
• Specification：20-150mm
• Trademark：Xinning
• Origin：China
• HS Code：8480490000
• Production Capacity：50000sets

Basic Info.

Model NO. XN-TF-90II Working Style High-speed universal Disc Diameter 230mm Variable Speed With Variable Speed Color Gray Transport Package Wooden Plate Specification 20-150mm Trademark Xinning Origin China HS Code 8480490000 Production Capacity 50000sets

Product Description

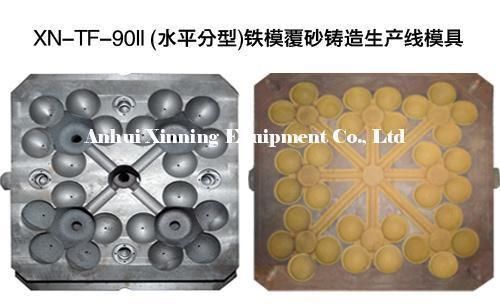

Mould of Iron-oxide-coated-sand moulding production line has Patent No.: ZL201320259198.6

     The series of mould has the following characteristics:

     1) Shaped in metal composite model, the mould turns to be smaller in dimension; sand core is made into form by the chilling forming technology, which does not only save the electricity used in thermal forming, but also avoids the input of special equipment. In addition, forging by this technology also can ensure the casting accuracy of form and position as well as the quality of its appearance, improve the qualified rate of casting, and meanwhile control the allowance in mould cutting and processing, so as to achieve the objective of saving resources;
     2) The mould is processed in gantry numerical control machining center, therefore the labor intensity is alleviated while the accuracy of mould product is enhanced;

     3) In the moulding assembling surface of the mould sets overflow groove which can be used to prevent the metal liquid from leaking to ensure production safety, since the coagulating property of metal liquid in room temperature enables itself to seal.
     4) Moulding assembling position employs split locating pins and bushes since they can be replaced conveniently, thus, greatly reducing the mould maintenance cost.
