• Model NO.：TYStone
• Working Style：Shaking
• Variable Speed：With Variable Speed
• Structure：Vertical
• Control System：PLC
• Grinding Head Number：10
• Edging Machine Type：Stone Edging Machine
• Original：China
• Voltage：380V, 50Hz, 3-Phase
• Transport Package：Container
• Specification：7200 mm× 1000 mm× 2500mm
• Trademark：Toyo
• Origin：China
• HS Code：8464201000
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. TYStone Working Style Shaking Variable Speed With Variable Speed Structure Vertical Control System PLC Grinding Head Number 10 Edging Machine Type Stone Edging Machine Original China Voltage 380V, 50Hz, 3-Phase Transport Package Container Specification 7200 mm× 1000 mm× 2500mm Trademark Toyo Origin China HS Code 8464201000 Production Capacity 10000pieces/Year

Product Description

  JY 10-45°Swing angle rock board / stone edging machine Product introduction: The machine's variable frequency speed regulation feed is suitable for the bottom edge, 45 °, and swing angle of the flat rock slabs of different sizes and thicknesses. Wait for the fine rough grinding and polishing to be completed at one time. After polishing, the surface is close to the smoothness of the stone matrix. When adjusting different processing thicknesses (refer to the digital display table on the front beam for adjustment), it has the advantages of advanced structure, high accuracy, easy operation, and continuous processing of the same thickness. The necessary processing equipment for deep processing of boards


The main technical parameters

1,Voltage:380V/50HZ
2,Process min glass size:70X70 mm
3,glass thickness:3~60mm
4,Total power:27Kw
5,Feeding speed:0.7-5 m/min
6,Oversize: 7200 mm×1000 mm×2500mm
7,Weight:3300kg
8,Workbench:750mm
Grinding wheel distribution and motor grinding wheel sequence configuration

1	2	3	4	5	6	7	8	9	10
φ150	φ150	φ150	φ150	φ150	φ150	φ150	φ150	φ150	φ150
3kw	3kw	3kw	3kw	2.2kw	2.2kw	3kw	3kw	3kw	3kw
diamond wheel	Polishing wheels	Polishing wheels	Polishing wheels	Polishing wheels	Polishing wheels	Saw blade	diamond wheel	diamond wheel	Polishing wheels

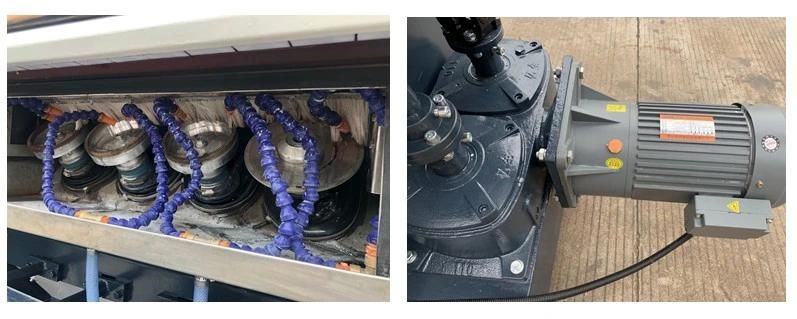

Detail 1
Swing angle function: Rear chamfering motor swing angle range: 10 ° -45 ° (refers to the angle between the motor axis and the horizontal plane)


Detail 2
Saw blade: Adopt high-quality rock board / stone special saw blade, the sharpness is tough and does not collapse.

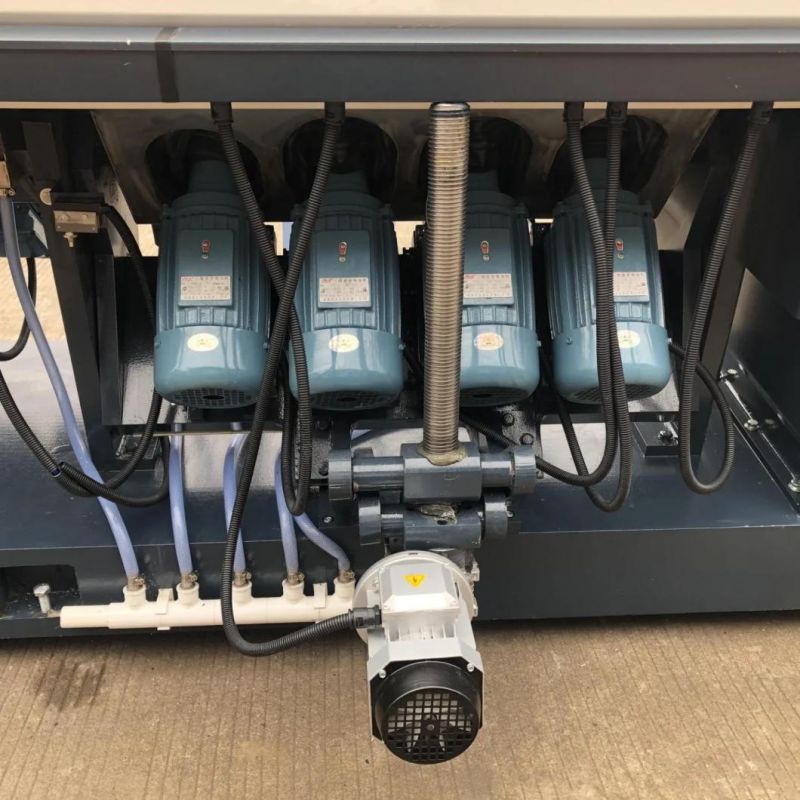

Frequency conversion motor: The motor adopts frequency conversion intelligent adjustment, stable speed change, and panel operation adjustment.

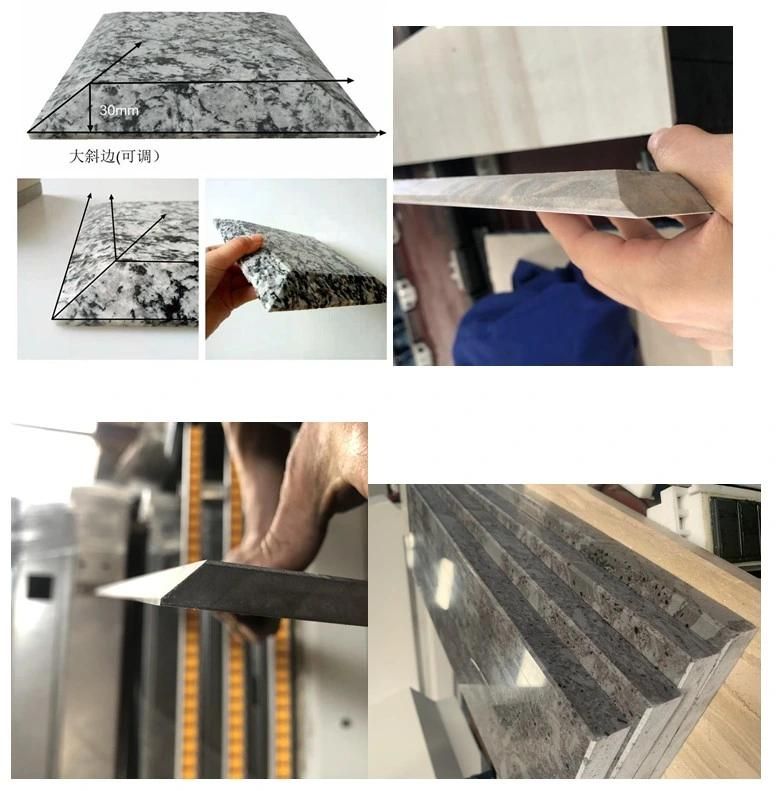

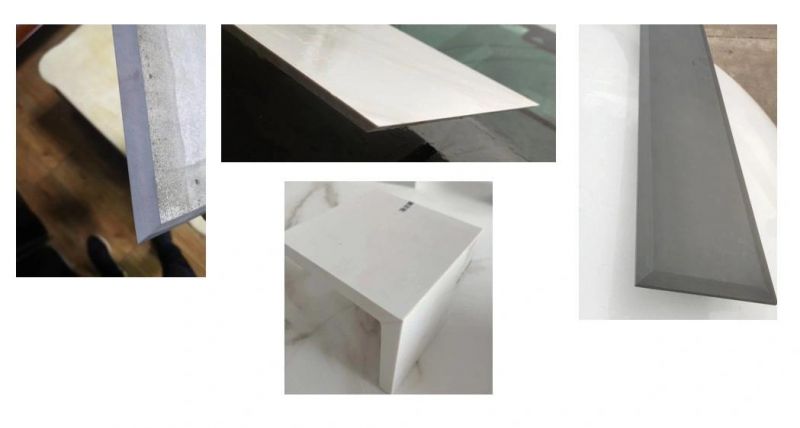

Processing effect chart

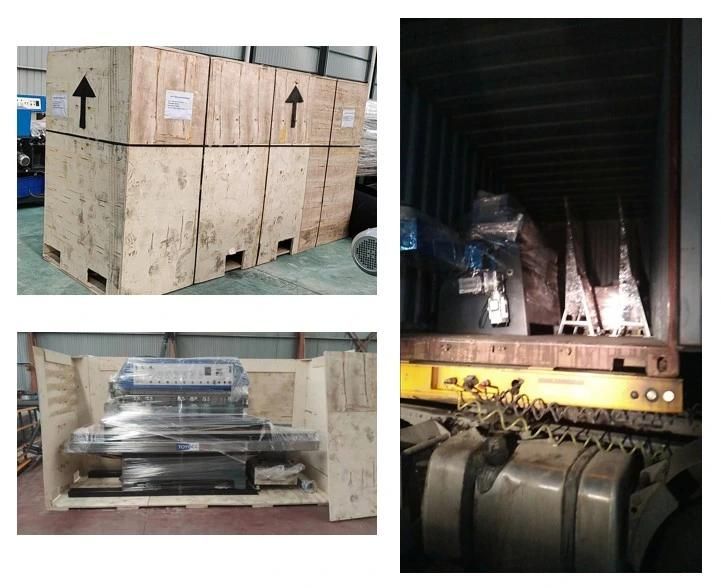

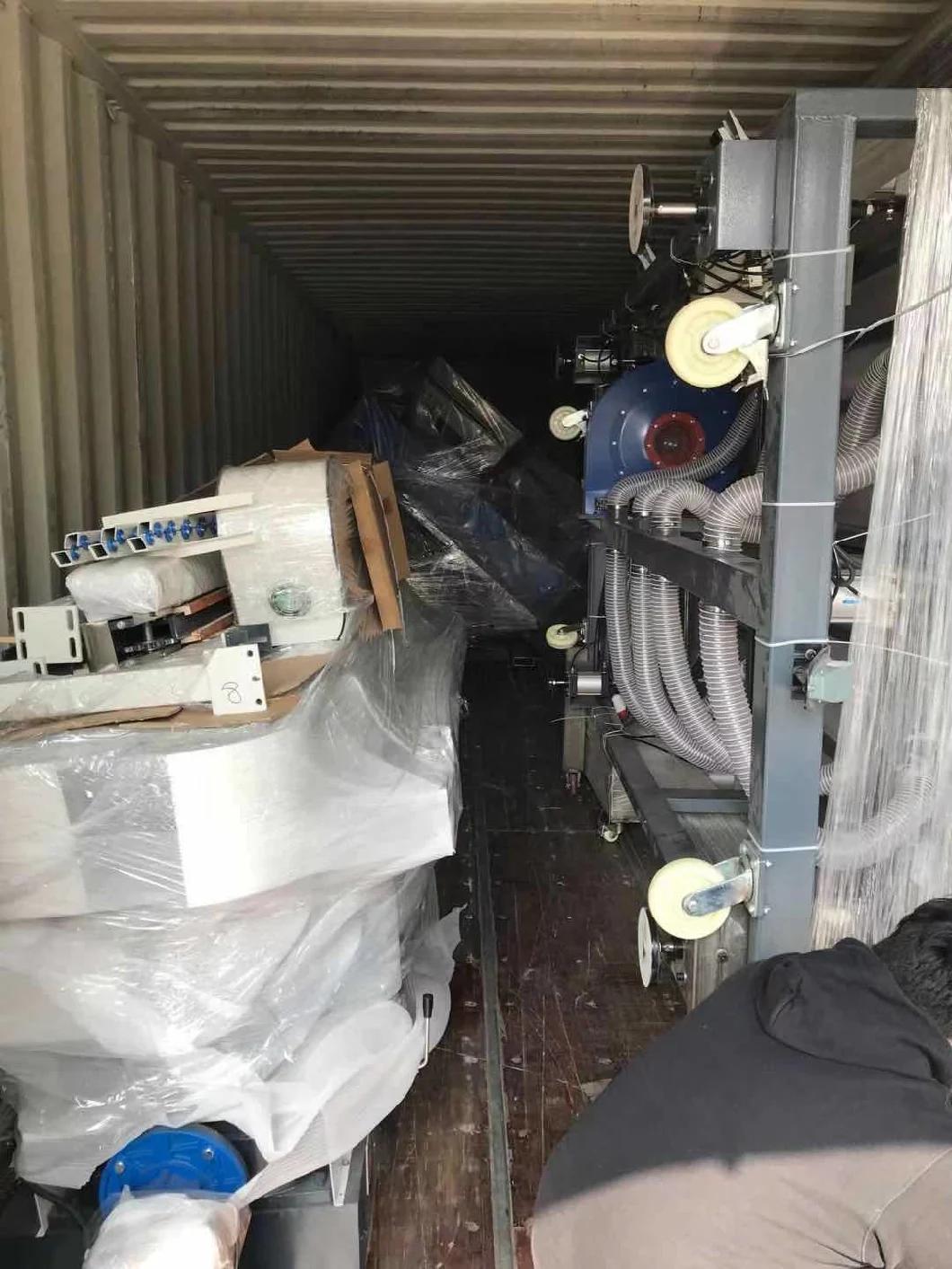

 Packing & Loading Pictures
