• Model NO.：HTG-CW1
• Model Name：Htg-TCP-Cw Diamond Concrete Grinder Disc Cup
• Application：Dry Grinding on Concrete and Stone Surface
• Color：Gold
• Materials：Diamond and Mental
• Features：Idea for Corners, Columns and Pipes
• Transport Package：Carton Box
• Specification：4′′ 100*9T*5*8*23mm
• Trademark：HIGH TECH GRINDING
• Origin：China
• HS Code：68042190
• Production Capacity：5000

Basic Info.

Model NO. HTG-CW1 Model Name Htg-TCP-Cw Diamond Concrete Grinder Disc Cup Application Dry Grinding on Concrete and Stone Surface Color Gold Materials Diamond and Mental Features Idea for Corners, Columns and Pipes Transport Package Carton Box Specification 4′′ 100*9T*5*8*23mm Trademark HIGH TECH GRINDING Origin China HS Code 68042190 Production Capacity 5000

Product Description

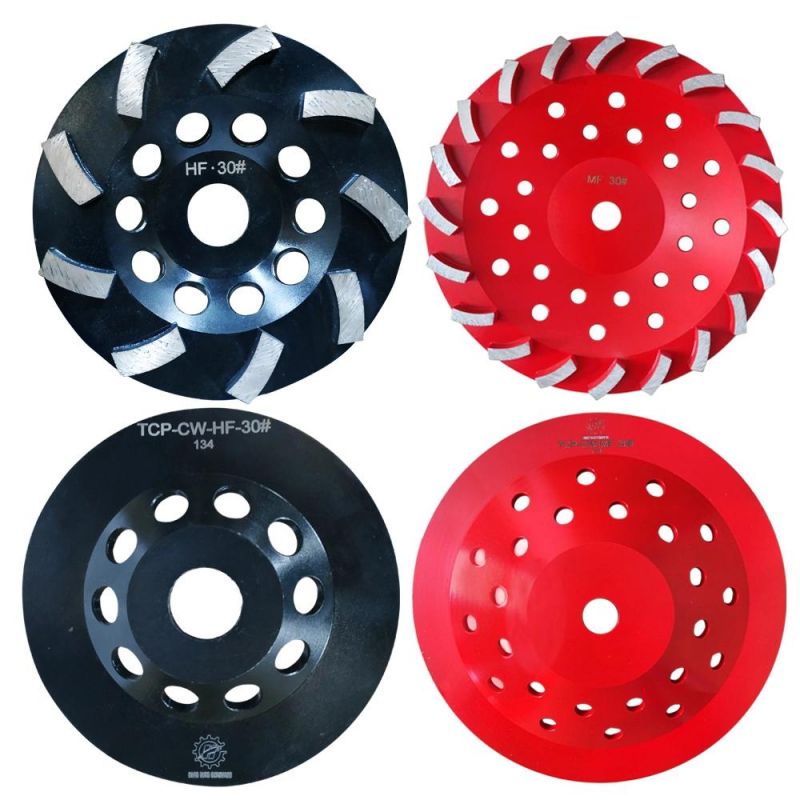

HTG-SPCW Turbo Row Diamond Concrete Grinding Wheels



Product Description>>

• This aggressive turbo cup grinding wheel provides for very fast cutting action on masonry, stone and concrete. High diamond concentration for longer life and aggressive material removal
• Large grinding segments with heat treated steel bodies which provides increases durability and wheel life
• High quality and brand new diamond segment grinding wheel cup.
• With air holes designed to aid in and maintain a cool stable cutting pattern and reduced wear.
• Designed to provide 30% faster stock removal.
• Processed with high quality synthetic diamond coating that provides for a more consistent diamond scratch pattern.
• Great choice for people who do granite and marble worktops, headstones, tilers, builders.

Product Name	HTG-TCP-CW Turbo Row Diamond Segments Cup Wheels
Segment Shape	Round
Applied Machine	Concrete Floor Grinder Machine/Floor Grinding Machine/Angle Grinder
application	Dry Grinding on Concrete and stone surface
Packing	1pcs/box
Specification	4''  100*9T*5*8*23mm  100*18T*5*8*23mm  30#--300# 125*9T*5*8*23mm MF 30# 50# 100# 300# 5"125*18*5*8*23mm 7"180*12T*5*8*28mm  30#--300# 7"180*24*5*8*28mm
Advantages	1) Specification is complete and varied. 2) Never mark the stone and burns the surface of the  stone 3) Good balance assures excellent grinding  effect 4) Long lifespan and stable performance 5) Competitive price and superior quality 6) Excellent service
Delivery and Payment	7-12 days upon receiving payment

This diamond grinding wheel has a high diamond concentration for a long serving time and aggressive material removal which provides a very fast cutting action on masonry, stone and concrete. The air holes designed is help to maintain and cool the cutting pattern and reduce wear so as to produce a more consistent diamond scratch pattern.

How to Use???

Follow carefully the instructions given in the machine handbook.
Never fit a diamond dish/cup wheel which is too loose or too tight on the flange.
Ensure the wheel is properly gripped to prevent slippage, but do not tighten with excessive force.
Never use a hammer. Keep flanges and screw threads clean and free of burrs and rust.
Replace distorted or damaged flanges before fitting the wheel.

Note
Be sure to wear ear protection, dust mask, goggles and protective clothing before using the angle grinder.

Manufacturer Center>>

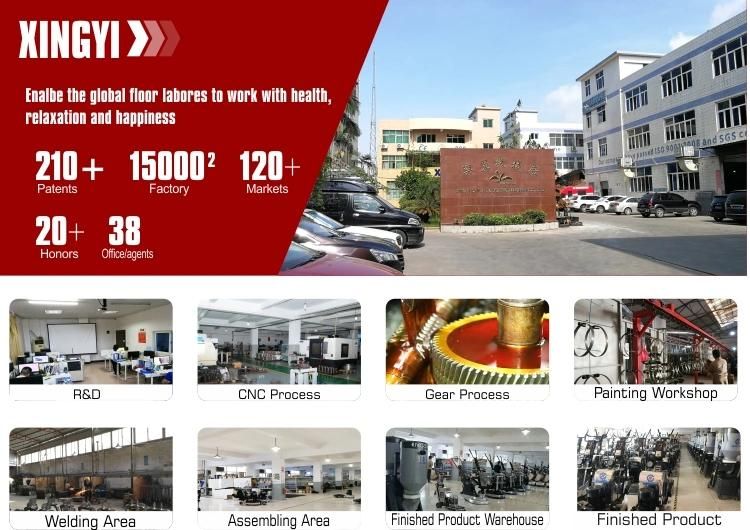

XINGYI started as a project company in 1999, and became known in the industry as one of the top caliber in providing services and for manufacturing high quality floor grinder, industrial vacuum cleaner,floor polishing machines worldwide.We also offer our High Tech Grinding Tools including metal pads and resin pads with fantastic value and a good price. Our cutting, grinding/polishing and coring tools are engineered in a variety of grades for DIY Customers and professional users.Specially designed tools are available for any standard apllication. We can customize tools as per your exact needs.All of our products are under strict quality standards. Our quality syestem conforms to ISO 9001 rules.

If you have any problems,please don't hesitate to contact us.

Jane Ling - international sales Dept
Tel:+86-15960788816
E-mail:service04@polishingmachine.cc

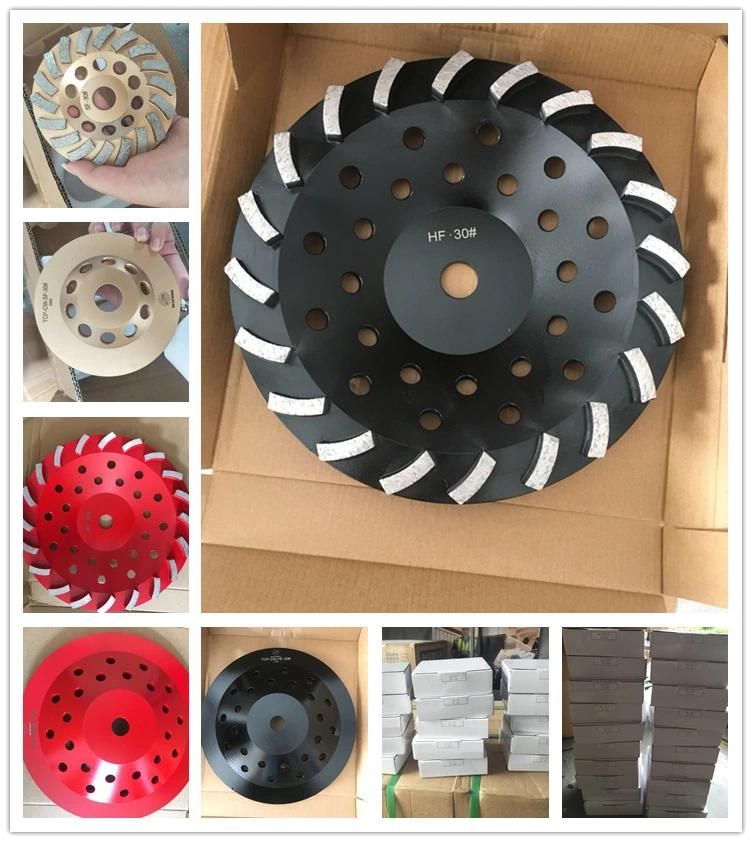

Packing & Delivery>>

Payment must be within 7 days after order.We normally delivery goods within 3 days after payment,also it depends on the quantity of order.The Express usually take 3~7 days depends on the country which you deliver to.

FAQ>>

Q: Are u the manufacturer ?
A: Yes of course, we are the manufacturer ! we welcome clients to visit our factory to inspect our
produce process at any time.Our factory is located in Jinjiang, China ( Xiamen airport, Xingyi pick up )

Q: What is your packaging ?
A: Each diamond grinding cup wheel for angle grinder is packed in a standard box.

Q: What is your payment method ?
A: 100%^Or 50% T/T advance, the balance should be pay off before shipment.

Q: What are diamond grinding cup wheel used for?
A: Diamond wheels are grinding wheels with industrial diamonds bonded to the periphery,with many
big diamond segments can undertake heavy workloads, for example, grinding concrete and stone,
while those with small or sparse diamond segments are normally used for fast removal of paints,
wallpapers, glues, epoxy and other surface coatings.They are used for grinding extremely hard materials
such as carbide cutting tips, gemstones or concrete.

Q: What is your delivery time ?
A: 7~20 days ( according to the total quantity )
