• Model NO.：ACM
• Working Style：High-speed universal
• Disc Diameter：150mm
• Variable Speed：With Variable Speed
• Certification：Ce, Atex, TUV, SGS
• Transport Package：Fumigated Wood Case
• Specification：ACM
• Trademark：TOPSUN
• Origin：Yantai, China
• HS Code：8474
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. ACM Working Style High-speed universal Disc Diameter 150mm Variable Speed With Variable Speed Certification Ce, Atex, TUV, SGS Transport Package Fumigated Wood Case Specification ACM Trademark TOPSUN Origin Yantai, China HS Code 8474 Production Capacity 5 PCS/Month

Product Description

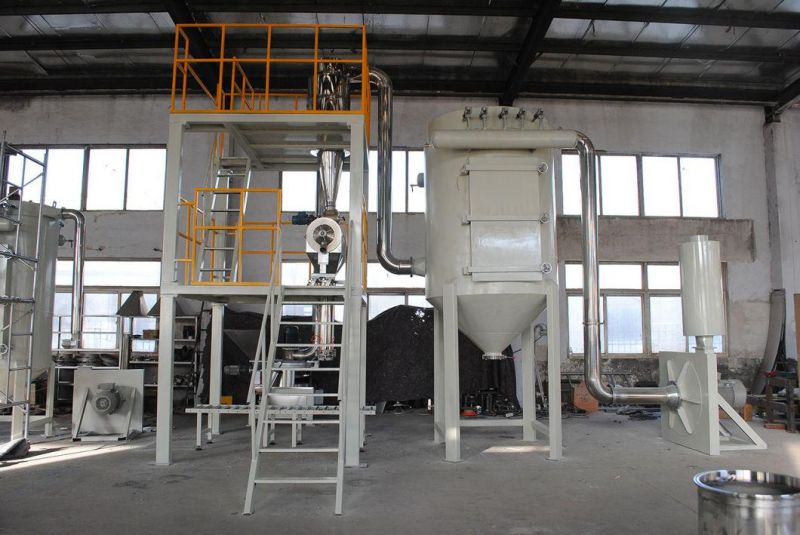

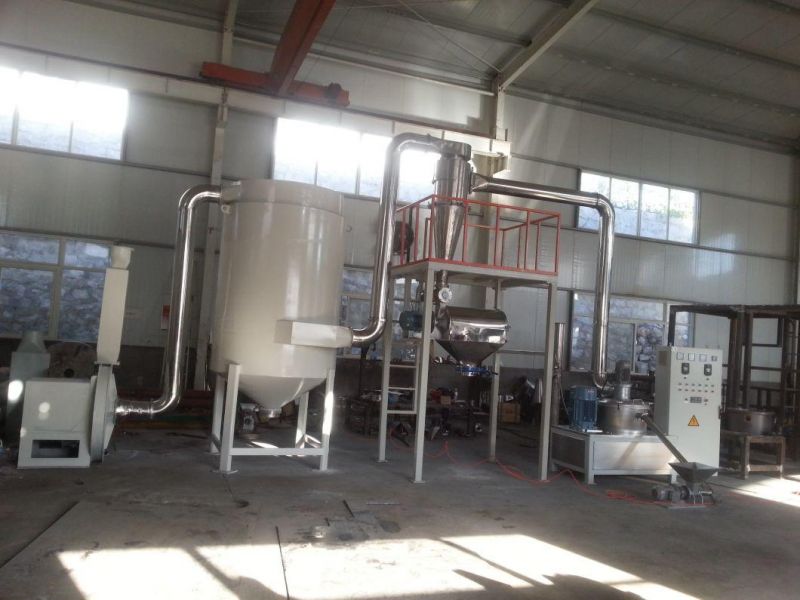

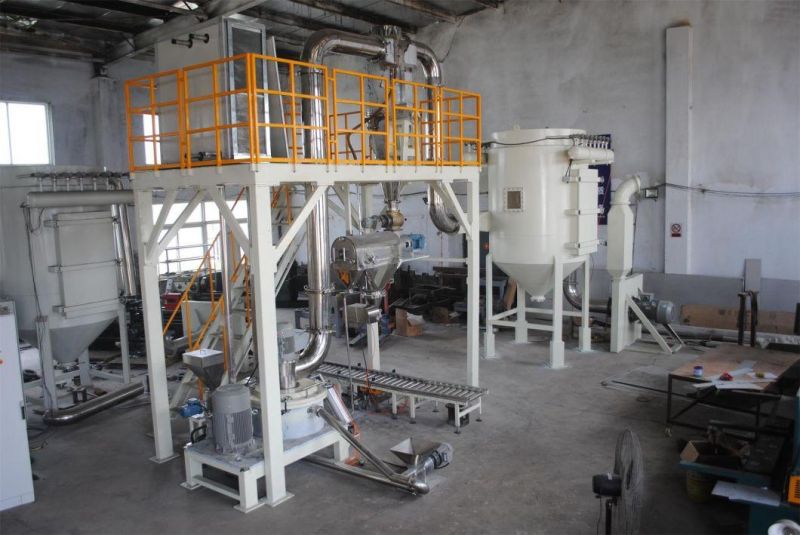

Air Classifier Mill:
Powder Coating/Paint Producing/Manufacturing/Production/Making Air Classifier/Classifying Grinding Mill Website: ytopsun.en.made-in-china.com,  ytopsun.en.made-in-china.com              http://ytopsun.en.made-in-china.com


1. Features:

Safety in accordance with EU explosion resistant standard ATEX/PSR11
Low noise design (from mill to fan system)
Particle size distribution adjustable
Mill body temperature and air intake volume monitoring
Rotary sieve with unique design and durable for mesh wear issue
Whole grinding system designed for powder dust free
Finished powder products with more than 98 percent
High output, easy operation cleaning and maintenance

2. Optional:
Heat exchanger
Mill speed by VFD
Interlock, monitoring and alarming system installed
Additive feeder
Single, double and multiple cyclone design
Conventional type or vertical platform design with full automatic type
automatic weighing and packing system

3. Technical Parameters:


Model	Mill Motor kw	Rotor rpm	Classifier Motor	Classifier rpm	Fan kw	Air cbm/h	Capacity kg/h	Overall dimensions mm
ACM-05	4	11000	0.75	0-3000	4	800	30-80	2100*1000*2150
ACM-10	7.5	7000	1.5	0-3000	11	2500	100-260	6200*1250*3200
ACM-15	11	7000	1.5	0-3000	15	3000	200-350	6500*1300*3300
ACM-20	15	6600	2.2	0-3000	22	3500	300-400	7500*1300*3600
ACM-30	22	5500	3	0-3000	30	4500	400-550	7900*1500*3600
ACM-40	30	4600	5.5	0-3000	37	5500	600-800	8000*1700*3600
ACM-50	37	4000	7.5	0-3000	45	6500	1000-1200	9000*1900*3900
ACM-60	45	3500	7.5	0-3000	55	8000	1200-1600	9000*2000*4000

4. Company:

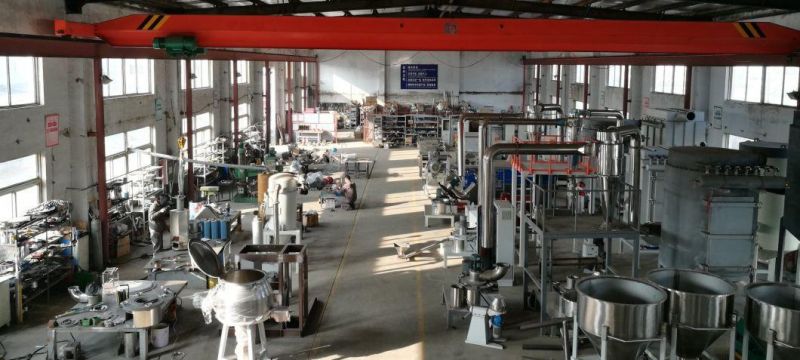

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, etc. international standards; we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistent quality, effective communication, responsible service.
5. Why choosing us?

Our boss has worked in this industry for more than 13 years.
Our vice GM has worked in this industry for more than 20 years.
Our technical manager has worked in this industry for more than 7 years.
Our production manager has worked in this industry for more than 8 years.
We have an excellent team. We are experienced, excellent, friendly and responsible, with a view to long term cooperation.
