Auto CNC Punch Press Turret Tooling Punch Die Grinder V6

AFAB Machinery and Tools Ltd.
  • Type:Die Grinder
  • Power Source:Electricity
  • Object:Punch
  • Application:Sheet Metal
  • Disc(Wheel) Type:Grinding Disc
  • Material:Metal

Base Info

  • Model NO.:V6
  • Working Style:High-speed universal
  • Disc Diameter:150mm
  • Variable Speed:Without Variable Speed
  • Voltage:AC380 ,220V,3phase
  • Wheel Motor:2.2kw,2840rpm
  • Servo Motor:0.75kw
  • Max,Grinding Dia:200mm
  • Max,Grinding Stoke:150mm
  • Wheel Type:Conductive CBN
  • Wheel Diameter:135mm
  • Weight:600kg
  • Transport Package:Poly Woodcase
  • Specification:820x810x1810mm, 650kg, 2.5cbm
  • HS Code:8460390000
  • Production Capacity:200,Year

Description

Why regrinding punch and die?
Auto Punch Die grinder is designed to sharpen punch and die for punch press tooling efficiently and easily.Keep punch die sharpening.
1.Improve holes quality
2.Reduce burrs on sheet
3.Extend tooling and machine life
4.Keep punching quiet

What tooling can sharpen?
AFAB punch die grinder sharpen all type tooling for Trumpf Trumatic,Trumpf Trupunch, Boschert, Haco, Pullmax , Amada, Finn-Power,Prima-Power, Durma, Schiavi, LVD, Strippit, Danobat, Yawei, Nisshinbo,Euromac, Baykal, FIM, Murata Muratec, Rainer, MVD, Tailift, SimasV,Yangli, Peliant, SNK, Ermarksam,AMC, Hesse-aschinen, Ermaksan, Dener,ITEK

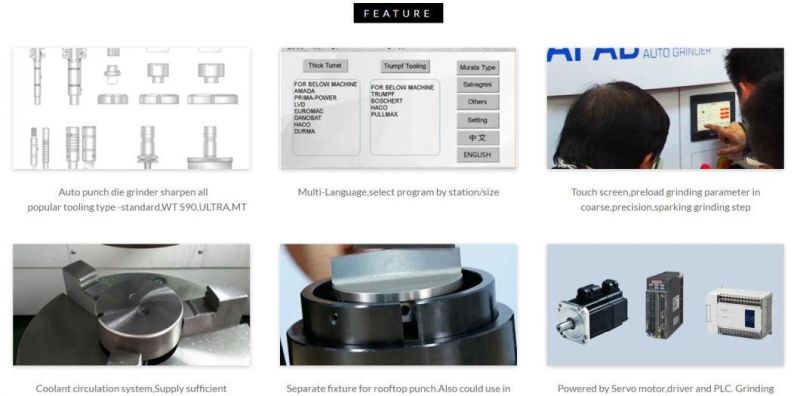

Auto CNC Punch Press Turret Tooling Punch Die Grinder V6Auto Tooling Grinder Advantage
1.Fully auto grinder,Automatical action for Detecting tooling surface,Grinding feed and collant
2.Preload grinding parameter,Automatically compete coarse grinding,precision grinding and polish grinding. No need grinding experience.
3.Touch screen system, easy to operate,Multi-Language support
4.Basic type tooling A.B station sharpen punch only after removing guide.
5.Fixed clamp fixture, High precision on grinding surface
Auto CNC Punch Press Turret Tooling Punch Die Grinder V6
 Specification(Auto punch die grinder) V6 Voltage AC380V,50HZ Power of main motor 2.2KW,2840RPM Motor of rotating table 0.1KW,1440RPM Servo motor 0.75KW Cooling motor 0.045KW Max.Grinding diameter 200mm Diameter of wheel(exhcange with Togu 3) 150mm Measure of Machine(LXWXH)   820x810x1810mm
Packing and Install
Auto CNC Punch Press Turret Tooling Punch Die Grinder V6

Our customers
Auto CNC Punch Press Turret Tooling Punch Die Grinder V6
AFAB EXHIBITION
Auto CNC Punch Press Turret Tooling Punch Die Grinder V6
Shipping by express or sea
Auto CNC Punch Press Turret Tooling Punch Die Grinder V6
