• Model NO.：EA-M19, EA-M20, EA-M35, EA-M40, EA-M45
• Hardness：Superabrasive
• Transport Package：Box
• Specification：50,60 through 500,600
• Trademark：E-Grind
• Origin：China
• HS Code：7105102000
• Production Capacity：3000000cts,Year

Basic Info.

Model NO. EA-M19, EA-M20, EA-M35, EA-M40, EA-M45 Hardness Superabrasive Transport Package Box Specification 50/60 through 500/600 Trademark E-Grind Origin China HS Code 7105102000 Production Capacity 3000000cts/Year

Product Description

Our metal bond mesh diamond combines both using life and working efficiency.
Suitable for resin bond, vitrified bond, metal bond, and electroplated bond system.
Application: glass, PCD/PCBN, dental tools, gemstone

EA-M19
Medium toughness, Irregular shape,
new cutting edges always occur during the grinding process. The texture surface offers good bond combining ability.
For resin bond and Vitrified bond system
Available Sizes: 60/70 through 500/600
It is also available in Ni coating

EA-M20
Medium Toughness, Rough and Irregular crystal,
Similar to EA-M19, but more durable.
For resin bond and Vitrified bond system
Available sizes: 80/100 through 500/600
It is also available in Ni coating

EA-M35
Medium-High Toughness, Angular shape.
Excellent free cutting ability and more durable than EA-M40.
For resin bond and Vitrified bond system
Available sizes: 30/40 through 120/140.
It is also available in Ni coating

EA-M40
Medium toughness, Angle crystal, Friable.
Excellent free cutting ability.
For Resin bond, Electroplated and Vitrified bond system.
Available Sizes: 30/40 through 500/600
It is also available in Ni coating

EA-M45
High Toughness, Semi-blocky
It combines the long using life and high working efficiency.
For Resin Bond system, Vitrified bond system, Electroplated tools.
Available Sizes: 40/50 through 500/600
It is also available in Ni coating and Ti coating.

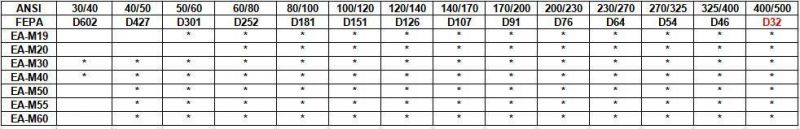

Available Sizes:
