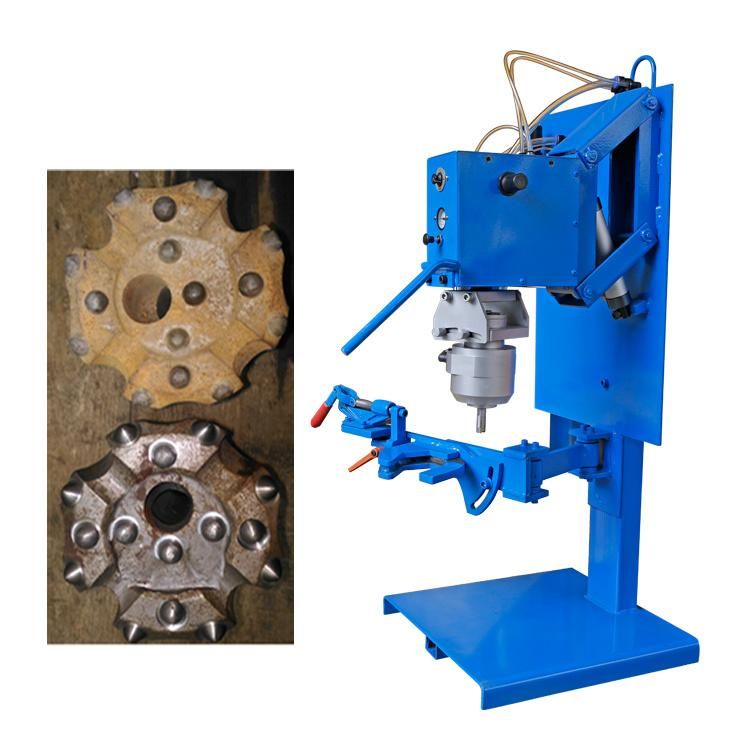

Bestlink Tapered Drill Bit Sharpening Grinder DTH Button Bit Grinding Machine
Xiamen Bestlink Factory Co., Ltd.- Type：Button Bit Sharpening
- Power Source：Pneumatic
- Object：Drilling Bit
- Application：Construction
- Material：Steel
- Transport Package：Carton
Base Info
- Model NO.：BTON500
- Trademark：BESTLINK
- Origin：China
- HS Code：84609090
- Production Capacity：1000PCS,Year
Description
Basic Info.
Model NO. BTON500 Trademark BESTLINK Origin China HS Code 84609090 Production Capacity 1000PCS/YearProduct Description

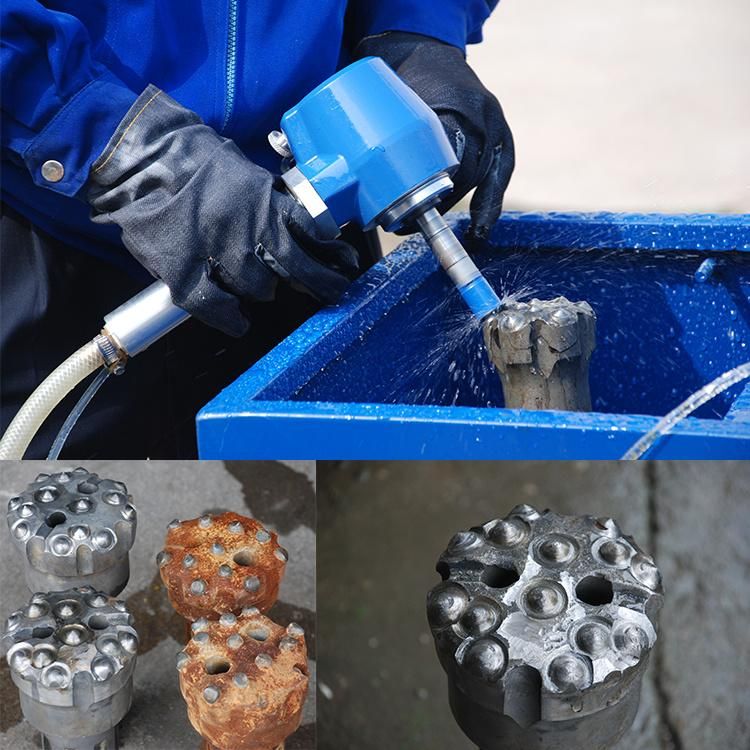

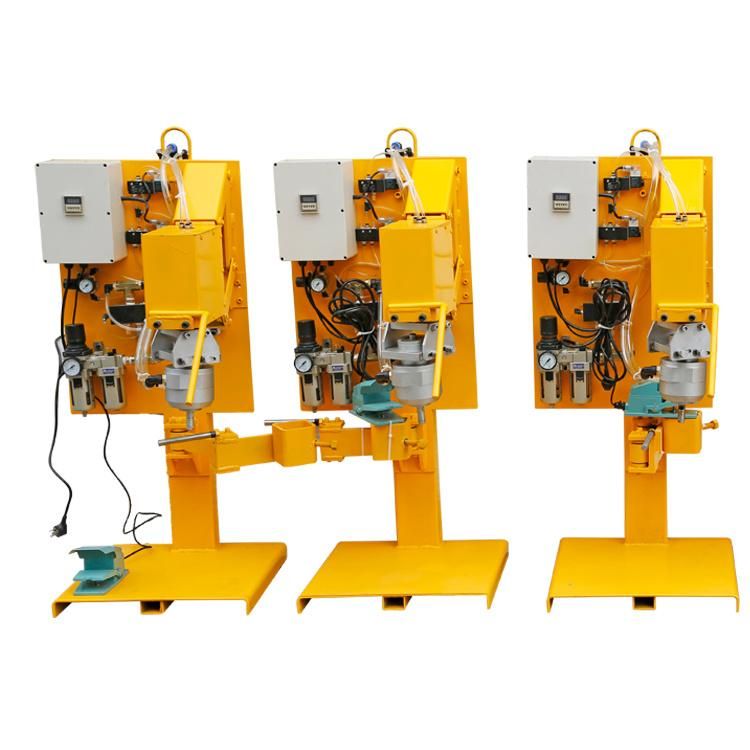

Bestlink Tapered Drill Bit Sharpening Grinder DTH Button Bit Grinding MachineDepending on your needs the grinders listed on the left are available in both pneumatic and semi-hydraulic configuration. The pneumatic system is what set the standard for button bit grinding and still proves to be a very effective tool for maximizing bit performance in all drilling conditions.
| Rotation speed | 20000 rpm | |
| Motor: Pneumatic (air powered) Power output | 1.5 KW | |
| Work pressure | 5-7 bar (100 psi) | |
| Max. air pressure | 8 bar (115 psi) | |
| Air consumption | 2.2 m3 / min (80ft3/min) | |
| Max. water pressure | 4 bar (60 psi) | |
| Air hose diameter | 19 mm | |
| Water hose diameter | 4 mm | |
| Weight excl. packaging | 120.0 Kg | |
| Weight incl. Packaging | 130.0 Kg | |
| Sound level | 92 dB(A) |
