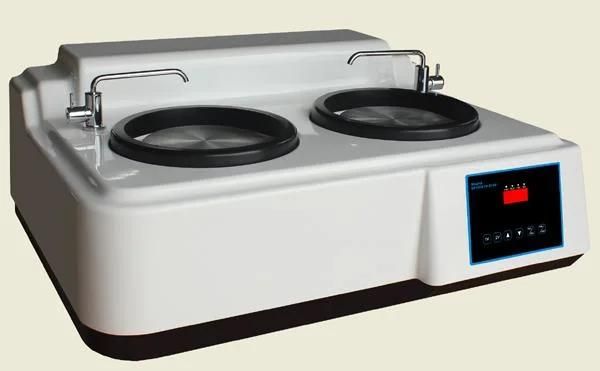

Metpol 520/521/522 Double Wheel, Bench Top Grinder/Polishers with Timer
Shenzhen Pride Instrument Inc.- Type:Disc Grinder
- Power Source:Electricity
- Object:Metals
- Application:Construction
- Disc(Wheel) Type:Sanding Discs
- Material:Metal
Base Info
- Model NO.:METPOL 520
- Working Style:High-speed universal
- Disc Diameter:200mm,8"
- Variable Speed:With Variable Speed
- Power Supply:220V, 110 (60 Hz)
- Weight:56kg
- Motor Power:550W
- Dimensions:870 X 760 X 560 mm
- Transport Package:Packing in Wooden Case
- Trademark:Pride
- Origin:Shenzhen, China
- Production Capacity:1000,Month
Description
Basic Info.
Model NO. METPOL 520 Working Style High-speed universal Disc Diameter 200mm/8" Variable Speed With Variable Speed Power Supply 220V/ 110 (60 Hz) Weight 56kg Motor Power 550W Dimensions 870 X 760 X 560 mm Transport Package Packing in Wooden Case Trademark Pride Origin Shenzhen, China Production Capacity 1000/MonthProduct Description
METPOL 520/521/522 GRINDER/POLISHER equipped with double discs and features stepless speed changing for grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. By adjusting the transducer, it can realize the rotating speed of grinding and polishing disc adjustable from 50 to 1000 rpm. This bring this machine with much more extensive applying and make it become the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Features:
Stepless speed changing 50-1000 rpm
CCW and CW rotating direction control
Quick exchanging disc
Technical Specifications
Model No. | METPOL 520 | METPOL 521 | METPOL 522 |
Working disc | 200mm/8" | 230mm/10" | 300mm/12" |
Rotating speed of working disc: Stepless speed changing 50-1000 rpm
(other speeds are optional)
Power supply: Single phase, 220V/ 110V (60 Hz/50Hz)
Motor power: 550W
Dimensions: 870 x 760 x 560 mm
Net weight: 56 Kg
