• Model NO.：330
• Variable Speed：With Variable Speed
• Power：3kw
• Votage：380V
• Frequency：50Hz
• Electric Current：22.0A
• Speed：0-750rpm
• Working Width：650*650mm
• Water Tank：60L
• Driving Method：Gear
• Weight：120kg

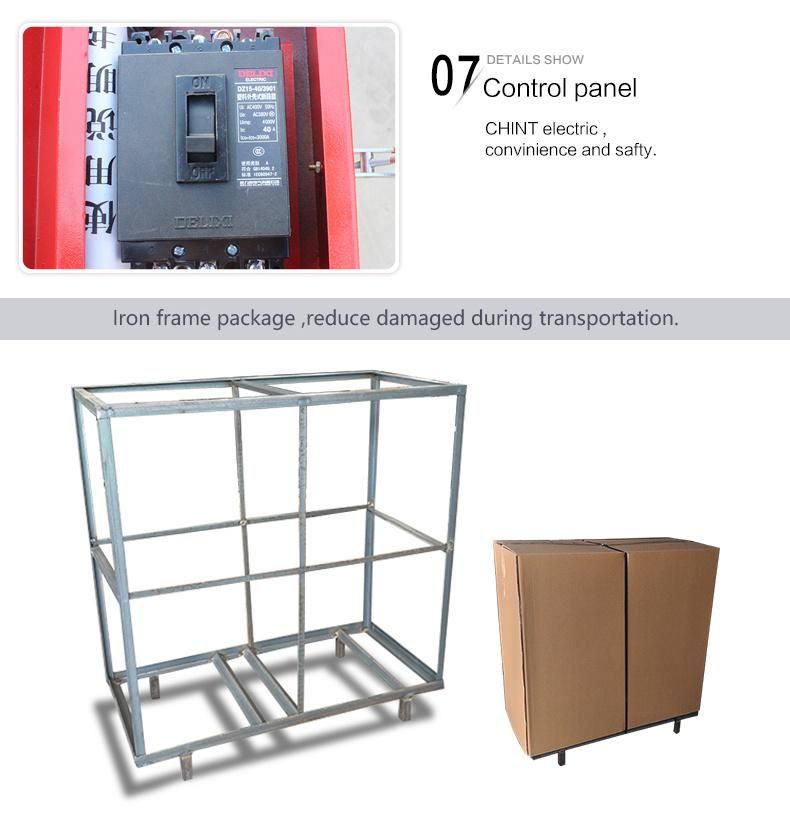

• Transport Package：Wooden or Iron Case
• Trademark：IDEAL
• Origin：Henan
• HS Code：8474802000
• Production Capacity：500,Month

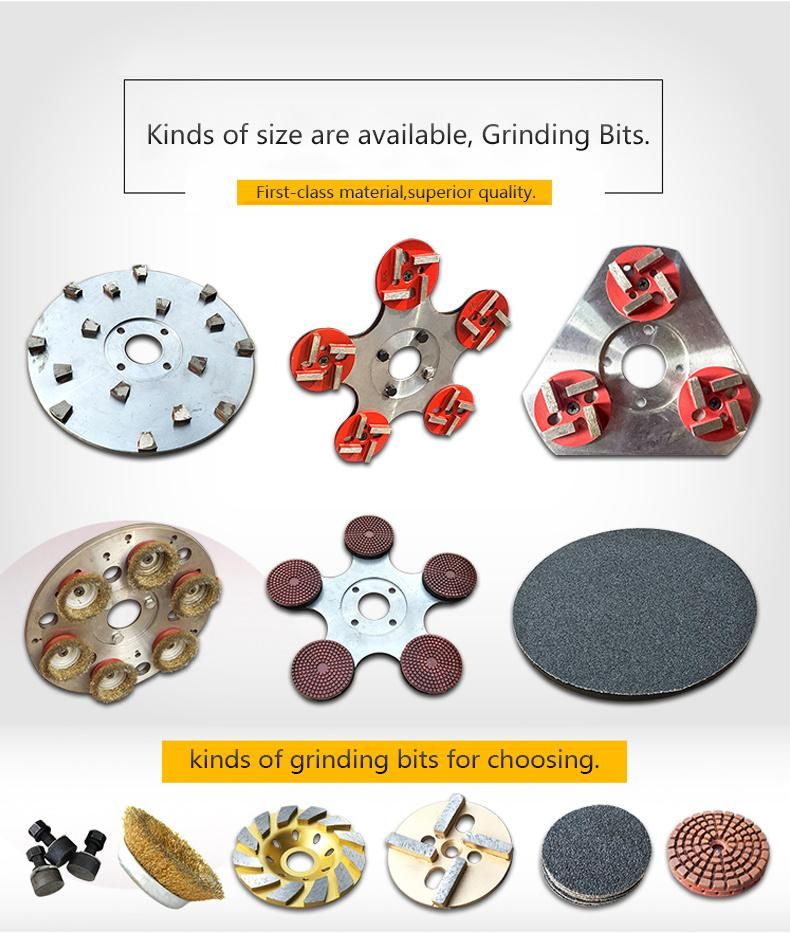

ModelYM330YM630YM700Pan diameter330MM630mm700mmMotor power 3KW7.5kw15kwPan speed0-1800R/MIN0-1800r/min0-1800r/minGrinding bit amount3PCS OR 5PCS12pcs12pcsWork efficiency2500-3500m/8h3000-4000m/8h3000-4000m/8hMotor Speed1440r/min1440r/min1440r/minOutline size1100*500*950mm1280*650*1100mm1280*710*1100mmWeight120kgs280kgs350kgs

Instruction:

1. Turn up the machine, clean up the three-blades pan, put the rotary vane disc equip the head of three blades, Put down the machine to the working site.
2. Connect the power by explosion-proof plug,(must use international standard cable conductor equal or more than 4²),turn on the red start button, red power led lights up.
3. press the green start button, frequency charger start working.
4. Rotate the speed switch , the motor start working , machine start normal work.
5. After finish working, turn down the speed switch to minimum value, press red stop button after the machine completely finished working, then close the power;(attention:Red stop button is allowed when emergency.)

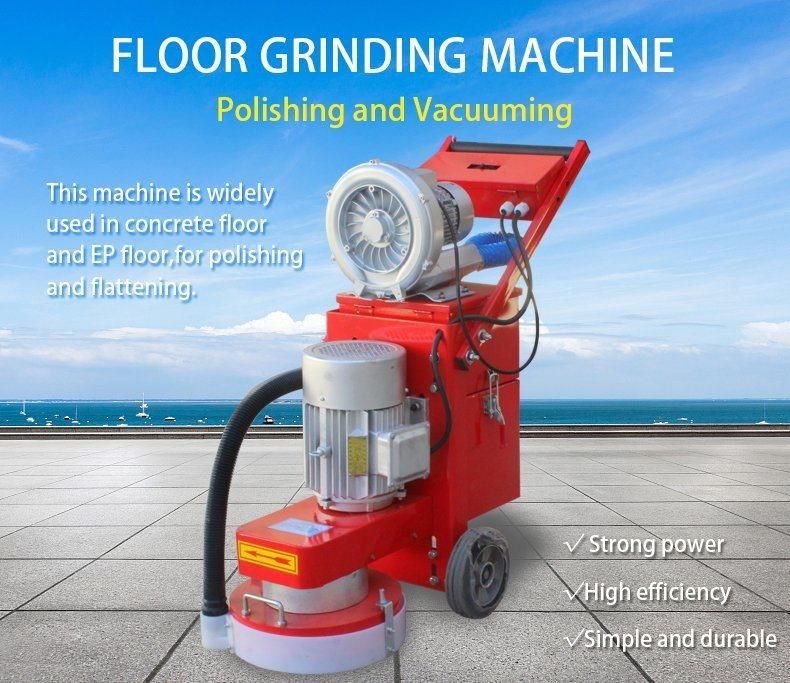

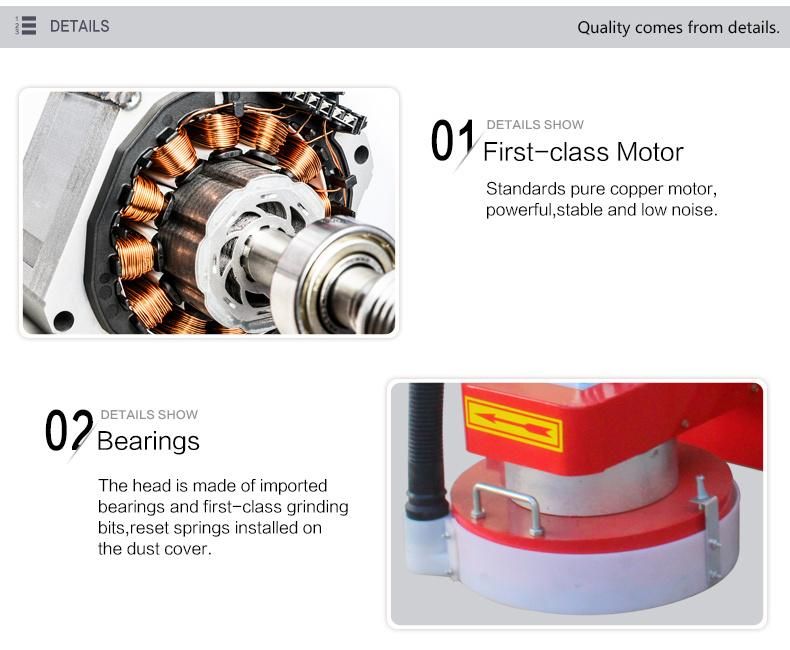

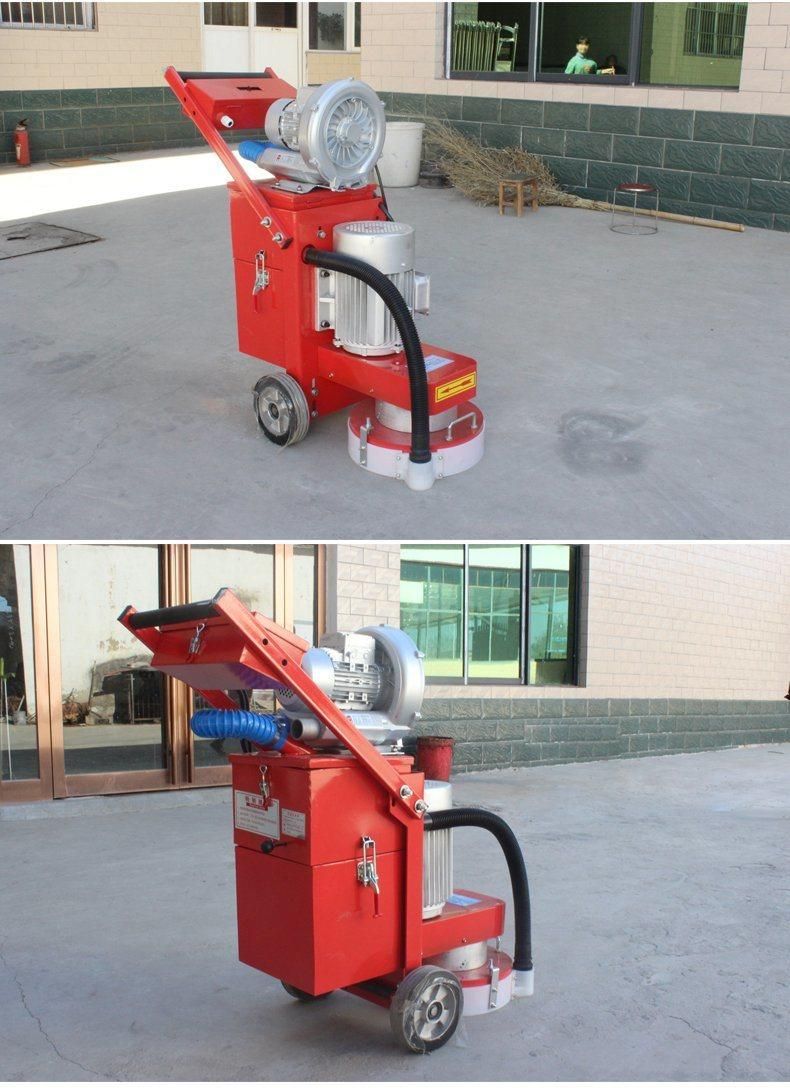

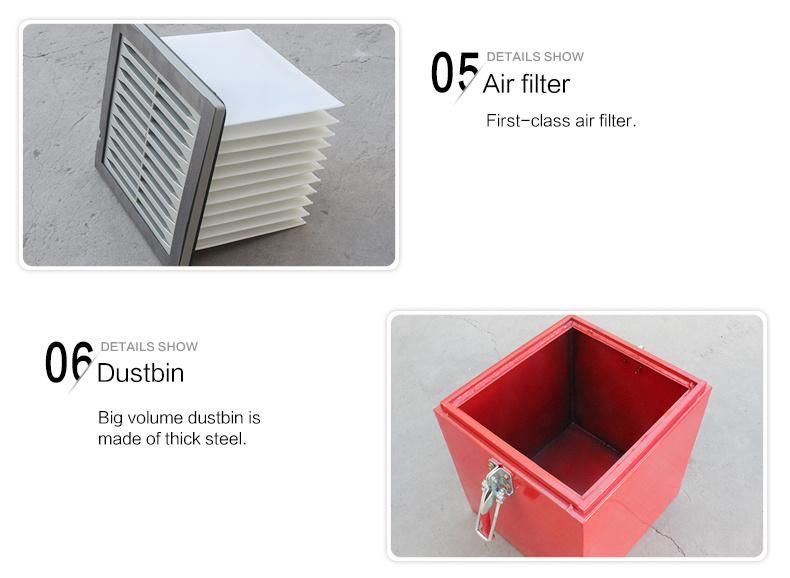

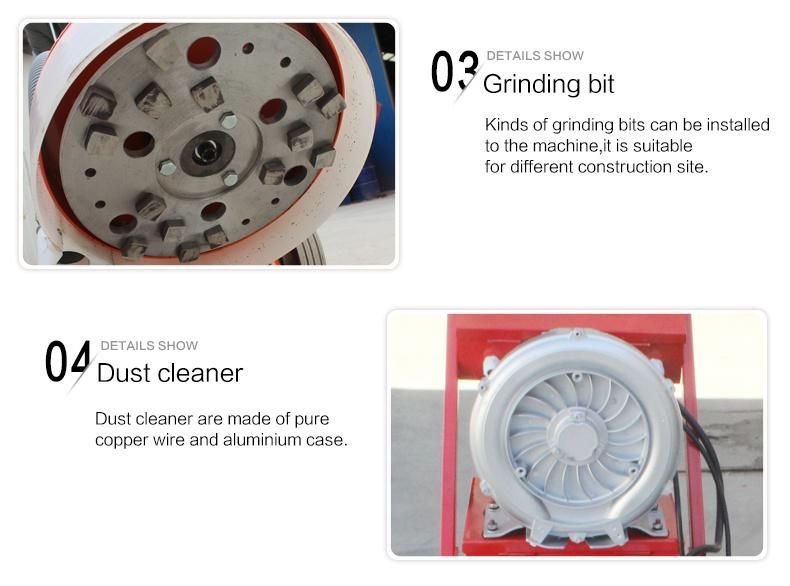

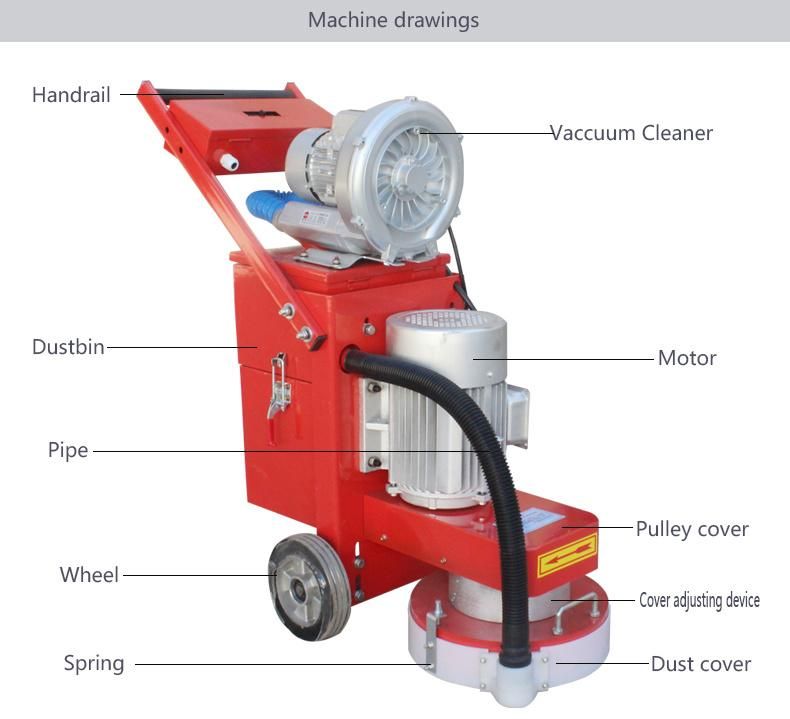

product details:
