• Model NO.：G330
• Disc Diameter：180mm
• Variable Speed：With Variable Speed
• Power：3kw
• Votage：380V
• Frequency：50Hz
• Electric Current：22.0A
• Noisy：50-60 Dba
• Speed：0-750rpm
• Working Width：650*650mm
• Water Tank：60L
• Driving Method：Gear
• Weight：130kgs
• Transport Package：Wooden or Iron Case
• Trademark：IDEAL
• Origin：Henan
• HS Code：8474802000
• Production Capacity：500,Month

Basic Info.

Model NO. G330 Disc Diameter 180mm Variable Speed With Variable Speed Power 3kw Votage 380V Frequency 50Hz Electric Current 22.0A Noisy 50-60 Dba Speed 0-750rpm Working Width 650*650mm Water Tank 60L Driving Method Gear Weight 130kgs Transport Package Wooden or Iron Case Trademark IDEAL Origin Henan HS Code 8474802000 Production Capacity 500/Month

Product Description

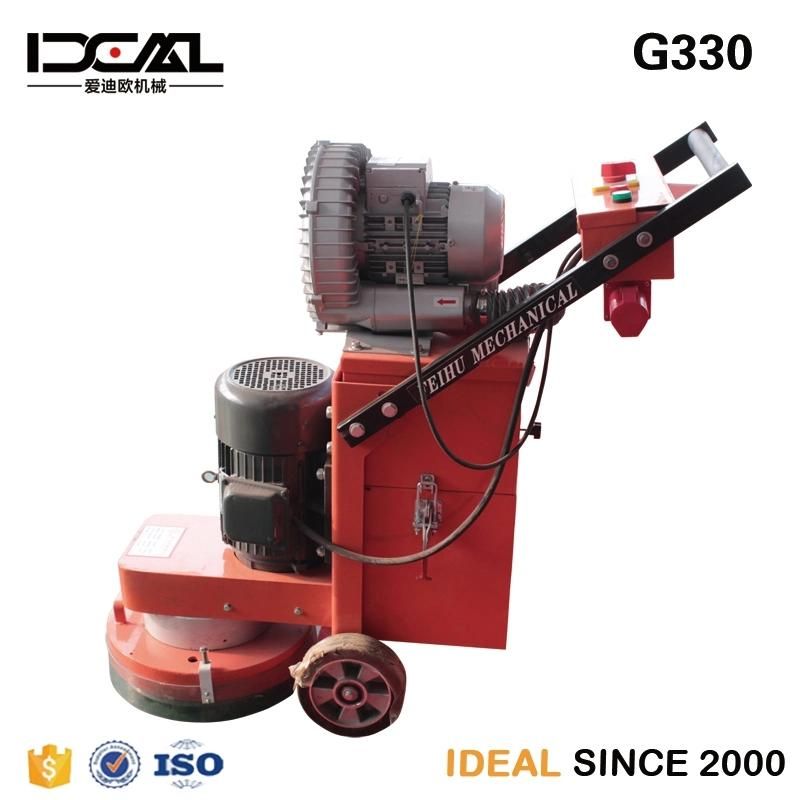

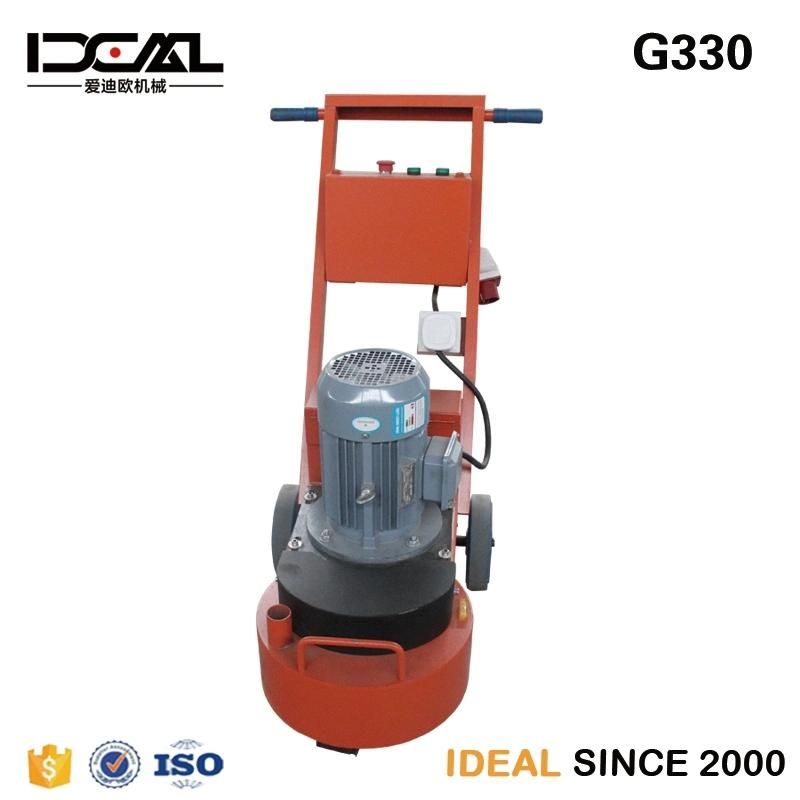

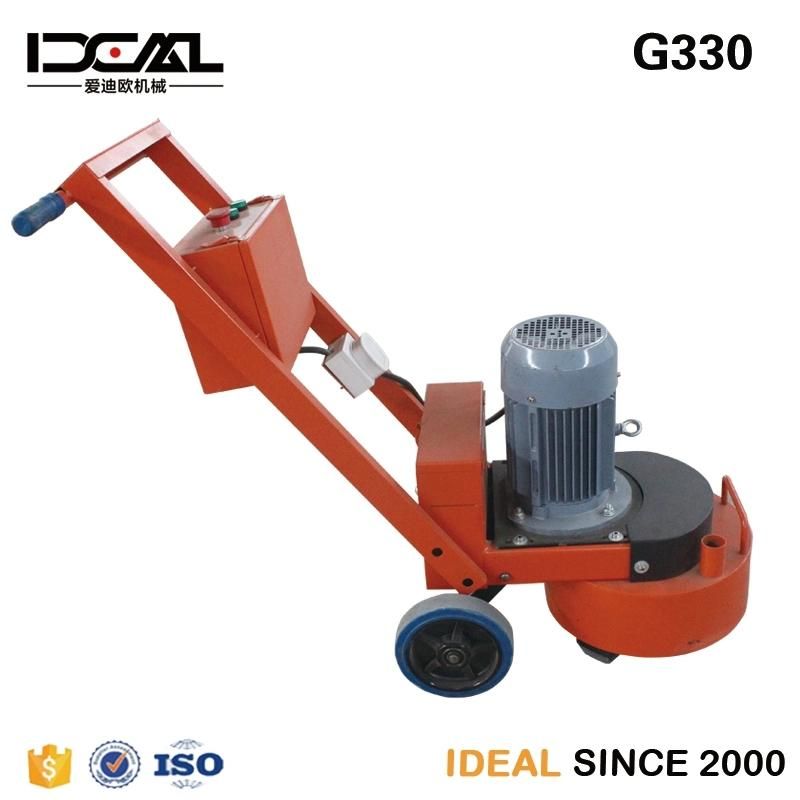

Small Floor Grinding Machine Floor Polisher
Instruction:

1. Turn up the machine, clean up the three-blades pan, put the rotary vane disc equip the head of three blades, Put down the machine to the working site.
2. Connect the power by explosion-proof plug,(must use international standard cable conductor equal or more than 4²),turn on the red start button, red power led lights up.
3. press the green start button, frequency charger start working.
4. Rotate the speed switch , the motor start working , machine start normal work.
5. After finish working, turn down the speed switch to minimum value, press red stop button after the machine completely finished working, then close the power;(attention:Red stop button is allowed when emergency.)

product details:

Power: 3kw(5.5hp)
Voltage: 220V 50hz
Dust collecting Motor: 0.75kw
Voltage: 220v
Dust collection way: Import standard filter
Driving mode: Belt
Working diameter: 350mm
Grinding head: 3 PCS
Capacity of dust collection barrel:20L
Weight: 130KGS


Package:  iron frame or wooden case make it more safety





Other products:

steel bar machines: steel bar cutter, steel bar bender, steel bar straightening and cutting machine, stirrup bending machine, thread rolling machine

road equipments: power trowel, plate compactor, tamping rammer, concrete cutter, road roller, floor grinder, concrete truss screed, concrete vibratory screed, bull float

concrete machines: frame type concrete vibrator, piggyback vibrator, concrete ground cleaning machine.

and all the parts of our machines.

Ideal products are best sold in demestic market and very popular in Mid-east, Africa, European, American, ect. Our superior quality and perfect after-sale service have already gotten customers highly praise.
