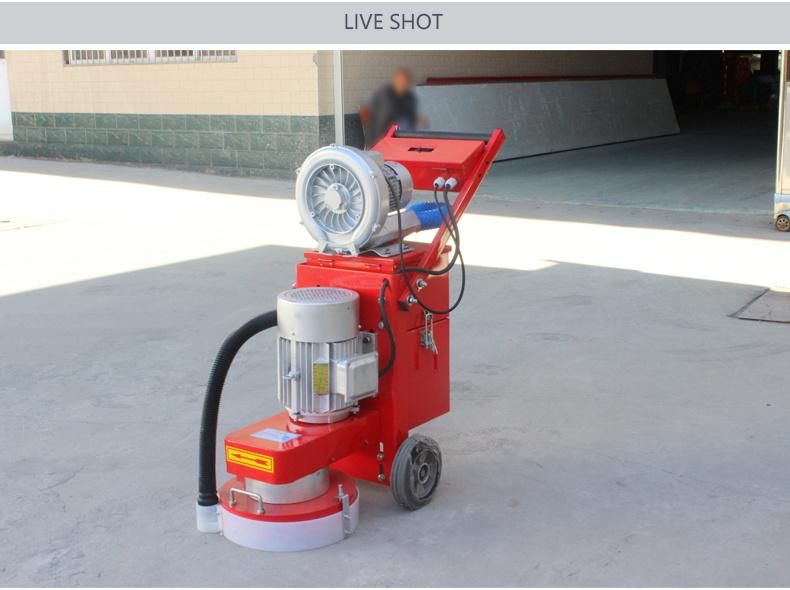

Concrete Grinder Machine Polishing Tool
Henan Ideal Machinery Equipment Co., Ltd.- Type：Bench Grinder
- Power Source：Electricity
- Object：Turning Tool
- Application：Construction
- Disc(Wheel) Type：Grinding Disc
- Material：Metal
Base Info
- Model NO.：YM-330
- Working Style：High-speed universal
- Disc Diameter：330mm
- Variable Speed：With Variable Speed
- Power：3kw
- Votage：380V
- Frequency：50Hz
- Electric Current：22.0A
- Speed：0-750rpm
- Working Width：650*650mm
- Driving Method：Gear
- Weight：120kg

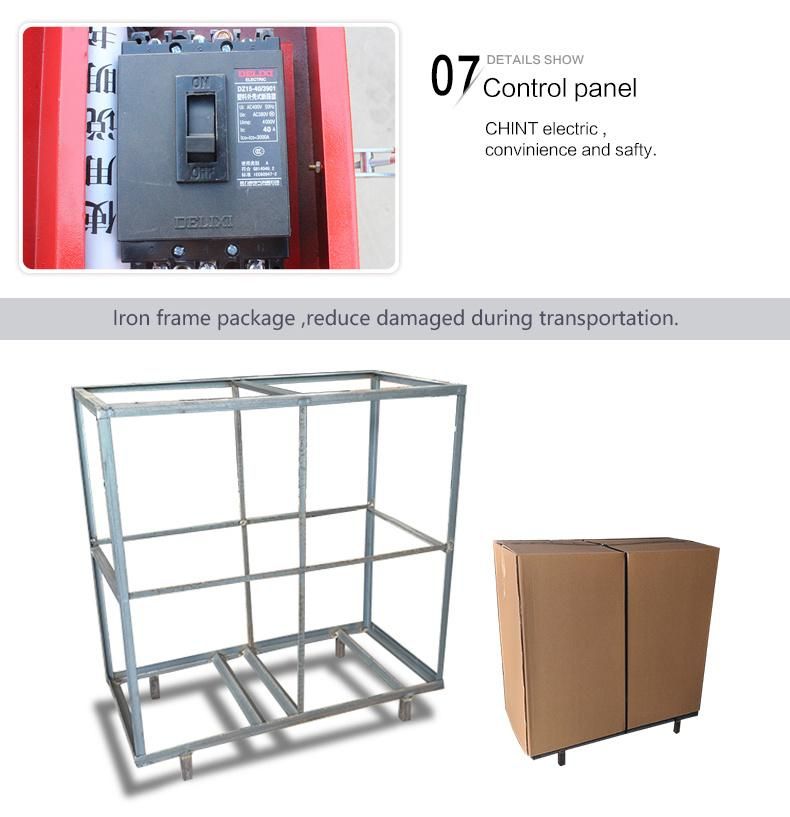

- Transport Package：Wooden or Iron Case
- Specification：1100*500*950mm
- Trademark：IDEAL
- Origin：Henan
- Production Capacity：500,Month
Description
Instruction:

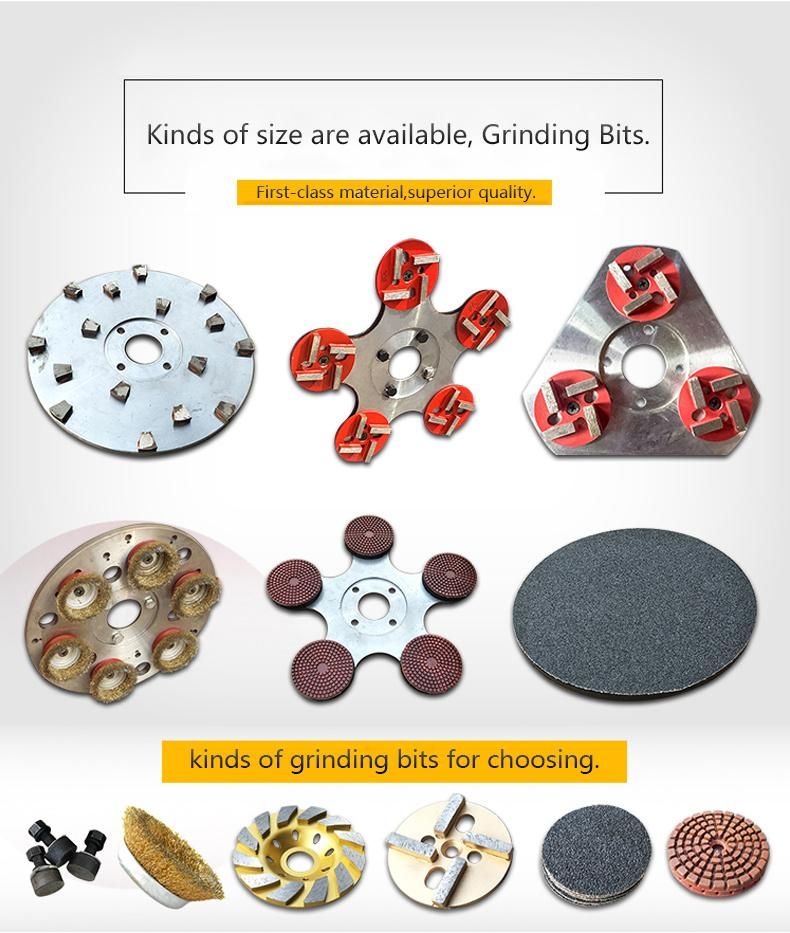

- Turn up the machine, clean up the three-blades pan, put the rotary vane disc equip the head of three blades, Put down the machine to the working site.
- Connect the power by explosion-proof plug,(must use international standard cable conductor equal or more than 4²),turn on the red start button, red power led lights up.
- press the green start button, frequency charger start working.
- Rotate the speed switch , the motor start working , machine start normal work.
- After finish working, turn down the speed switch to minimum value, press red stop button after the machine completely finished working, then close the power;(attention:Red stop button is allowed when emergency.)

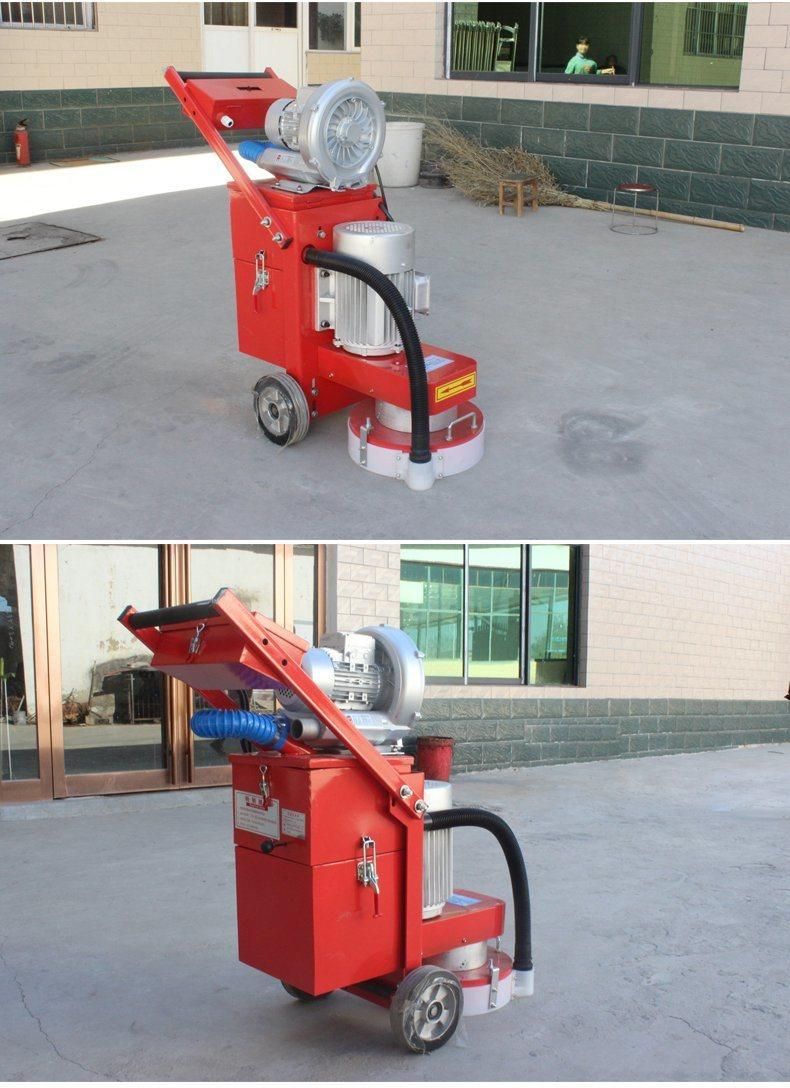

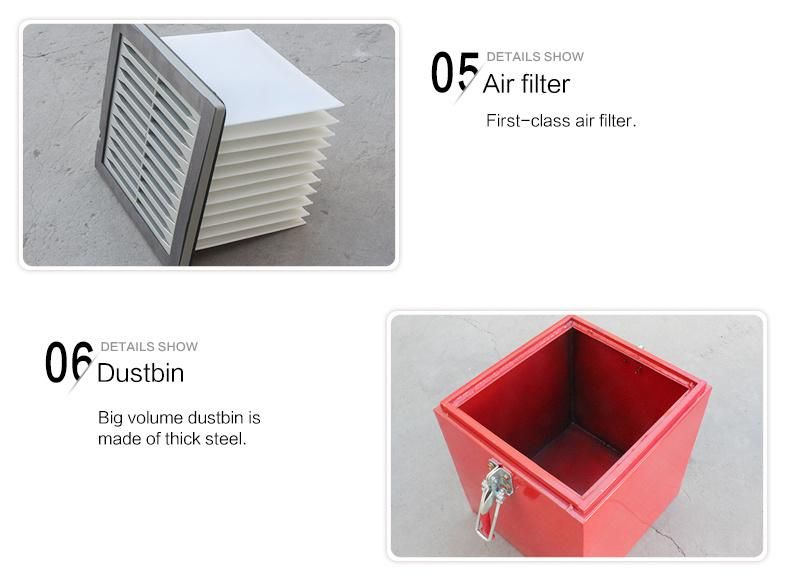

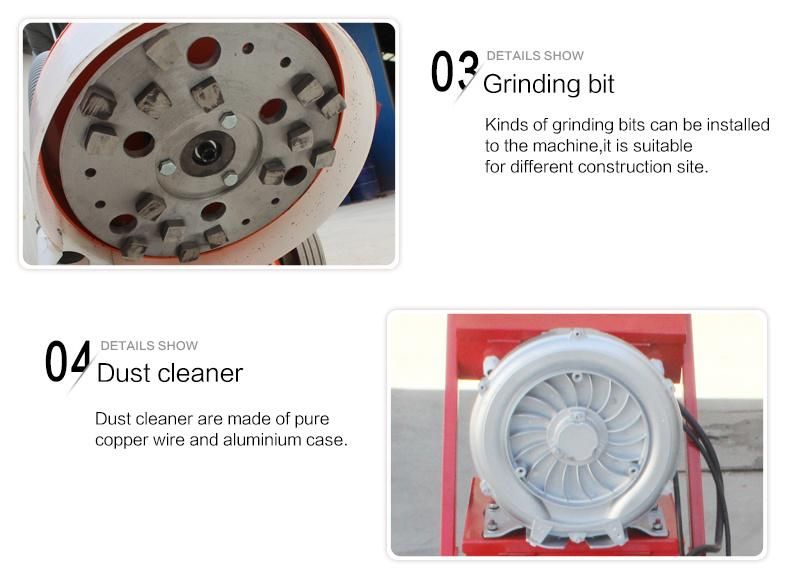

product details:
Other products:
steel bar machines: steel bar cutter, steel bar bender, steel bar straightening and cutting machine, stirrup bending machine, thread rolling machine
road equipments: power trowel, plate compactor, tamping rammer, concrete cutter, road roller, floor grinder, concrete truss screed, concrete vibratory screed, bull float
concrete machines: frame type concrete vibrator, piggyback vibrator, concrete ground cleaning machine.
and all the parts of our machines.
Ideal products are best sold in demestic market and very popular in Mid-east, Africa, European, American, ect. Our superior quality and perfect after-sale service have already gotten customers highly praise.
