• Model NO.：6A2T
• Technics：Sinter
• Working Style：Tool Grinding
• Double-Disc Fine Grinding：Superabrasives Diamond and CBN (Cubic Boron Nitrid
• Vitrified Wheels：Round, Square or Hexagonal Pellets
• Resin Bond Wheels：Solid Segmented Grinding Surface
• Resin Bonded Double Grinding Discs：Vitrified Bond Double Grinding Discs
• Grinder: Peter Wolters Am Stahli：O.D. 350mm-1600mm
• 6A2 6A2t 2A2t：Camshafts, Crankshafts, Valves and Cylinder Heads
• Transport Package：by Carton
• Specification：EN 12413
• Trademark：SAILI, BONDFLEX, SUMENG
• Origin：Jiangsu China
• HS Code：68042210
• Production Capacity：30000 PCS,Month

Basic Info.

Model NO. 6A2T Technics Sinter Working Style Tool Grinding Double-Disc Fine Grinding Superabrasives Diamond and CBN (Cubic Boron Nitrid Vitrified Wheels Round, Square or Hexagonal Pellets Resin Bond Wheels Solid Segmented Grinding Surface Resin Bonded Double Grinding Discs Vitrified Bond Double Grinding Discs Grinder: Peter Wolters Am Stahli O.D. 350mm-1600mm 6A2 6A2t 2A2t Camshafts, Crankshafts, Valves and Cylinder Heads Transport Package by Carton Specification EN 12413 Trademark SAILI, BONDFLEX, SUMENG Origin Jiangsu China HS Code 68042210 Production Capacity 30000 PCS/Month

Product Description

Superabrasives diamond and CBN (cubic boron nitride) grinding wheels are used in Double-Disc Fine Grinding

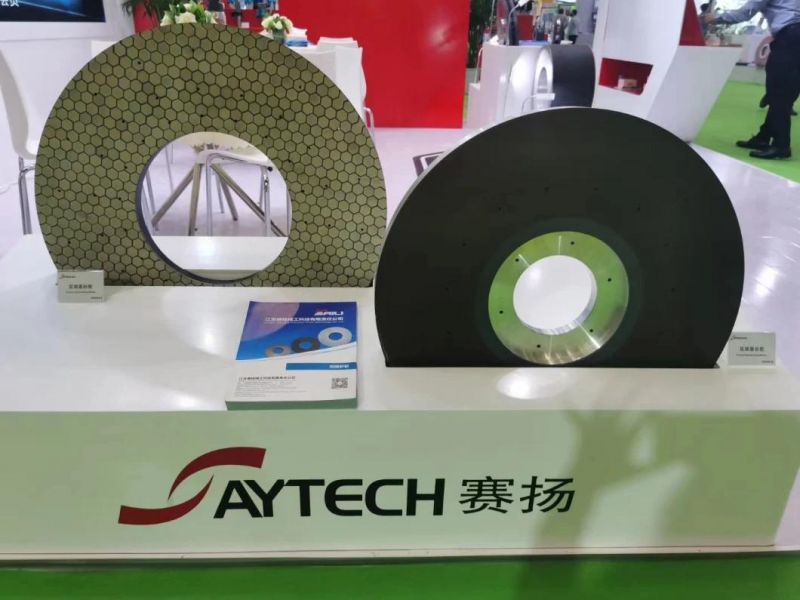

Vitrified wheels are supplied with configurations comprised of round, square or hexagonal pellets applied to steel backup wheels.
Vitrified bonds are the longest lasting and easiest to control for flatness.
resin bond wheels are provided with a solid segmented grinding surface. Resin wheels are suited for applications where minimal material removal and fine surface finish are required.

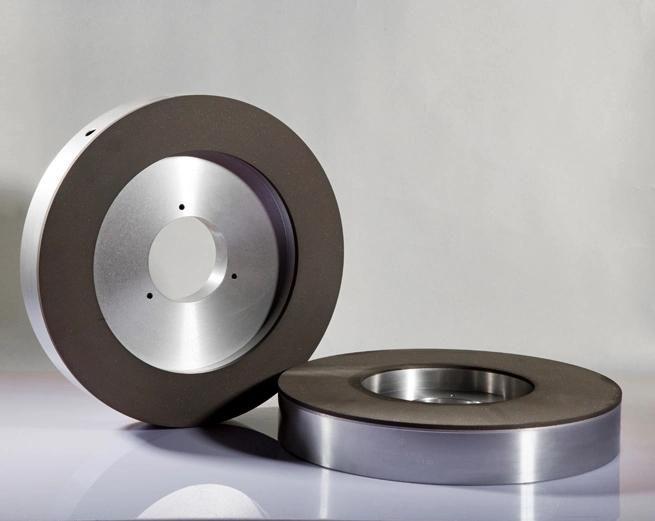

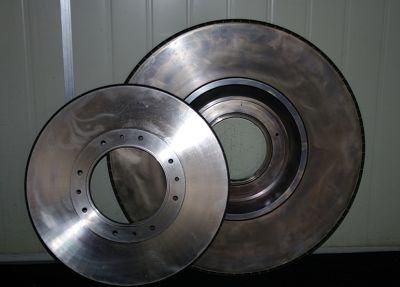

Double grinding discs

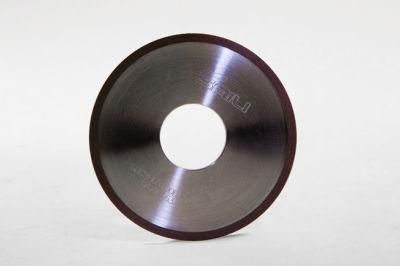

Resin bonded double grinding discs   6A2  6A2T  2A2T
Application: Grinding for Carbide and Cermet inserts, Powdered metal, Cast iron, Hardened Steel parts.
Compressor piston, Hydraulic parts
Diameter  305mm-1500mm

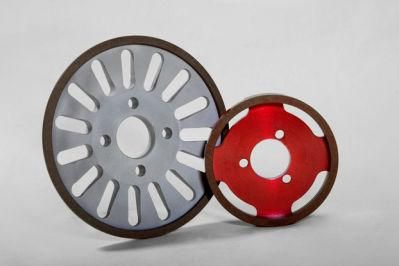

Vitrified bond double grinding discs  6A2   6A2T   2A2T
O.D.  350mm-1600mm  Grinder: Peter Wolters  AM STAHLI
Application: it is suitable for parts with high parallels and flatness requirement.
For the parts of bearings, gears, compressor, oil pump, automobile that must have parallel and flat surface area.
Material: brass, aluminum, cast iron, plastic, powdered metal and steels


Resin Bond CBN wheels are used for double-disc surface grinding of the inner and outer race surfaces of bearings, transmission gears, washers, tappet shims, compressor part, vane pump vanes and rotors, precision springs, etc. These are applicable to a wide range of materials, such as high-speed tool steel, die steel, bearing steel, carbon tool steel, spring steel, cast iron, sintered ferrous metal, etc. Our superior tech for this wide surface wheels is applied in CBN distribution, consistent bond qualify and dimensional accuracy.
Max OD: 500mm
Max Width of CBN section: 200mm.
