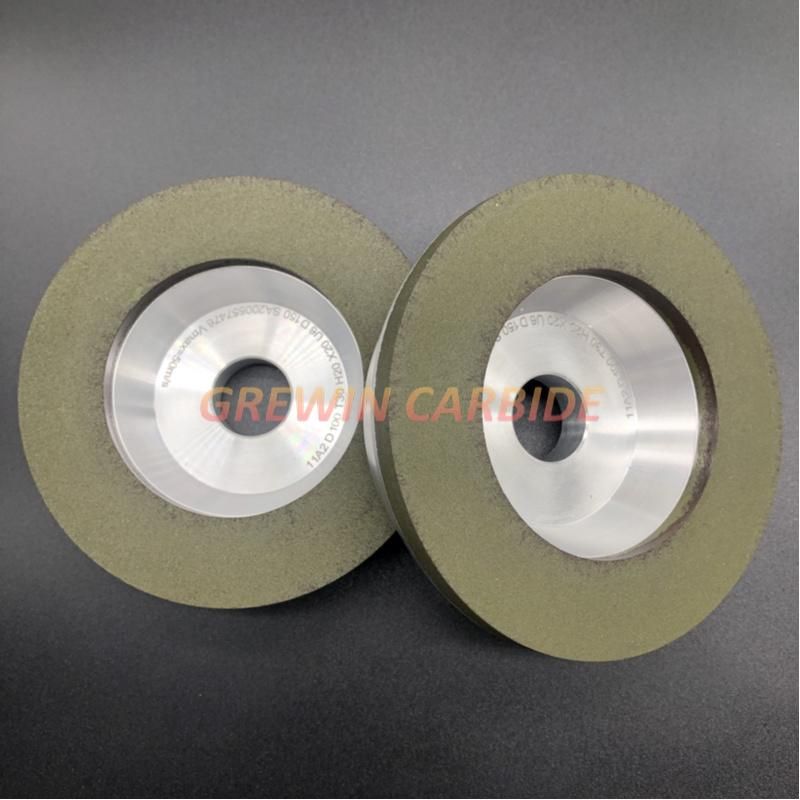

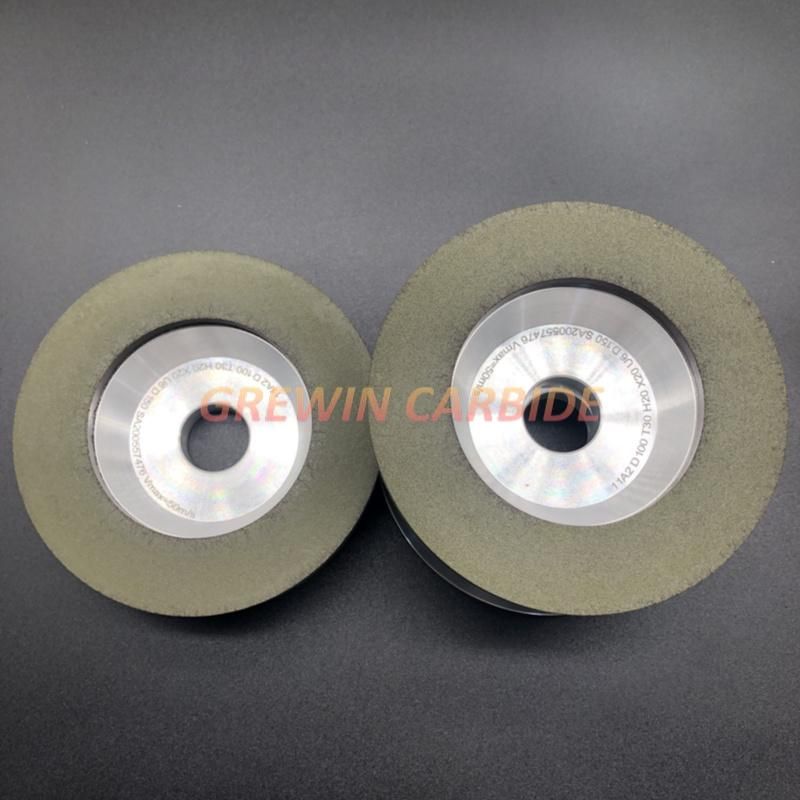

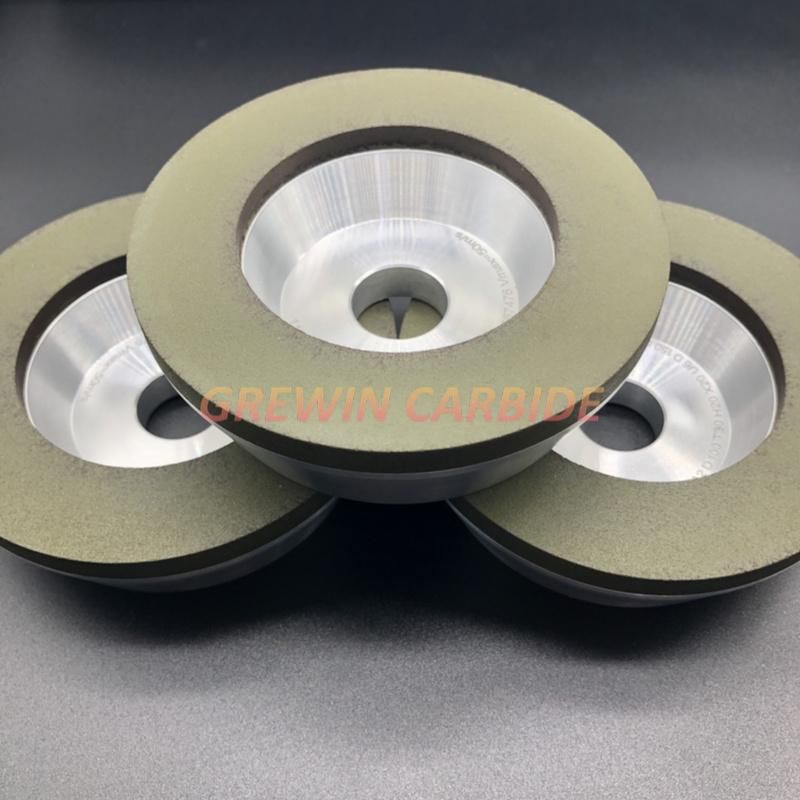

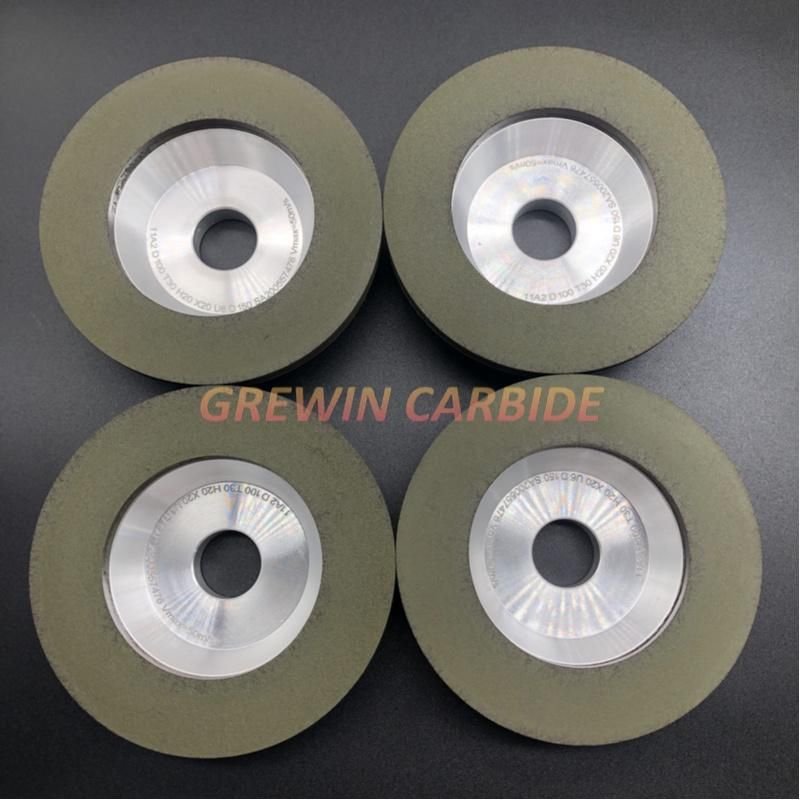

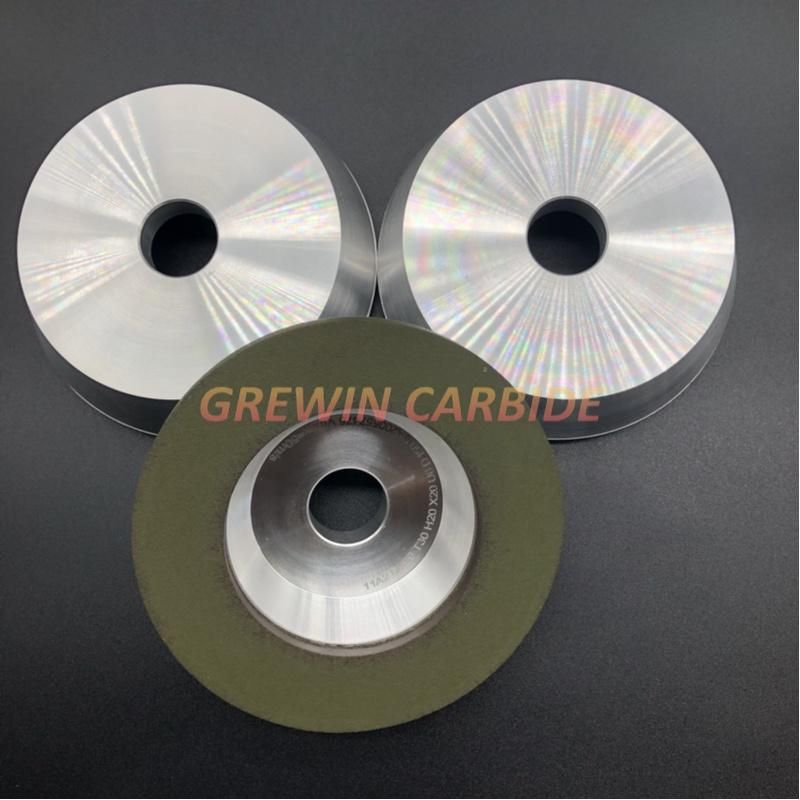

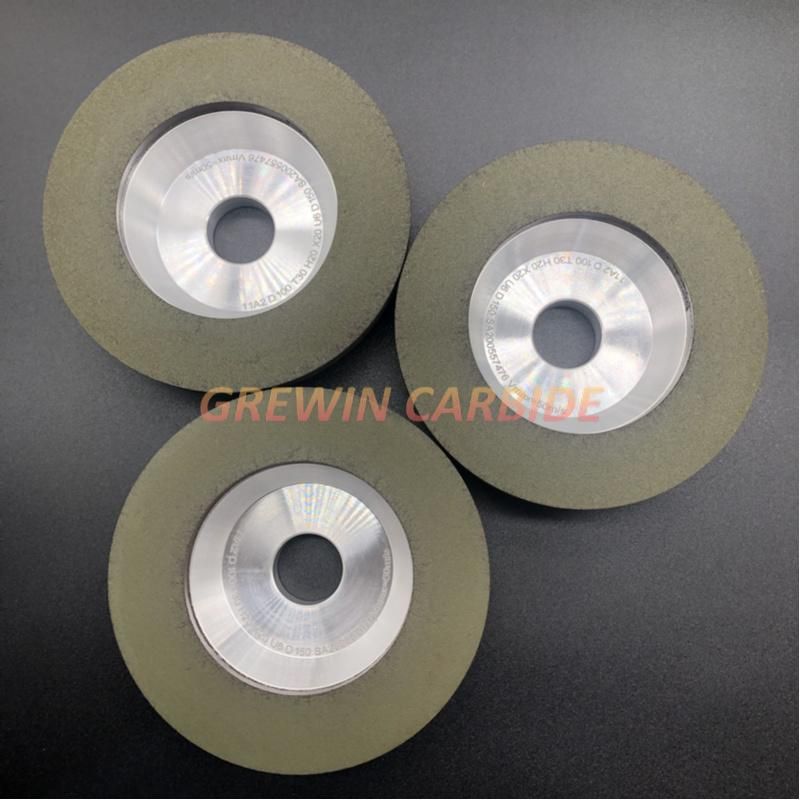

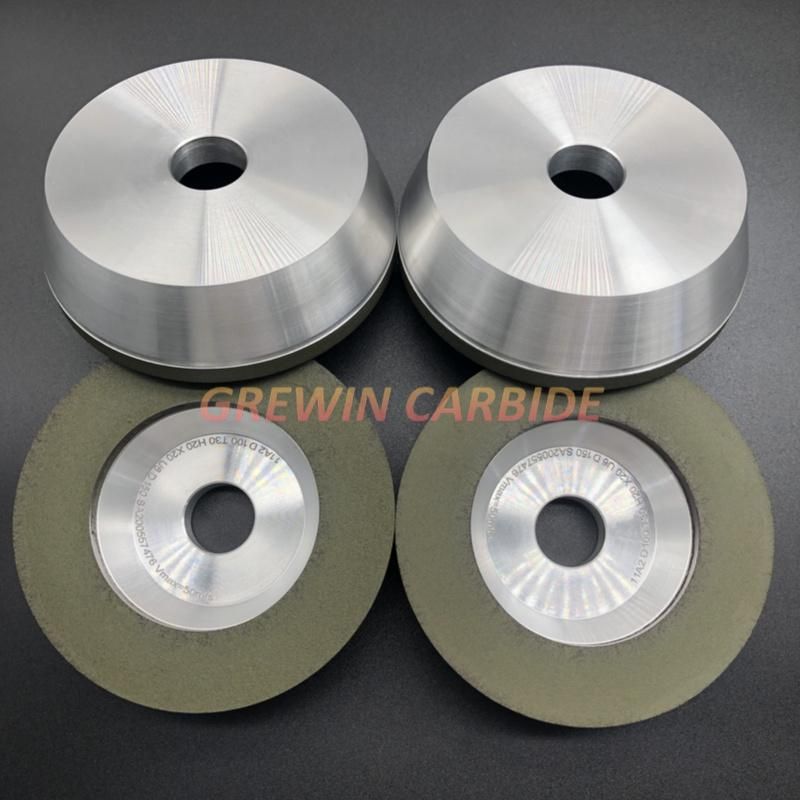

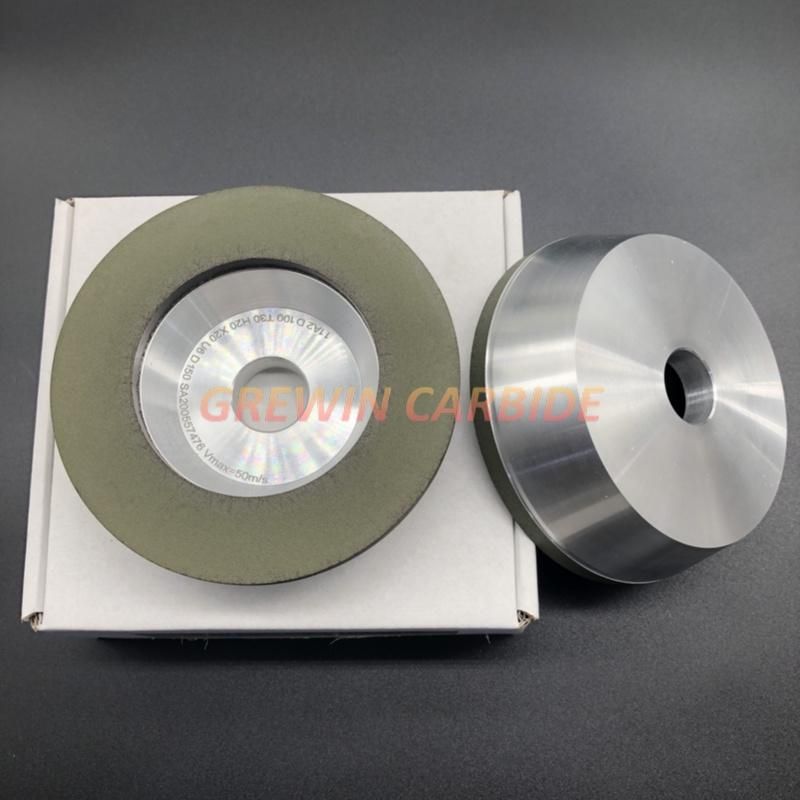

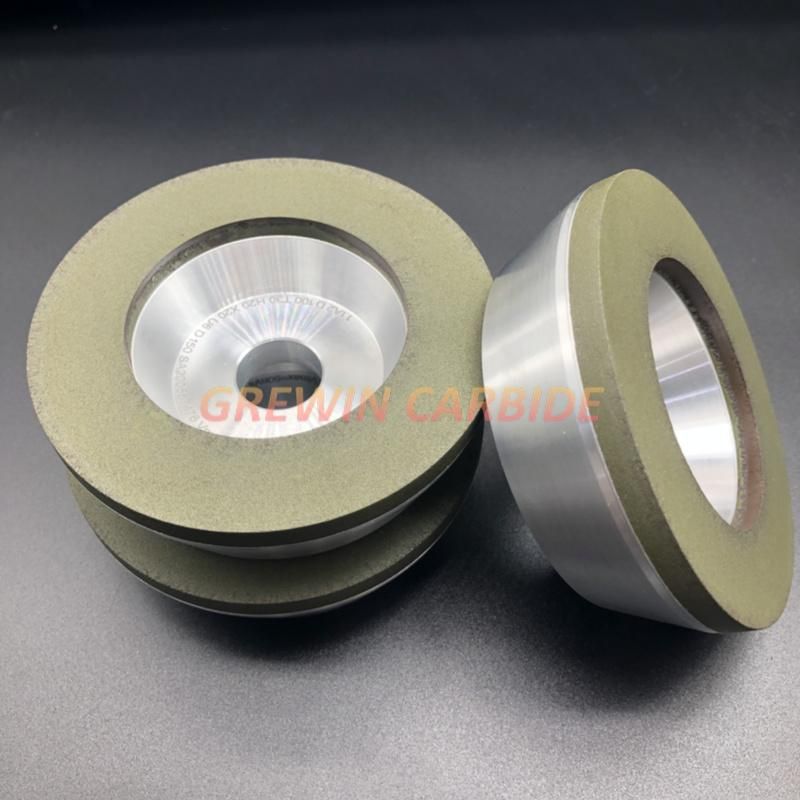

Grewin-Solid Carbide Metal CBN Abrasive Grinding Wheel
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Material:Diamond
- Abrasive:Normal Abrasive
- Shapes:Edge Shape
- Types:Surface Grinding Wheel
- Grain Size:240#
- Cylindricity:<0.5
Base Info
- Model NO.:1A1, 1V1, 1A1R, 4A2, 6A2, 9A3, 11V9, 12V9, 14A1
- Circular Degree:<0.05
- Technics:Sinter
- Working Style:Surface Grinding
- The Ranges:Diamond & CBN Wheels, Diamond & CBN Cutting Blades
- Working Fields:Tools, Molds, Bearing, Compressor, Ceramics and Ma
- Type:1A1, 1V1, 1A1r, 4A2, 6A2, 9A3, 11V9, 12V9, 14A1
- Semi Finish Grinding:Grit 140,170---230,270
- Bond:Resin,Vitrified,Metal, Electroformed Bond
- Concentration:50,75,100,125, etc...
- General Coarse Grinding:Grit 80,100---120,140
- Fine Grinding:Grit 270,325---325,400
- Polishing:Grit W40 to Fine Powder
- Delivery Time:15-20 Days
- Transport Package:Plastic&Carton
- Specification:100 X 4 X 16mm
- Trademark:GW
- Origin:Zhuzhou
- HS Code:68042210
- Production Capacity:50000PCS,Month
Description
Range of roughness (Ra) Unit:μmGrain size Resin bond (B) Metal bond (M) 80/100 ~100/120 --- 3.2---1.6 100/120~170/200 0.8---0.4 1.6---0.8 170/200~230/270 0.4---0.2 0.8---0.4 325/400~M12/22 0.2---0.1 M10/20~M3/6 0.1---0.05 M3/6~M0/1 0.05---0.025
3- Conventional Grinding Wheel Variety
* Shape code: 1A1
* Shape code: 2A2
* Shape code: 12C2
* Shape code: 6A2
* Shape code: 4B1, 1V1
* Shape code: 1F1, 1FF6
* Shape code: 11V9
* Shape code: 12A2, 12V9, 12V2
According to Customers their own processing products and the requirements of the different machines, choose different shape of grinding wheel; According to the requirements of the processing efficiency, choose different bonded grinding wheel; And according to the different roughness requirements, choose a different abrasive particle size.
While ordering the grinding wheel, please tell us the grinding wheel drawings, processing materials, processing accuracy requirements, processing roughness requirements, as well as the use of grinding wheel so that we can design and manufacture more suitable for your need of our grinding wheel products.
Welcome for your inquiry!
3- Conventional Grinding Wheel Variety
* Shape code: 1A1
- Parallel grinding wheel: suitable for all types of cylinder grinding, surface and end face grinding.
- Centerless grinding wheel: suitable for processing the outer circle of bar and thread. Divided into rough grinding, precision grinding and polishing.
* Shape code: 2A2
- Cup & ring type grinding wheel: applicable to the processing of various materials of the end surface grinding, can be processed two end face at the same time.
* Shape code: 12C2
- Abrasive disc: It is suitable for various materials' grinding and chamfer.
* Shape code: 6A2
- Cup-shaped grinding wheel: Suitable for all types of surface and end grinding.
* Shape code: 4B1, 1V1
- Single bevel wheel: suitable for precision grinding and notching.
* Shape code: 1F1, 1FF6
- Arc grinding wheel: suitable for various types of molding grinding.
* Shape code: 11V9
- Bowl-shaped grinding wheel: Suitable for end, flat and edge grinding of cutter.
* Shape code: 12A2, 12V9, 12V2
- Dish-shaped grinding wheel: Suitable for the cutting tool's end face, surface and the cutter edge grinding.
According to Customers their own processing products and the requirements of the different machines, choose different shape of grinding wheel; According to the requirements of the processing efficiency, choose different bonded grinding wheel; And according to the different roughness requirements, choose a different abrasive particle size.
While ordering the grinding wheel, please tell us the grinding wheel drawings, processing materials, processing accuracy requirements, processing roughness requirements, as well as the use of grinding wheel so that we can design and manufacture more suitable for your need of our grinding wheel products.
Welcome for your inquiry!
